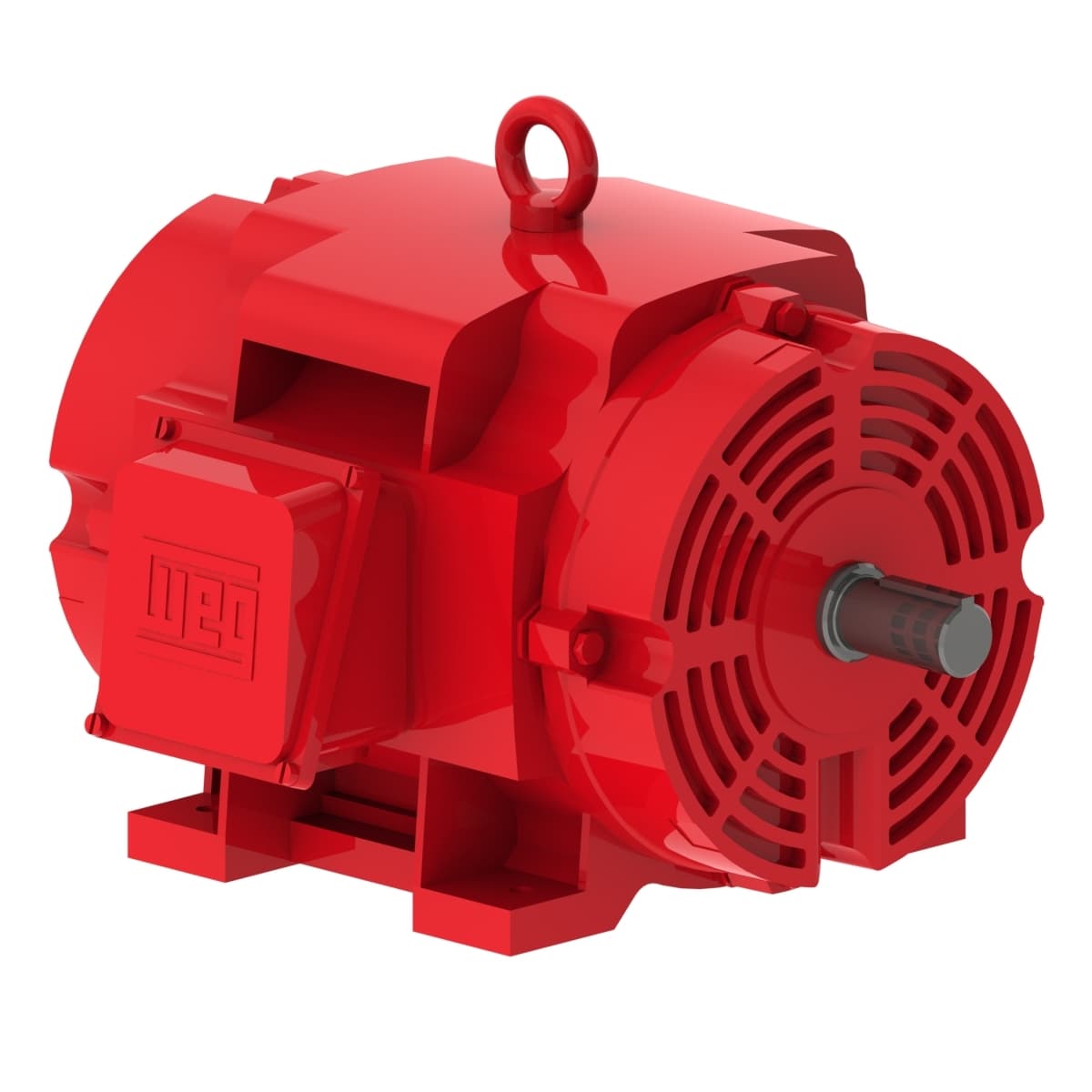

15018OP3GFP444TS WEG AC Motors
Part#:15018OP3GFP444TS
Manufacturer:WEG
Alt. Part#:7891327483132
Product Lifecycle:Active
Get a quick Quote!
ODP High Efficiency 150 HP 4P 444/5TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 15018OP3GFP444TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Number of Poles 4
- Breakdown torque 210 %
- Degree of Protection IP23
- Output rating 150 HP
- Output 150 HP (110 kW)
- Duty Cycle Cont.(S1)
- Noise level² 77.0 dB(A)
- Rated voltage 460 V
- Locked rotor time 34s (cold) 19s (hot)
- Starting Method Direct On Line
- Frame 444/5TS
- No load current 50.0 A
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Moment of inertia (J) 3.33 sq.ft.lb
- Standard NEMA MG-1
- Number of poles 4
- Rated current 171 A
- Rated torque 443 ft.lb
- Temperature rise 105 K
- Approx. weight³ 1200 lb
- Rated speed 1780 rpm
- Locked rotor torque 160 %
- Enclosure IC01 - ODP
- Voltage 460 V
- L. R. Amperes 1077 A
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Flange Without
- LRC 6.3x(Code G)
- Insulation Class F
- Mounting F-1
- Slip 1.11 %
- Design B
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 15018OP3GFP444TS Specs
1-year warranty
