15009ST3QIE447T-W22 WEG AC Motors
Part#:15009ST3QIE447T-W22
Manufacturer:WEG
Alt. Part#:7909018683850
Product Lifecycle:Active
Get a quick Quote!

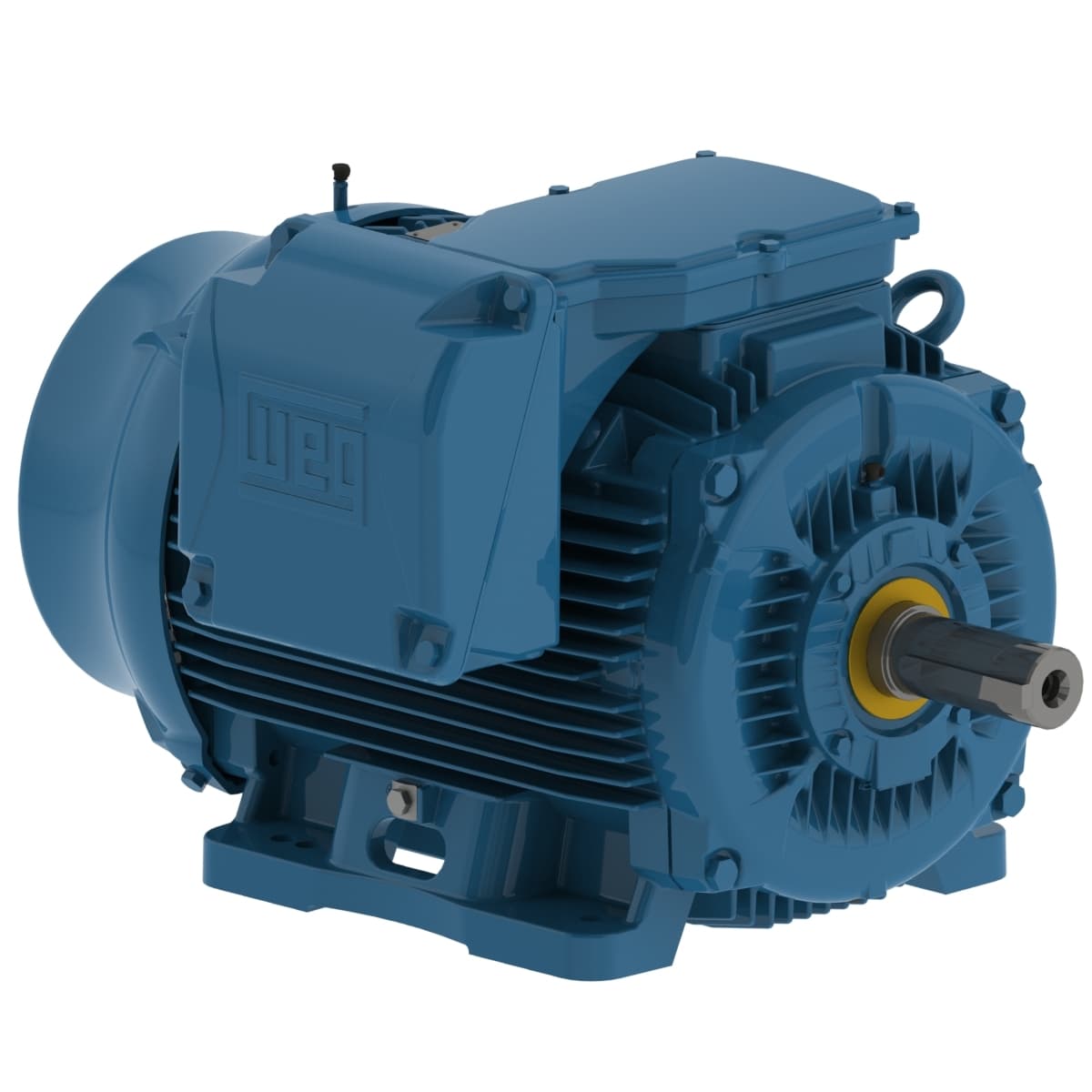

W22 IEEE 841 NEMA Premium Efficiency 150 HP 8P 445/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 15009ST3QIE447T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed890 rpm
- Number of Poles8 Pole
- Voltage460 V
- Flange TypeWithout
- Frame 445/7T
- Rated speed 890 rpm
- L. R. Amperes 1110 A
- Output 150 HP (110 kW)
- Number of Poles 8
- Rated current 185 A
- Frequency 60 Hz
- Locked rotor time 27s (cold) 15s (hot)
- No load current 75.0 A
- Design B
- Slip 1.11 %
- Breakdown torque 210 %
- Locked rotor torque 190 %
- Insulation Class F
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Temperature rise 80 K
- Rated voltage 460 V
- LRC 6.0x(Code G)
- Moment of inertia (J) 125 sq.ft.lb
- Rated torque 885 ft.lb
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Enclosure IC411 - TEFC
- Degree of Protection IP56
- Rotation¹ Both (CW and CCW)
- Service factor 1.15
- Mounting F-1
- Approx. weight³ 2206 lb
- Standard NEMA MG-1
- Voltage 460 V
- Synchronous speed 900 rpm
- Terminal box¹ Left position
- Number of poles 8
- Flange Without
- Output rating 150 HP
- Noise level² 63.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 15009ST3QIE447T-W22 Specs
1-year warranty
