150018WT3X6810-W60MV WEG AC Motors
Part#:150018WT3X6810-W60MV
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

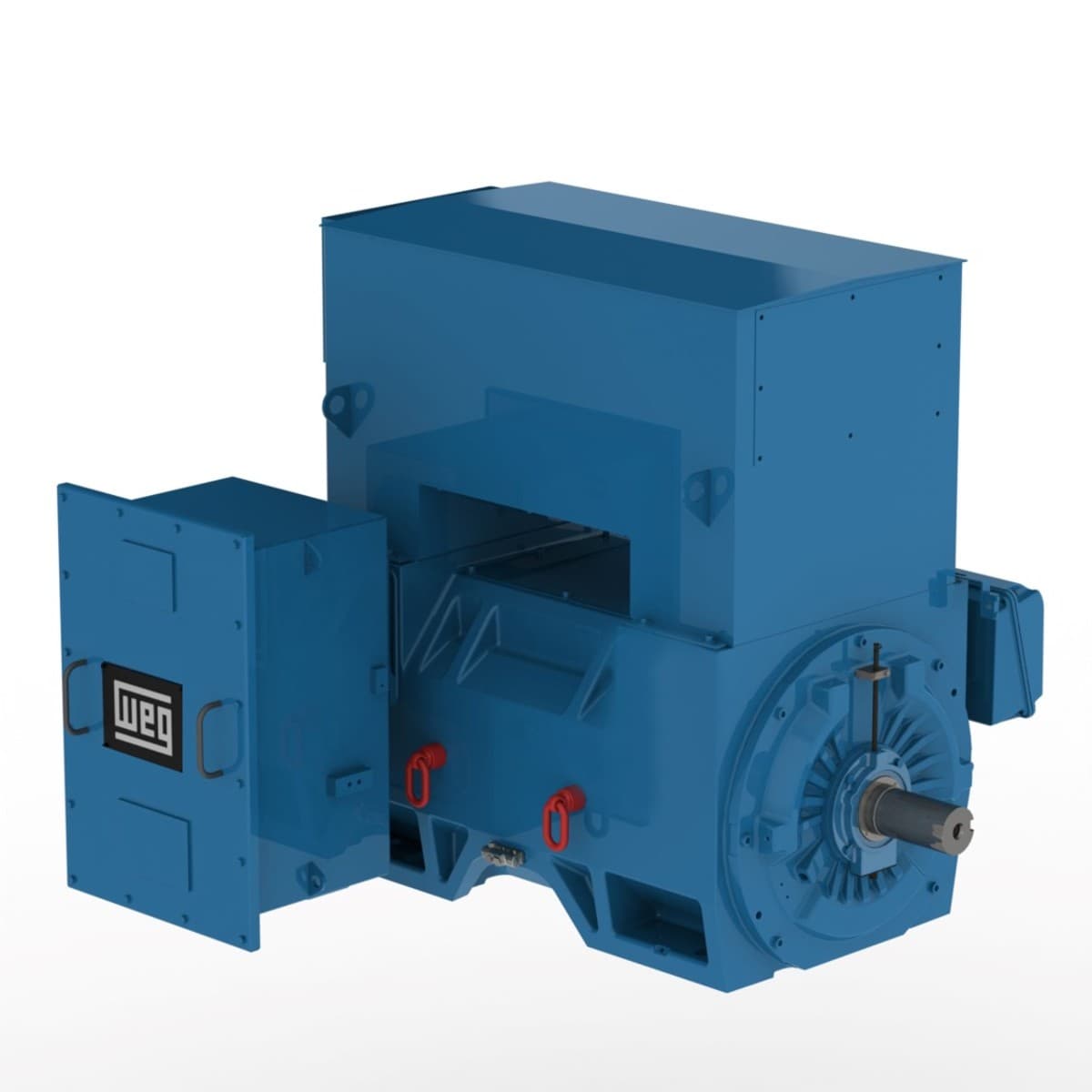

W60 Hazardous Area 1500 HP 4P 6810/11 3Ph 2300/4000 V 60 Hz - Foot-mounted
Check out the 150018WT3X6810-W60MV WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 1787 rpm
- Insulation Class F
- Mounting F-1
- Number of poles 4
- Output 1500 HP (1100 kW)
- No load current 135/77.6 A
- Noise level² 85.0 dB(A)
- Flange Without
- Slip 0.72 %
- Moment of inertia (J) 332 sq.ft.lb
- Degree of Protection IP24
- Rated current 351/202 A
- Breakdown torque 250 %
- Ambient temperature 0°C to +40°C
- Locked rotor torque 70 %
- Starting Method VFD
- Rated voltage 2300/4000 V
- Temperature rise 80 K
- Approx. weight³ 8710 lb
- Output rating 1500 HP
- Number of Poles 4
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Frame 6810/11
- Rated torque 4410 ft.lb
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Frequency 60 Hz
- LRC 6.5x(Code G)
- Service factor 1.15
- Voltage 2300/4000 V
- L. R. Amperes 2282/1313 A
- Locked rotor time 25s (cold) 14s (hot)
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 150018WT3X6810-W60MV Specs
