150036WT3X5810-W60MV2 WEG AC Motors
Part#:150036WT3X5810-W60MV2
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

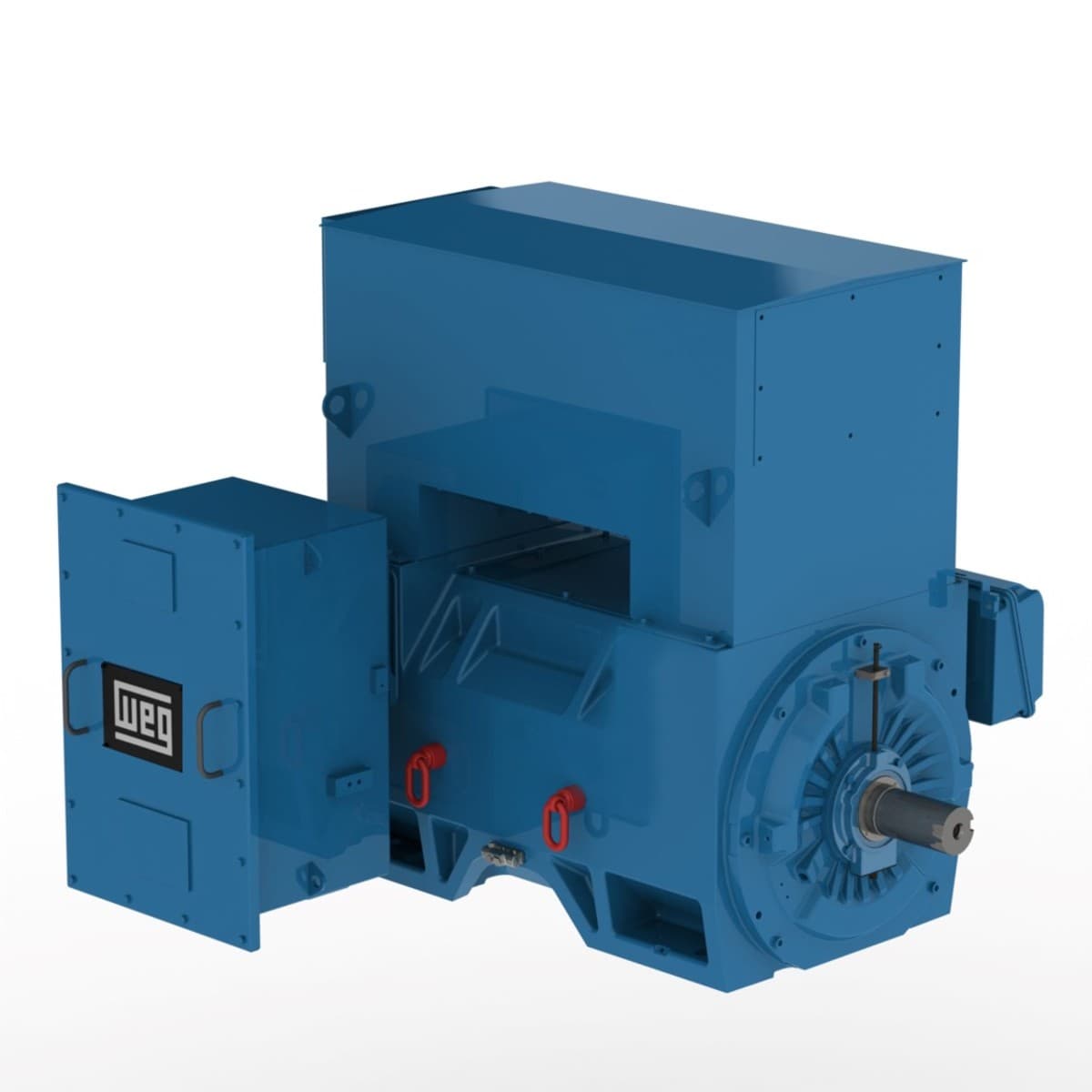

W60 Hazardous Area 1500 HP 2P L5810/11 3Ph 2300/4000 V 60 Hz - Foot-mounted
Check out the 150036WT3X5810-W60MV2 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 3575 rpm
- Locked rotor time 10s (cold) 6s (hot)
- Starting Method VFD
- Duty Cycle Cont.(S1)
- Rated current 269/155 A
- Insulation Class F
- Mounting F-1
- Synchronous speed 3600 rpm
- Frame L5810/11
- Breakdown torque 229 %
- Voltage 2300/4000 V
- L. R. Amperes 2152/1240 A
- No load current 67.0/38.5 A
- Service factor 1.15
- Noise level² 88.0 dB(A)
- Output rating 1500 HP
- Output 1250 HP (900 kW)
- Moment of inertia (J) 195 sq.ft.lb
- Ambient temperature 0°C to +40°C
- Terminal box¹ Left position
- Number of Poles 2
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated voltage 2300/4000 V
- Approx. weight³ 7166 lb
- Slip 0.69 %
- Locked rotor torque 60 %
- Altitude 1000 m.a.s.l.
- Rotation¹ CCW
- LRC 8.0x(Code H)
- Flange Without
- Frequency 60 Hz
- Rated torque 1840 ft.lb
- Degree of Protection IP24
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 150036WT3X5810-W60MV2 Specs
