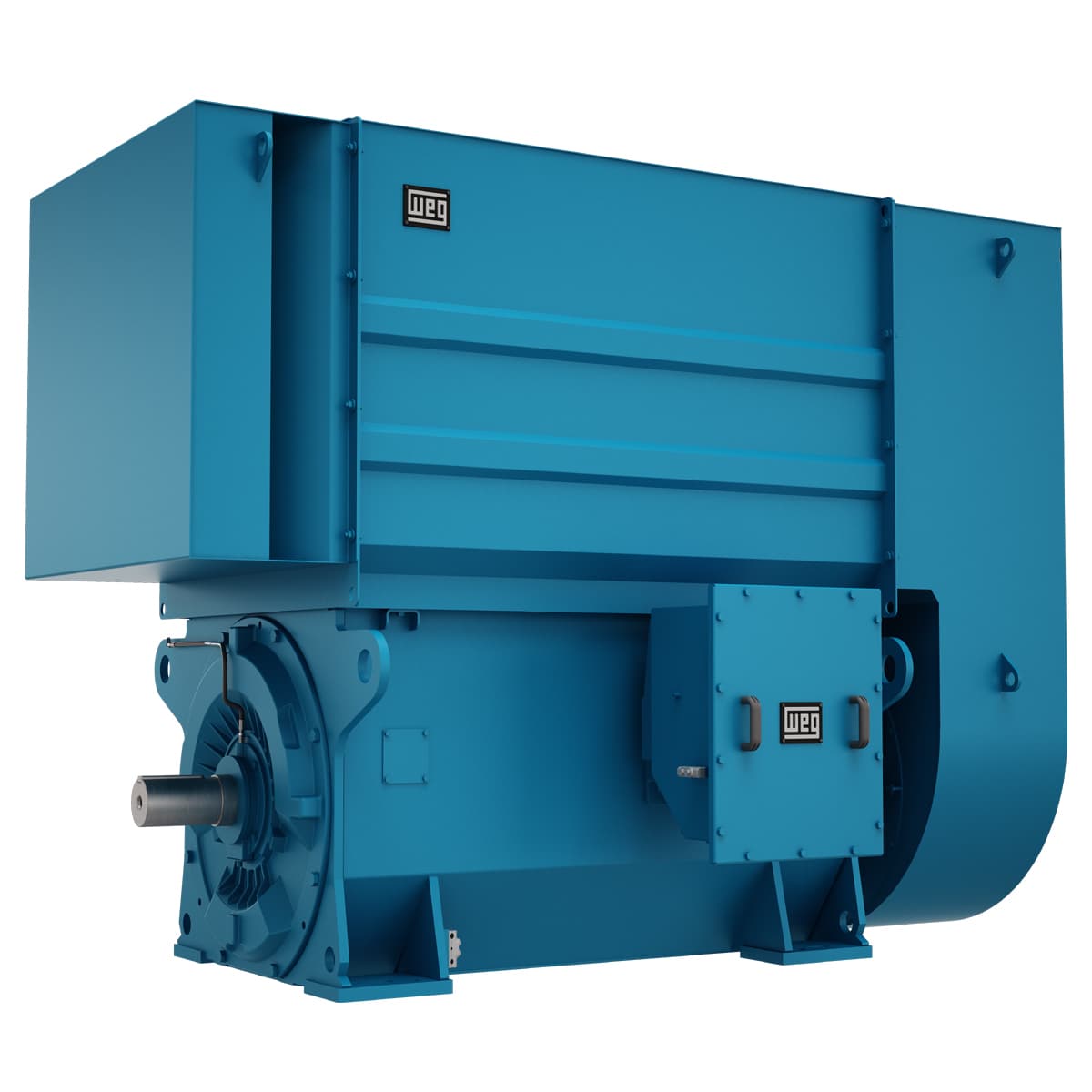

14960730 WEG AC Motors
Part#:14960730
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W60 1500 HP 2P 5810/11 3Ph 4160 V 60 Hz - Foot-mounted
Check out the 14960730 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 3561 rpm
- Rated torque 2210 ft.lb
- Degree of Protection IP24
- Terminal box¹ Left position
- Number of Poles 2
- Moment of inertia (J) 106 sq.ft.lb
- Approx. weight³ 6145 lb
- Slip 1.08 %
- Breakdown torque 250 %
- Rotation¹ CW
- Service factor 1.00
- Synchronous speed 3600 rpm
- Output 1500 HP (1100 kW)
- Rated current 195 A
- Temperature rise 80 K
- Standard NEMA MG-1
- Frame 5810/11
- Locked rotor time 16s (cold) 9s (hot)
- Noise level² 85.0 dB(A)
- Flange Without
- L. R. Amperes 1268 A
- LRC 6.5x(Code G)
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Rated voltage 4160 V
- Locked rotor torque 70 %
- Mounting F-1
- Number of poles 2
- No load current 56.5 A
- Duty Cycle Cont.(S1)
- Voltage 4160 V
- Frequency 60 Hz
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output rating 1500 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 14960730 Specs
