14960687 WEG AC Motors
Part#:14960687
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

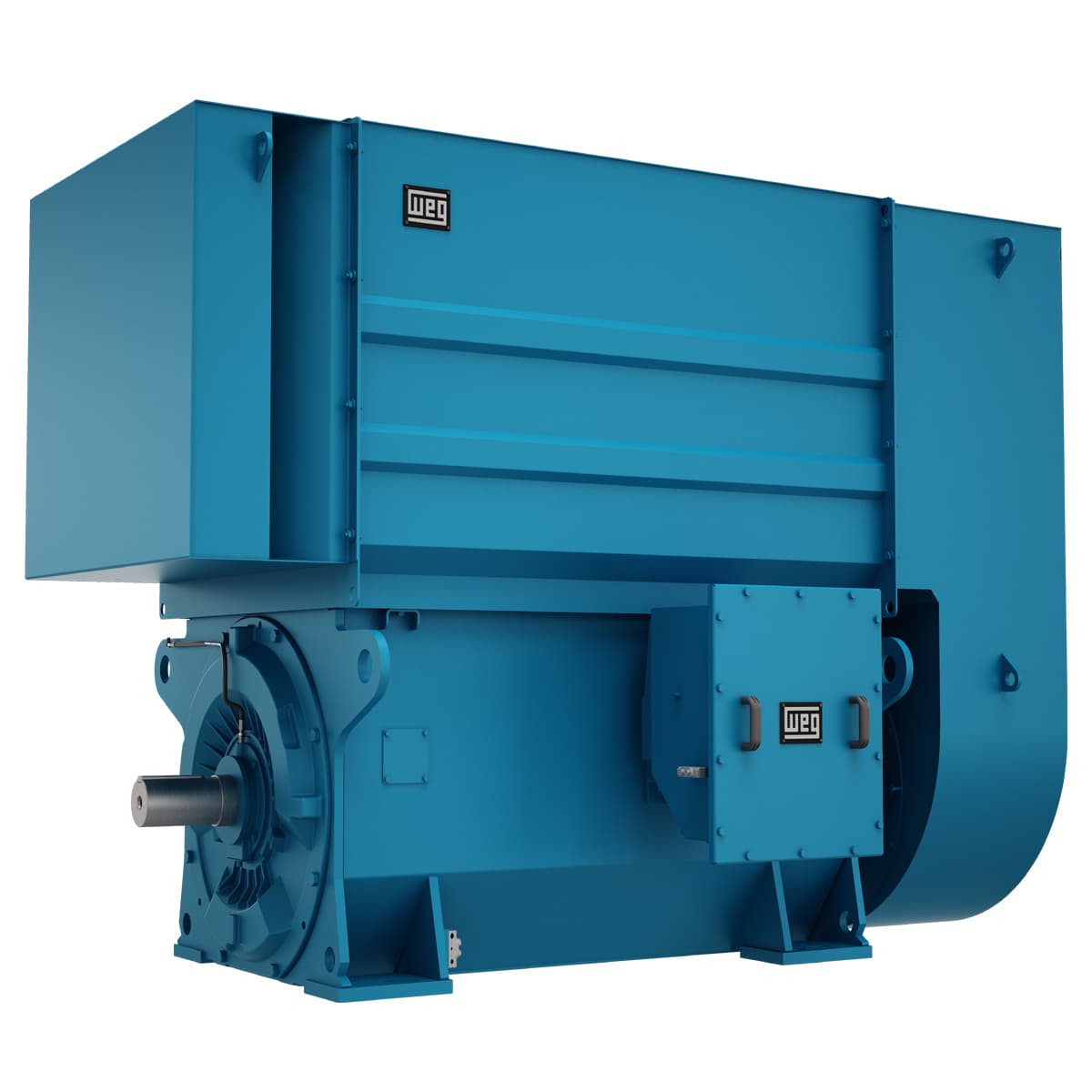

W60 1250 HP 2P 5810/11 3Ph 4160 V 60 Hz - Foot-mounted
Check out the 14960687 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 3564 rpm
- Service factor 1.00
- Mounting F-1
- No load current 42.9 A
- Breakdown torque 250 %
- Rotation¹ CW
- Synchronous speed 3600 rpm
- Rated voltage 4160 V
- Duty Cycle Cont.(S1)
- Locked rotor torque 70 %
- Output rating 1250 HP
- Frequency 60 Hz
- Altitude 1000 m.a.s.l.
- Approx. weight³ 5821 lb
- Standard NEMA MG-1
- Slip 1.00 %
- Ambient temperature -20°C to +40°C
- Temperature rise 80 K
- Frame 5810/11
- LRC 6.5x(Code G)
- Noise level² 85.0 dB(A)
- Flange Without
- Number of Poles 2
- Insulation Class F
- Degree of Protection IP24
- Terminal box¹ Left position
- Rated current 163 A
- Locked rotor time 19s (cold) 11s (hot)
- Rated torque 1840 ft.lb
- L. R. Amperes 1060 A
- Moment of inertia (J) 91.7 sq.ft.lb
- Voltage 4160 V
- Output 1250 HP (900 kW)
- Starting Method Direct On Line
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
