14960842 WEG AC Motors
Part#:14960842
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

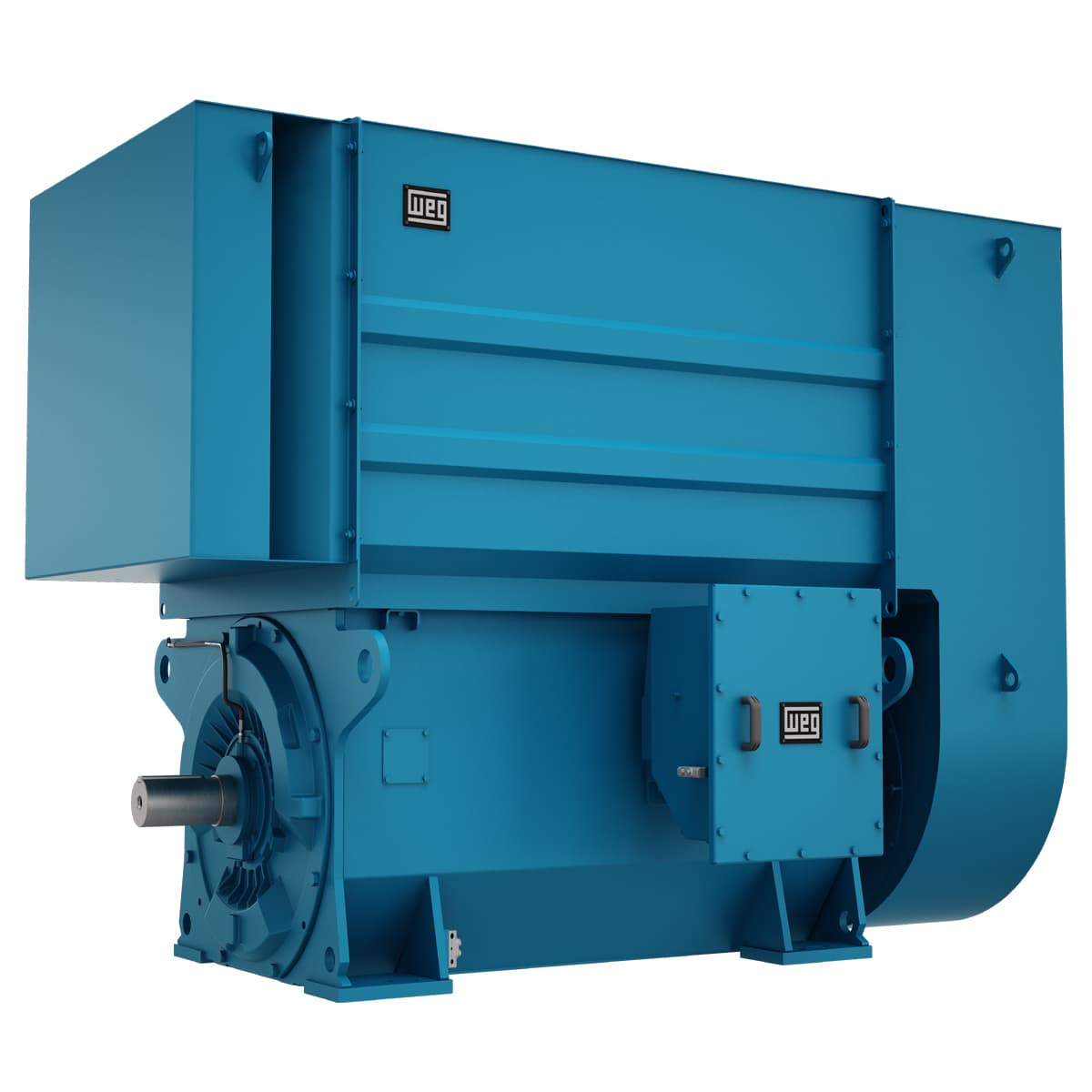

W60 1100 HP 4P 5810/11 3Ph 4160 V 60 Hz - Foot-mounted
Check out the 14960842 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 1.11 %
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Rated current 137 A
- Breakdown torque 229 %
- Noise level² 81.0 dB(A)
- Frame 5810/11
- Rated torque 3250 ft.lb
- Synchronous speed 1800 rpm
- Rated voltage 4160 V
- Starting Method Direct On Line
- Flange Without
- Rated speed 1780 rpm
- Locked rotor torque 70 %
- LRC 5.7x(Code F)
- Moment of inertia (J) 157 sq.ft.lb
- Mounting F-1
- Voltage 4160 V
- Output 1100 HP (800 kW)
- No load current 35.6 A
- Duty Cycle Cont.(S1)
- Approx. weight³ 5901 lb
- Number of poles 4
- L. R. Amperes 781 A
- Locked rotor time 37s (cold) 21s (hot)
- Degree of Protection IP24
- Terminal box¹ Left position
- Number of Poles 4
- Service factor 1.00
- Altitude 1000 m.a.s.l.
- Output rating 1100 HP
- Frequency 60 Hz
- Insulation Class F
- Rotation¹ CW
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 14960842 Specs
