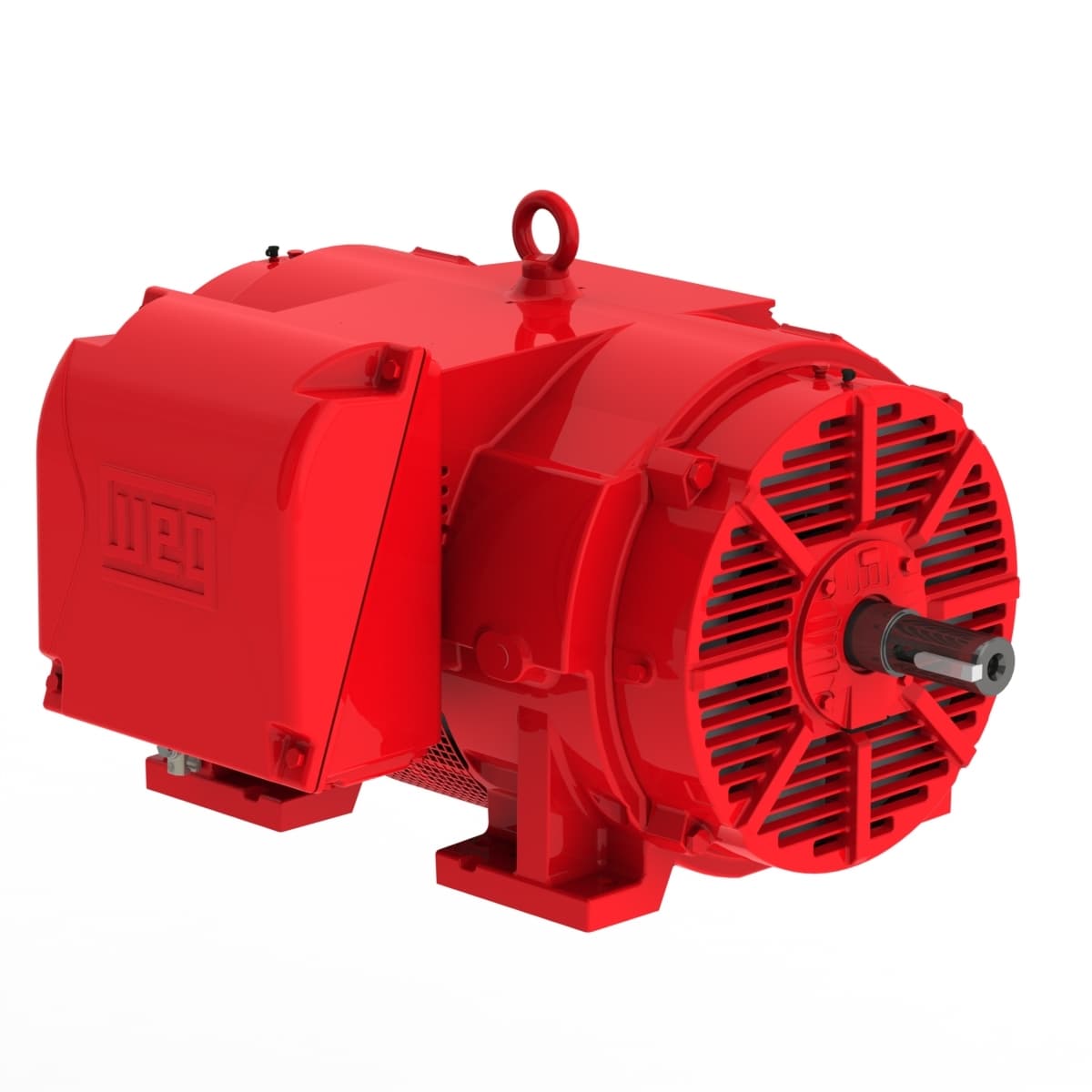

12530OP3OFP405TS-W40 WEG AC Motors
Part#:12530OP3OFP405TS-W40
Manufacturer:WEG
Alt. Part#:7909712315569
Product Lifecycle:Active
Get a quick Quote!
W40 High Efficiency 125 HP 2P 404/5TS 3Ph 380-400-415 V 50 Hz IC01 - ODP - Foot-mounted
Check out the 12530OP3OFP405TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed2949 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Rated current 162 A
- Moment of inertia (J) 12.0 sq.ft.lb
- Ambient temperature -20°C to +50°C
- Flange Without
- Rated voltage 380 V
- Starting Method Direct On Line
- Approx. weight³ 981 lb
- Frequency 50 Hz
- Locked rotor torque 240 %
- Service factor 1.15
- Mounting F-1
- Output rating 125 HP
- Rated speed 2949 rpm
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Number of Poles 2
- LRC 6.5x(Code F)
- Rotation¹ Both (CW and CCW)
- No load current 29.0 A
- Locked rotor time 43s (cold) 24s (hot)
- Degree of Protection IP23
- Frame 404/5TS
- Breakdown torque 200 %
- Enclosure IC01 - ODP
- Synchronous speed 3000 rpm
- Output 125 HP
- Temperature rise 70 K
- Number of poles 2
- Slip 1.70 %
- Design B
- Voltage 380-400-415 V
- L. R. Amperes 1053 A
- Rated torque 223 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
