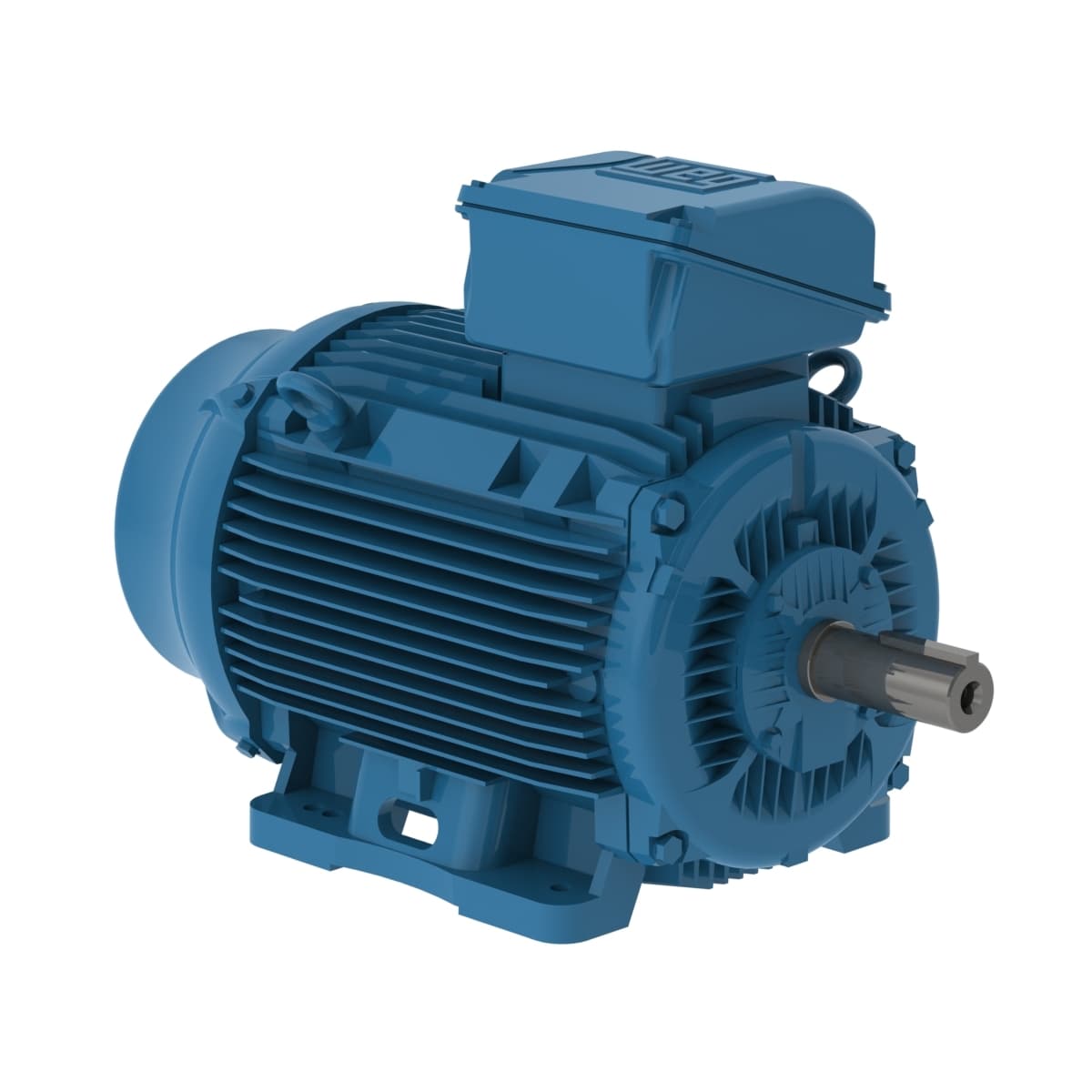

12536ET3E444TSF3-W22 WEG AC Motors
Part#:12536ET3E444TSF3-W22
Manufacturer:WEG
Alt. Part#:7909322678887
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 125 HP 2P 444/5TS 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 12536ET3E444TSF3-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- L. R. Amperes 1769/884 A
- Service factor 1.15
- Noise level² 81.0 dB(A)
- Output rating 125 HP
- Rated speed 3570 rpm
- Locked rotor torque 200 %
- Mounting F-3
- Frame 444/5TS
- Rated torque 184 ft.lb
- Rotation¹ Both (CW and CCW)
- Design B
- Degree of Protection IP55
- Voltage 230/460//380 V
- Breakdown torque 250 %
- Temperature rise 80 K
- Rated voltage 230/460 V
- Moment of inertia (J) 33.5 sq.ft.lb
- Starting Method Direct On Line
- Frequency 60 Hz
- Standard NEMA MG-1
- Locked rotor time 52s (cold) 29s (hot)
- No load current 68.0/34.0 A
- Insulation Class F
- Approx. weight³ 1646 lb
- Rated current 268/134 A
- Duty Cycle Cont.(S1)
- Terminal box¹ Top
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Slip 0.83 %
- LRC 6.6x(Code G)
- Ambient temperature -20°C to +40°C
- Output 125 HP
- Number of poles 2
- Number of Poles 2
- Enclosure IC411 - TEFC
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12536ET3E444TSF3-W22 Specs
1-year warranty
