12536ST3QIE444TS-W22 WEG AC Motors
Part#:12536ST3QIE444TS-W22
Manufacturer:WEG
Alt. Part#:7891327133181
Product Lifecycle:Active
Get a quick Quote!

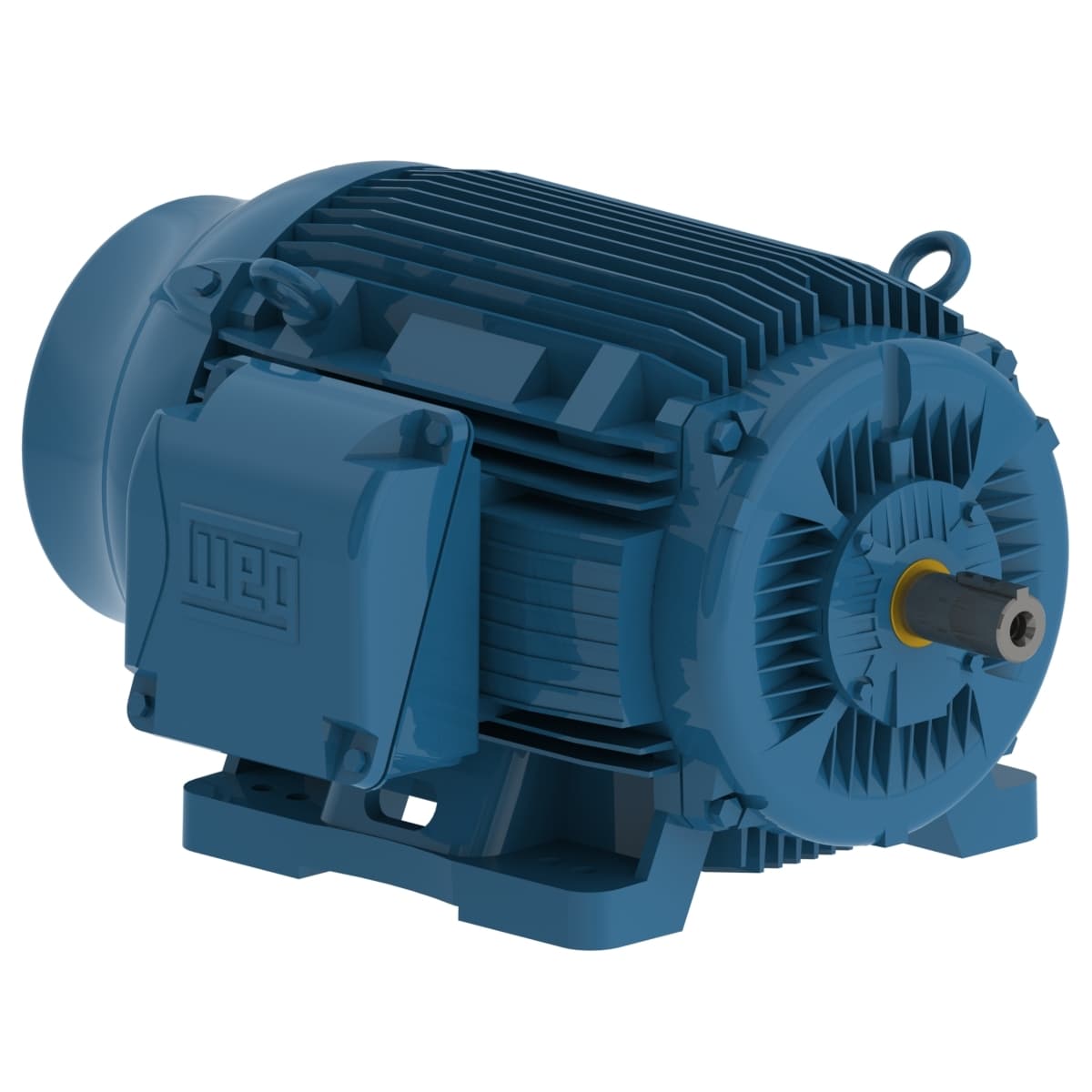

W22 IEEE 841 NEMA Premium Efficiency 125 HP 2P 444/5TS 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12536ST3QIE444TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Frame 444/5TS
- Slip 0.83 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Rated voltage 460 V
- Output 125 HP
- Starting Method Direct On Line
- Number of poles 2
- Frequency 60 Hz
- Locked rotor time 52s (cold) 29s (hot)
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Rated current 134 A
- Number of Poles 2
- Moment of inertia (J) 33.5 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- LRC 6.6x(Code G)
- Rated speed 3570 rpm
- Noise level² 81.0 dB(A)
- L. R. Amperes 884 A
- No load current 34.0 A
- Duty Cycle Cont.(S1)
- Voltage 460 V
- Breakdown torque 250 %
- Insulation Class F
- Degree of Protection IP56
- Flange Without
- Rated torque 184 ft.lb
- Temperature rise 80 K
- Mounting F-1
- Output rating 125 HP
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Design B
- Approx. weight³ 1625 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
