12536OP3GFP404TS WEG AC Motors
Part#:12536OP3GFP404TS
Manufacturer:WEG
Alt. Part#:7909018238739
Product Lifecycle:Active
Get a quick Quote!

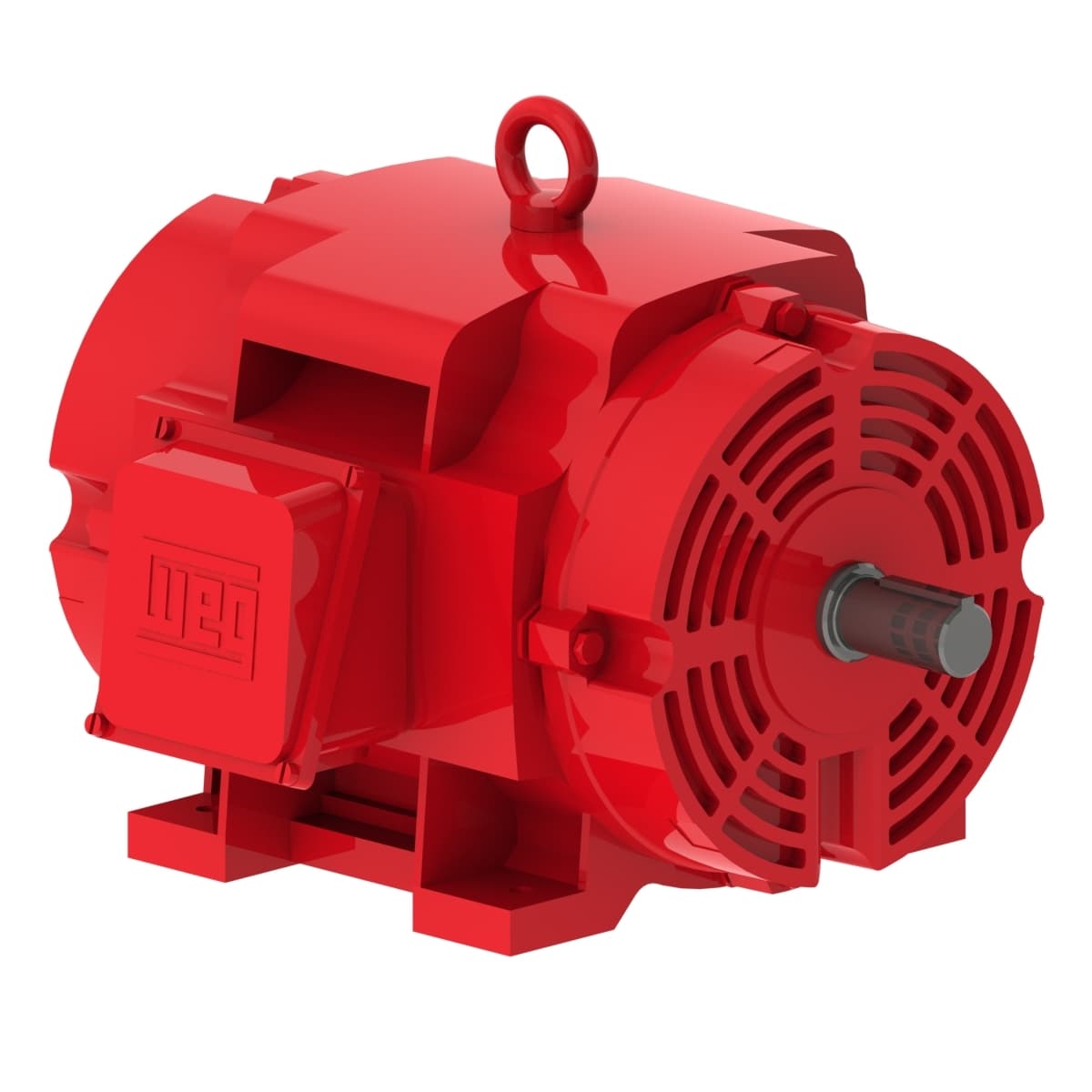

ODP High Efficiency 125 HP 2P 404/5TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12536OP3GFP404TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Rated speed 3560 rpm
- Rated torque 184 ft.lb
- Ambient temperature -20°C to +40°C
- Degree of Protection IP23
- Terminal box¹ Left position
- Rated current 137 A
- Locked rotor torque 190 %
- Starting Method Direct On Line
- Number of poles 2
- Frame 404/5TS
- LRC 6.3x(Code F)
- Insulation Class F
- Voltage 460 V
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Slip 1.11 %
- Locked rotor time 19s (cold) 11s (hot)
- Enclosure IC01 - ODP
- Synchronous speed 3600 rpm
- L. R. Amperes 863 A
- Temperature rise 80 K
- Approx. weight³ 880 lb
- No load current 36.0 A
- Service factor 1.15
- Standard NEMA MG-1
- Rated voltage 460 V
- Breakdown torque 229 %
- Altitude 1000 m.a.s.l.
- Flange Without
- Output 125 HP
- Design B
- Mounting F-1
- Output rating 125 HP
- Number of Poles 2
- Moment of inertia (J) 9.37 sq.ft.lb
- Noise level² 84.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12536OP3GFP404TS Specs
