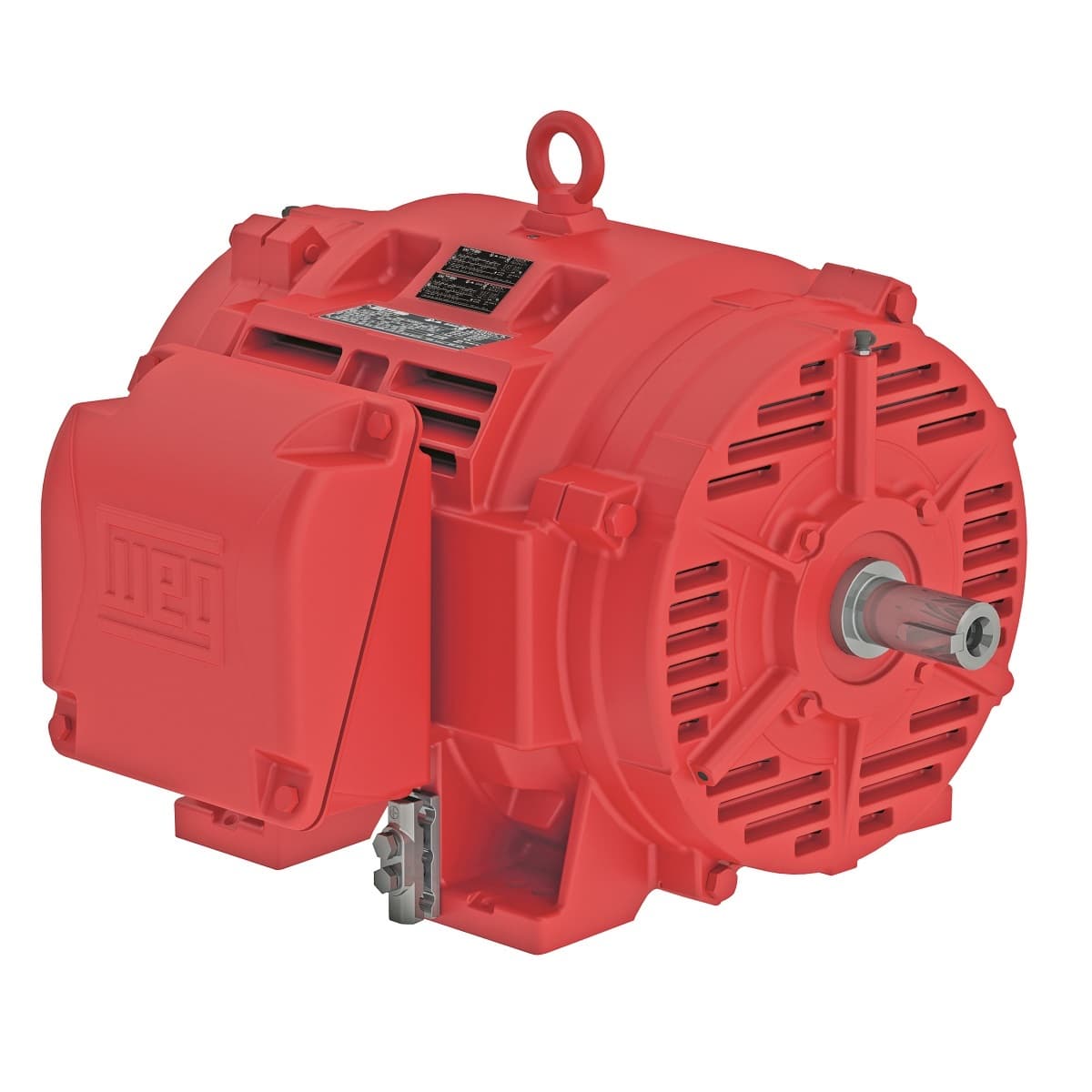

12536OP3EFP404TS-W40 WEG AC Motors
Part#:12536OP3EFP404TS-W40
Manufacturer:WEG
Alt. Part#:7909323929650
Product Lifecycle:Active
Get a quick Quote!
W40 High Efficiency 125 HP 2P 404/5TS 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 12536OP3EFP404TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeWithout
- Output 125 HP
- Frequency 60 Hz
- Locked rotor torque 180 %
- Service factor 1.15
- Synchronous speed 3600 rpm
- Slip 1.53 %
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Approx. weight³ 863 lb
- Frame 404/5TS
- Moment of inertia (J) 8.03 sq.ft.lb
- Breakdown torque 229 %
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- Locked rotor time 27s (cold) 15s (hot)
- Starting Method Direct On Line
- Noise level² 84.0 dB(A)
- Number of Poles 2
- Design B
- Mounting F-1
- Voltage 230/460//380 V
- Rated current 274/137 A
- Rated torque 185 ft.lb
- Degree of Protection IP23
- Terminal box¹ Left position
- Rated speed 3545 rpm
- Duty Cycle Cont.(S1)
- Flange Without
- L. R. Amperes 1808/904 A
- Temperature rise 80 K
- Output rating 125 HP
- LRC 6.6x(Code G)
- Ambient temperature -20°C to +40°C
- Number of poles 2
- No load current 60.0/30.0 A
- Enclosure IC01 - ODP
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12536OP3EFP404TS-W40 Specs
1-year warranty
