12530EP3OFP444TS-W22 WEG AC Motors
Part#:12530EP3OFP444TS-W22
Manufacturer:WEG
Alt. Part#:7909018754239
Product Lifecycle:Active
Get a quick Quote!

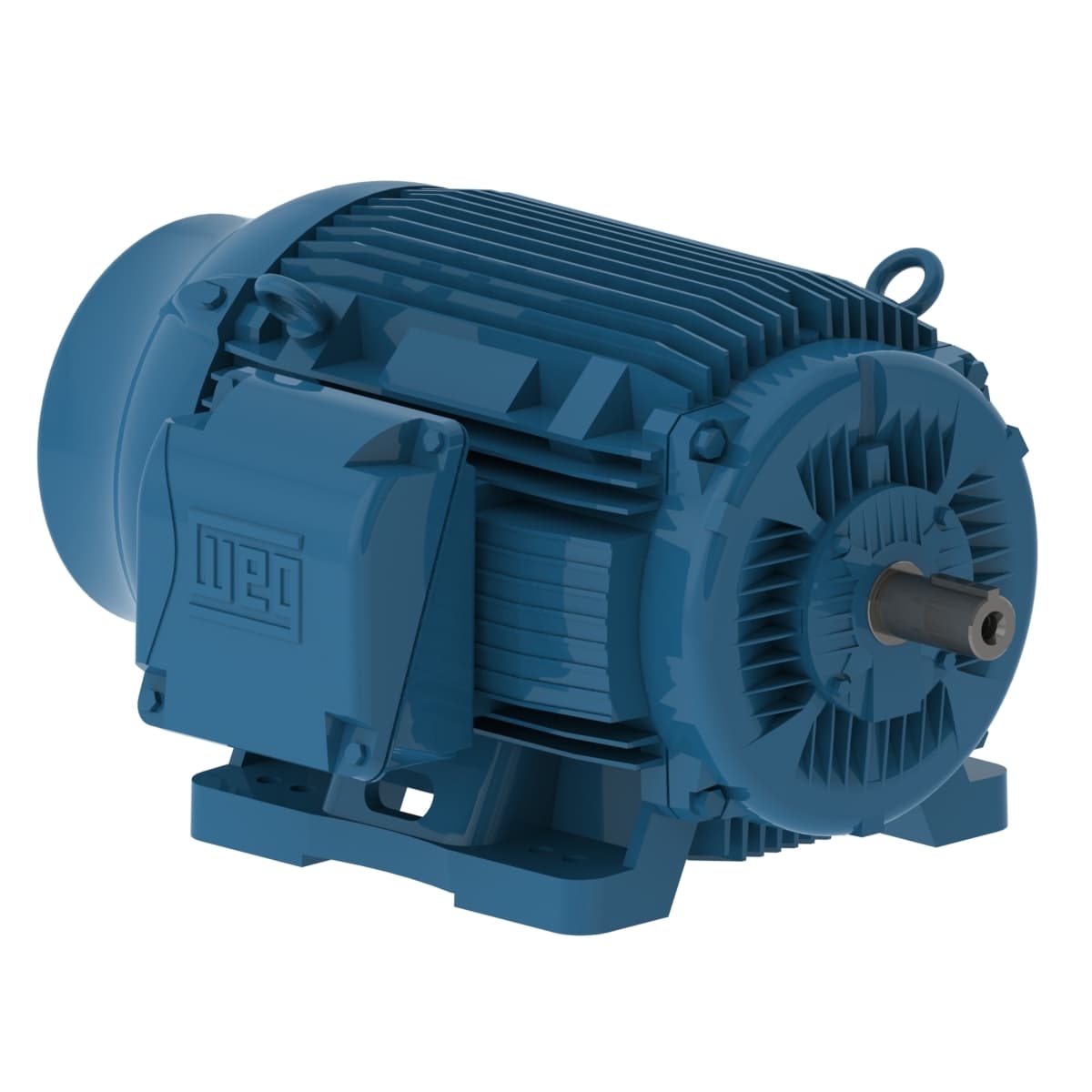

W22 High Efficiency 125 HP 2P 444/5TS 3Ph 380-400-415 V 50 Hz IC411 - TEFC - Foot-mounted
Check out the 12530EP3OFP444TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed2970 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Slip 1.00 %
- Service factor 1.15
- Number of Poles 2
- Design B
- Enclosure IC411 - TEFC
- Flange Without
- Rated current 168 A
- Moment of inertia (J) 22.8 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Output 125 HP
- Locked rotor time 45s (cold) 25s (hot)
- Duty Cycle Cont.(S1)
- Voltage 380-400-415 V
- Frequency 50 Hz
- Locked rotor torque 150 %
- Mounting F-1
- Rated speed 2970 rpm
- Rated torque 221 ft.lb
- Approx. weight³ 1486 lb
- Frame 444/5TS
- LRC 5.7x(Code F)
- Degree of Protection IP55
- Noise level² 79.0 dB(A)
- L. R. Amperes 958 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- No load current 36.0 A
- Temperature rise 80 K
- Number of poles 2
- Rated voltage 380 V
- Breakdown torque 240 %
- Altitude 1000 m.a.s.l.
- Synchronous speed 3000 rpm
- Starting Method Direct On Line
- Output rating 125 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12530EP3OFP444TS-W22 Specs
