11399358 WEG AC Motors
Part#:11399358
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

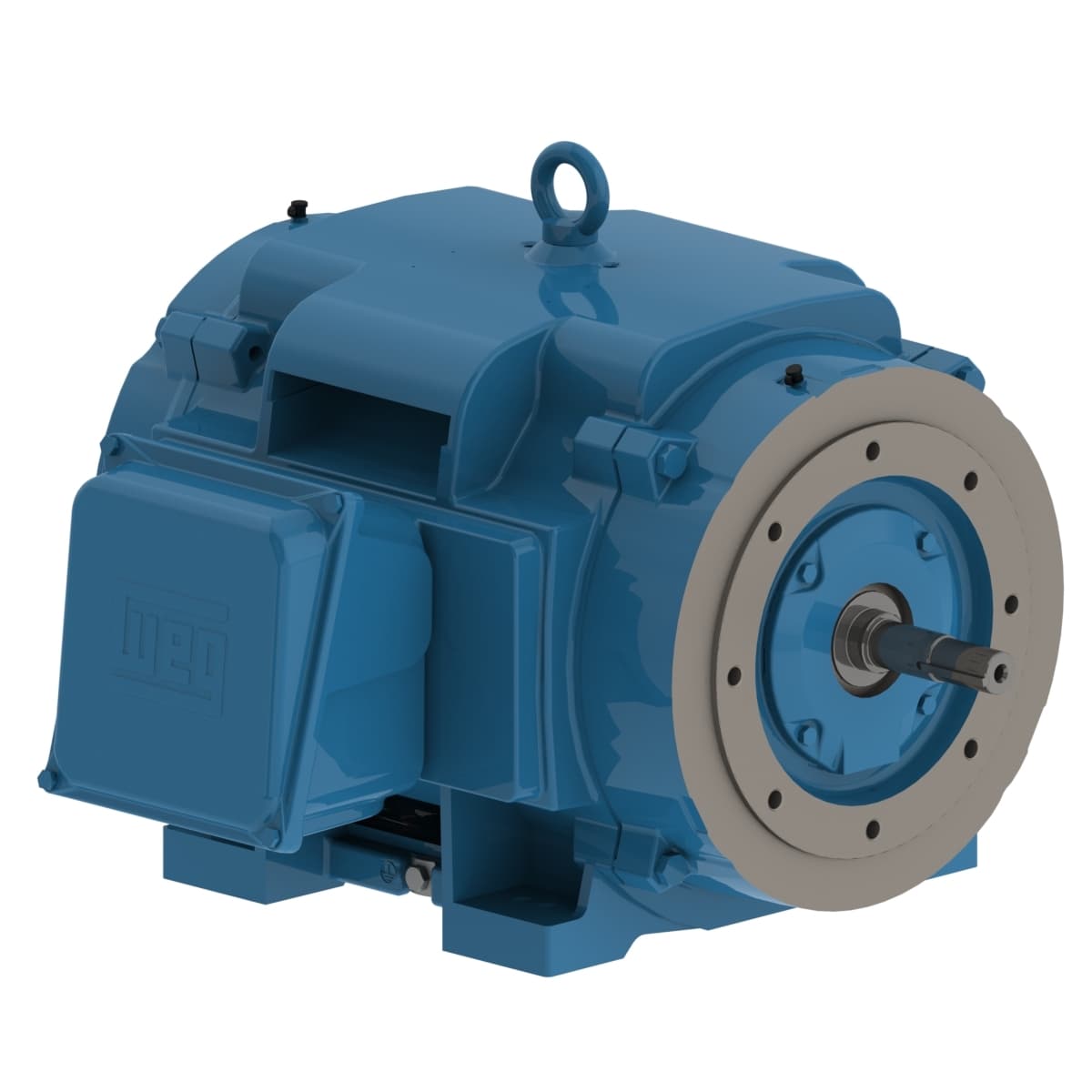

Close Coupled Pump High Efficiency 75 HP 2P 364/5JM 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 11399358 WEG price in the box on the right side or send a quick quote.
Product Details
- Slip 1.25 %
- Frequency 60 Hz
- No load current 56.0/28.0 A
- Service factor 1.15
- Mounting F-1
- Flange C
- Output 75 HP (55 kW)
- Rated torque 111 ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 75 HP
- Rated current 169/84.3 A
- Breakdown torque 270 %
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Frame 364/5JM
- Locked rotor torque 180 %
- Approx. weight³ 756 lb
- Number of Poles 2
- Design B
- Noise level² 80.0 dB(A)
- Terminal box¹ Left position
- L. R. Amperes 1062/531 A
- Moment of inertia (J) 6.81 sq.ft.lb
- Duty Cycle Cont.(S1)
- Rated voltage 230/460 V
- Locked rotor time 27s (cold) 15s (hot)
- Enclosure IC01 - ODP
- Voltage 230/460 V
- Rated speed 3555 rpm
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- LRC 6.3x(Code G)
- Starting Method Direct On Line
- Standard NEMA MG-1
- Insulation Class F
- Degree of Protection IP23
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11399358 Specs
1-year warranty
