11396927 WEG AC Motors
Part#:11396927
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

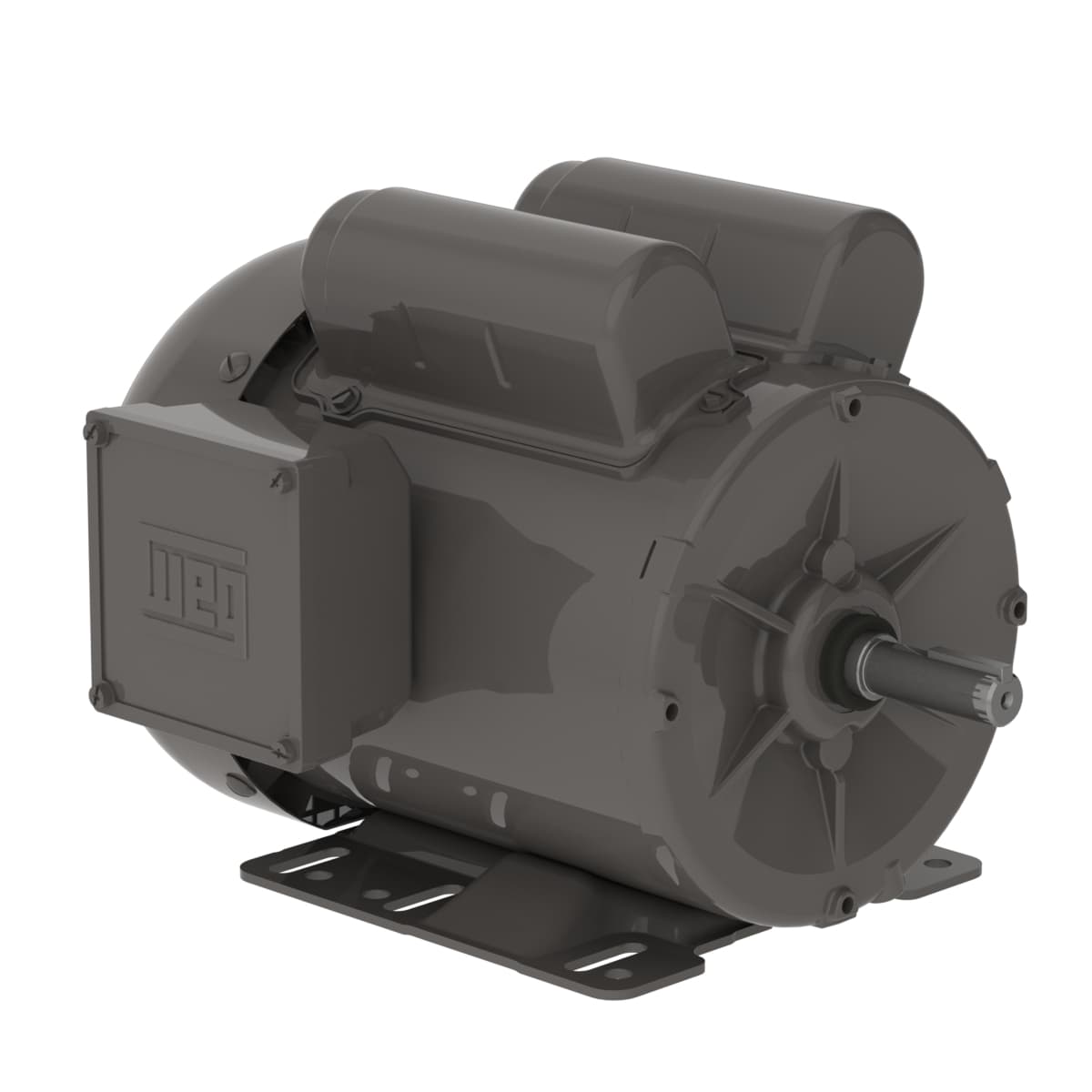

General 1.5 HP 4P G143/5T 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 11396927 WEG price in the box on the right side or send a quick quote.
Product Details
- Voltage 115/208-230 V
- Rated torque 4.50 ft.lb
- L. R. Amperes 113/56.5-56.5 A
- Locked rotor time 10s (cold) 6s (hot)
- Mounting F-1
- Output 1.5 HP (1.1 kW)
- Breakdown torque 260 %
- Rotation¹ Both (CW and CCW)
- Slip 2.78 %
- Moment of inertia (J) 0.1955 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Frequency 60 Hz
- Insulation Class B
- Degree of Protection IP55
- Output rating 1.5 HP
- Number of Poles 4
- Locked rotor torque 280 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 48.1 lb
- Rated voltage 115/208-230 V
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Rated current 17.4/8.70-8.70 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated speed 1750 rpm
- No load current 11.8/5.09-5.90 A
- Starting Method Direct On Line
- Number of poles 4
- Frame G143/5T
- LRC 6.5x(Code K)
- Service factor 1.15 (1.00 @ 208V)
- Enclosure IC411 - TEFC
- Flange Without
- Noise level² 55.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11396927 Specs
1-year warranty
