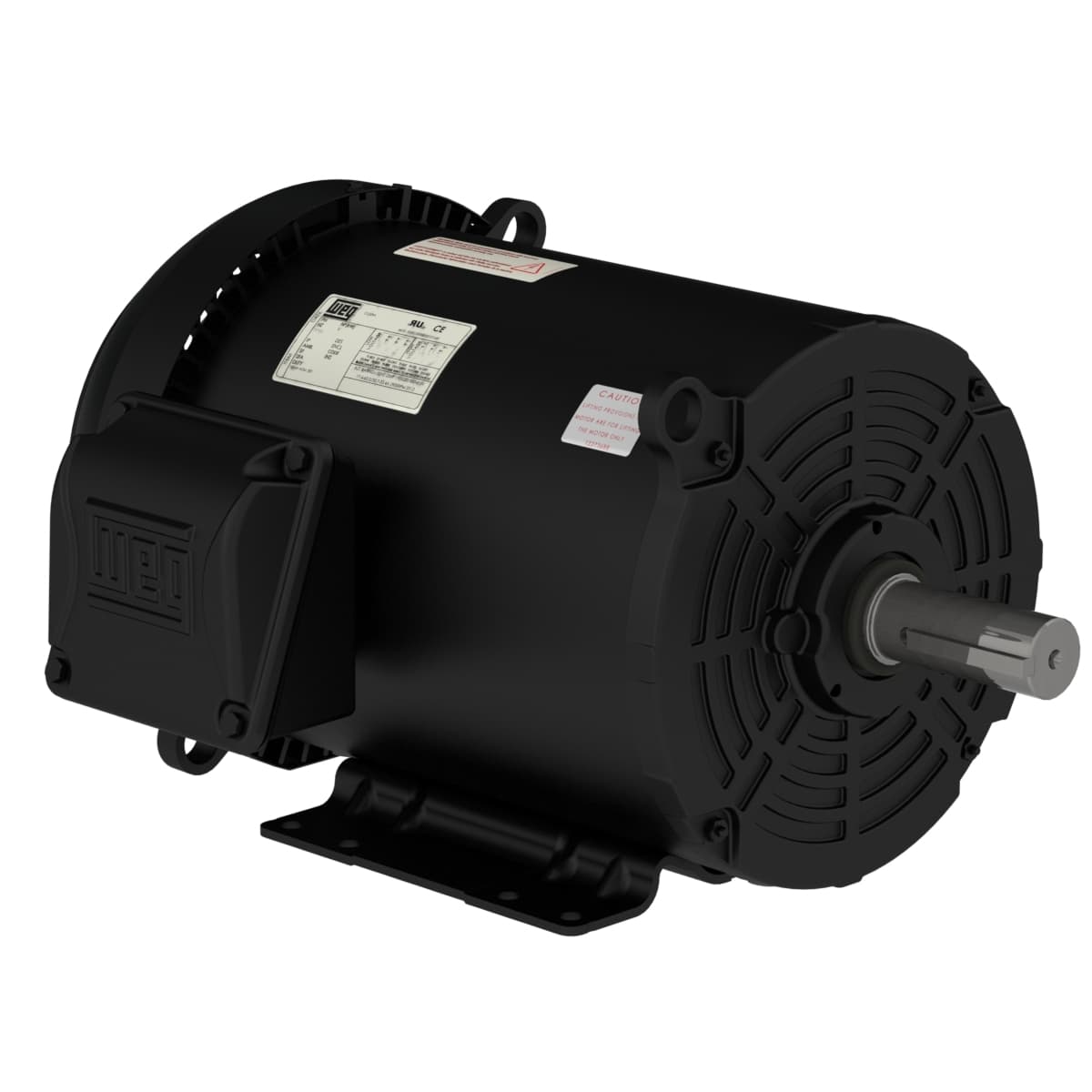

00718ET3E213T-S WEG AC Motors
Part#:00718ET3E213T-S
Manufacturer:WEG
Alt. Part#:7909158532322
Product Lifecycle:Active
In-stock parts: 2
Jun 19, 2025
Rolled Steel NEMA Premium Efficiency 7.5 HP 4P 213/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00718ET3E213T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frame 213/5T
- Design B
- Noise level² 60.0 dB(A)
- Rated voltage 230/460 V
- Moment of inertia (J) 0.9380 sq.ft.lb
- Duty Cycle Cont.(S1)
- Output rating 7.5 HP
- Frequency 60 Hz
- Locked rotor time 32s (cold) 18s (hot)
- Altitude 1000 m.a.s.l.
- Voltage 230/460//190-220/380-415 V
- Breakdown torque 300 %
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- No load current 8.81/4.41 A
- Ambient temperature -20°C to +40°C
- Flange Without
- Rated speed 1770 rpm
- LRC 7.3x(Code J)
- Temperature rise 80 K
- Mounting F-1
- Terminal box¹ Left position
- Slip 1.67 %
- Rated torque 22.3 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated current 18.4/9.18 A
- L. R. Amperes 134/67.0 A
- Enclosure IC411 - TEFC
- Number of poles 4
- Output 7.5 HP (5.5 kW)
- Insulation Class F
- Approx. weight³ 117 lb
- Number of Poles 4
- Locked rotor torque 260 %
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00718ET3E213T-S Specs
