00718EP3EHP213TYZ7F3 WEG AC Motors
Part#:00718EP3EHP213TYZ7F3
Manufacturer:WEG
Alt. Part#:7909322436340
Product Lifecycle:Active
Get a quick Quote!

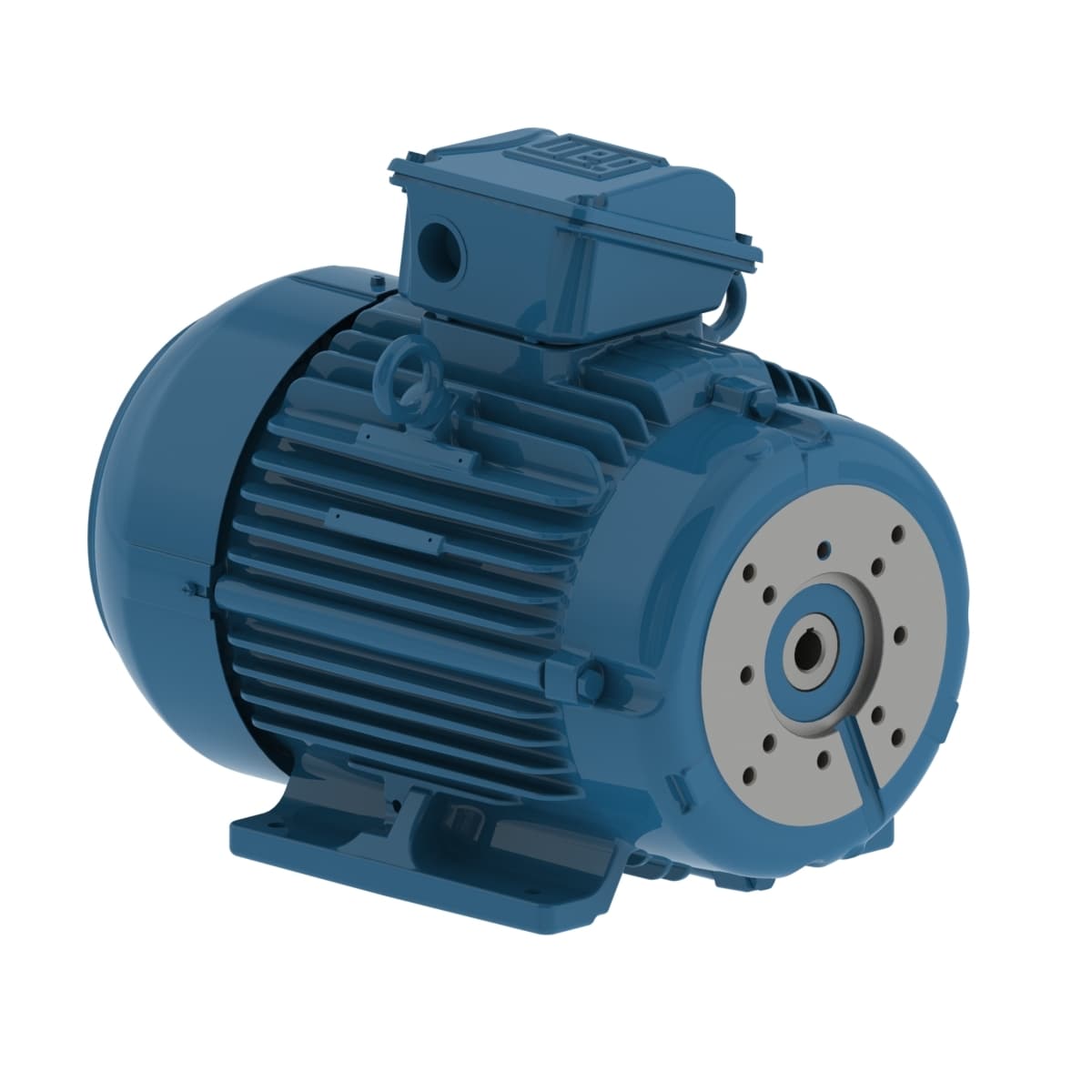

W22 High Efficiency 7.5 HP 4P 213TYZ 3Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00718EP3EHP213TYZ7F3 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage208-230/460 V
- Flange TypeSpecial
- Rated voltage 208-230/460 V
- Design A
- Enclosure IC411 - TEFC
- Voltage 208-230/460 V
- LRC 8.7x(Code M)
- Rated torque 22.2 ft.lb
- Rotation¹ Both (CW and CCW)
- Flange Special
- Rated speed 1775 rpm
- Insulation Class F
- Approx. weight³ 150 lb
- L. R. Amperes 209-189/94.8 A
- Temperature rise 80 K
- Starting Method Direct On Line
- Output 7.5 HP (5.5 kW)
- Breakdown torque 409 %
- Mounting F-3
- Synchronous speed 1800 rpm
- Slip 1.39 %
- Locked rotor torque 290 %
- Number of poles 4
- Rated current 24.0-21.7/10.9 A
- Moment of inertia (J) 1.17 sq.ft.lb
- Degree of Protection IP55
- Output rating 7.5 HP
- Frame 213TYZ
- Locked rotor time 25s (cold) 14s (hot)
- Ambient temperature -20°C to +40°C
- Terminal box¹ Top
- Number of Poles 4
- Duty Cycle S3
- Noise level² 58.0 dB(A)
- Frequency 60 Hz
- No load current 16.8-15.2/7.60 A
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00718EP3EHP213TYZ7F3 Specs
1-year warranty
