11390063 WEG AC Motors
Part#:11390063
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

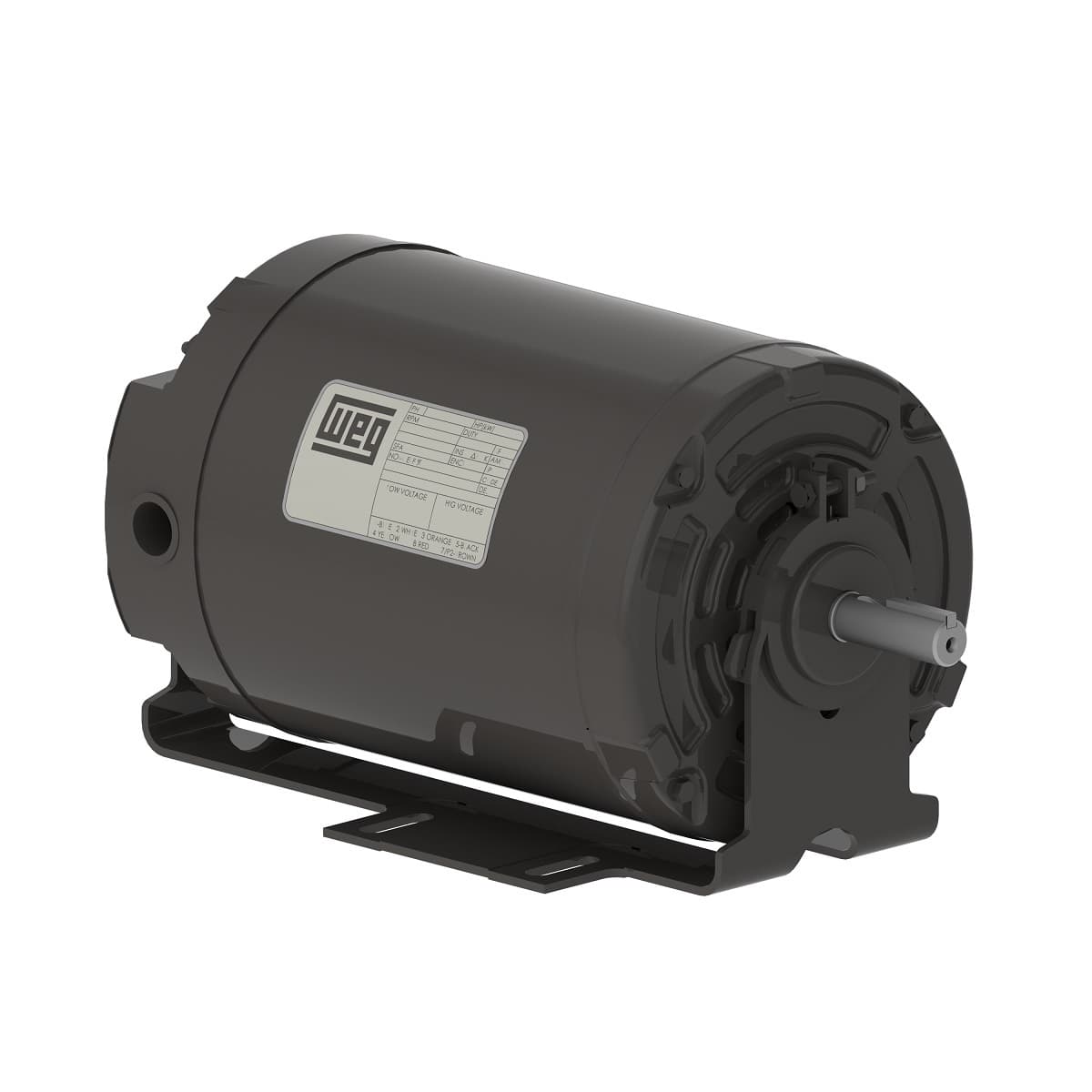

Motor Split Phase with Resilient Base 0.25 HP 4P B48Z 1Ph 115/208-230 V 60 Hz IC01 - ODP - Resilient base
Check out the 11390063 WEG price in the box on the right side or send a quick quote.
Product Details
- Output 0.25 HP (0.18 kW)
- Duty Cycle Cont.(S1)
- Number of poles 4
- Slip 3.61 %
- Rated torque 0.757 ft.lb
- Locked rotor time 10s (cold) 6s (hot)
- Rotation¹ Both (CW and CCW)
- Voltage 115/208-230 V
- Rated speed 1735 rpm
- Service factor 1.35 (1.00 @ 208V)
- Ambient temperature -20°C to +40°C
- Flange Without
- L. R. Amperes 32.2/15.4-16.1 A
- Temperature rise 80 K
- Enclosure IC01 - ODP
- Terminal box¹ Without Terminal Box
- Rated voltage 115/208-230 V
- Breakdown torque 270 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Frequency 60 Hz
- Insulation Class B
- Approx. weight³ 20.6 lb
- LRC 6.7x(Code R)
- Degree of Protection IP21
- Output rating 0.25 HP
- Number of Poles 4
- Moment of inertia (J) 0.0320 sq.ft.lb
- Mounting F-1
- Frame B48Z
- Altitude 1000 m.a.s.l.
- Rated current 4.80/2.30-2.40 A
- Locked rotor torque 190 %
- No load current 4.10/1.77-2.05 A
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11390063 Specs
