11396407 WEG AC Motors
Part#:11396407
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

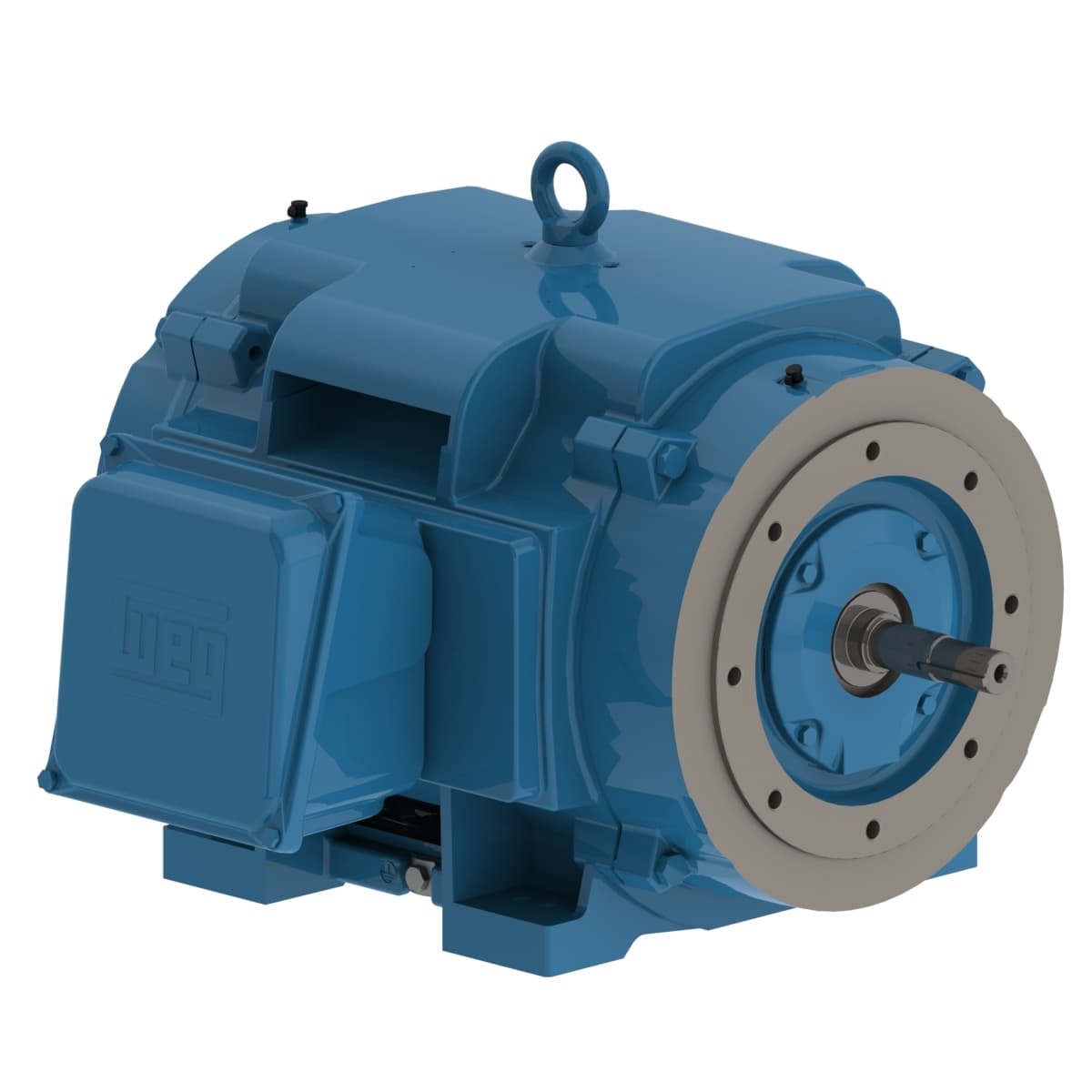

Close Coupled Pump High Efficiency 40 HP 4P 324JM 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 11396407 WEG price in the box on the right side or send a quick quote.
Product Details
- Frequency 60 Hz
- Temperature rise 80 K
- Synchronous speed 1800 rpm
- Frame 324JM
- Rated torque 118 ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Number of Poles 4
- Moment of inertia (J) 5.40 sq.ft.lb
- Starting Method Direct On Line
- Approx. weight³ 514 lb
- Rated current 39.5 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- LRC 5.8x(Code G)
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Output 40 HP (30 kW)
- Locked rotor time 43s (cold) 24s (hot)
- Service factor 1.15
- Noise level² 64.0 dB(A)
- Terminal box¹ Left position
- Rated voltage 575 V
- Locked rotor torque 210 %
- Degree of Protection IP23
- Voltage 575 V
- Rated speed 1775 rpm
- No load current 16.8 A
- Duty Cycle Cont.(S1)
- Output rating 40 HP
- L. R. Amperes 229 A
- Breakdown torque 220 %
- Enclosure IC01 - ODP
- Slip 1.39 %
- Design B
- Mounting F-1
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
