04036XT3H324TS WEG AC Motors
Part#:04036XT3H324TS
Manufacturer:WEG
Alt. Part#:7909492145868
Product Lifecycle:Active
Get a quick Quote!

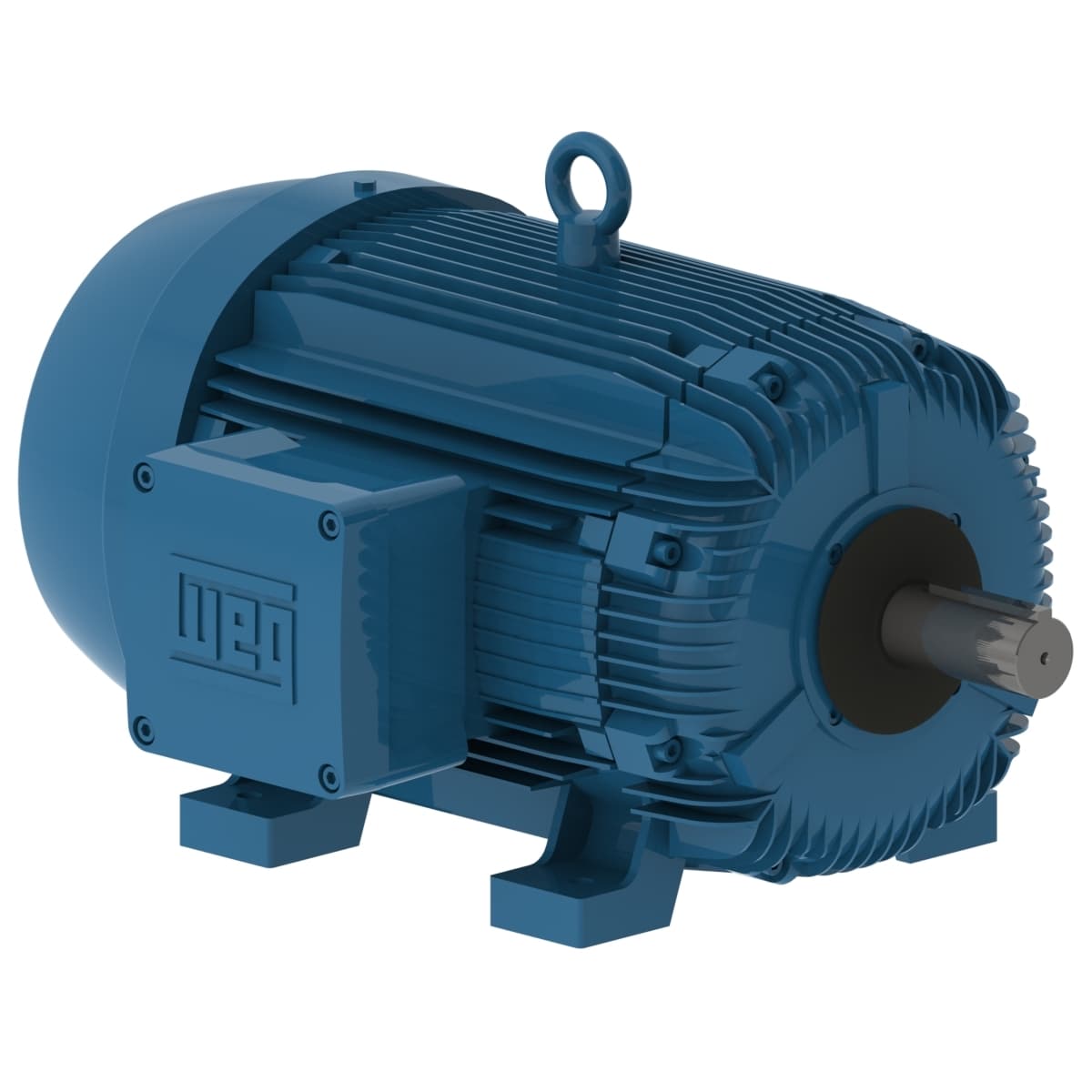

W21 Explosion-proof Motor NEMA Premium Efficiency 40 HP 2P 324TS 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 04036XT3H324TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Slip 1.11 %
- Rated torque 59.0 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- L. R. Amperes 244 A
- Insulation Class F
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Rated speed 3560 rpm
- Breakdown torque 260 %
- Altitude 1000 m.a.s.l.
- LRC 6.6x(Code G)
- Duty Cycle Cont.(S1)
- Noise level² 81.0 dB(A)
- Terminal box¹ Left position
- Number of Poles 2
- Service factor 1.15
- Synchronous speed 3600 rpm
- Rated voltage 575 V
- Locked rotor torque 250 %
- Temperature rise 80 K
- Approx. weight³ 620 lb
- Output 40 HP (30 kW)
- Design B
- Degree of Protection IP55
- Output rating 40 HP
- Rated current 37.0 A
- Locked rotor time 54s (cold) 30s (hot)
- Rotation¹ Both (CW and CCW)
- Flange Without
- Frame 324TS
- Moment of inertia (J) 4.90 sq.ft.lb
- Mounting F-1
- Frequency 60 Hz
- No load current 10.4 A
- Starting Method Direct On Line
- Number of poles 2
