04036OT3V286JPV-W40 WEG AC Motors
Part#:04036OT3V286JPV-W40
Manufacturer:WEG
Alt. Part#:7909522293293
Product Lifecycle:Active
Get a quick Quote!

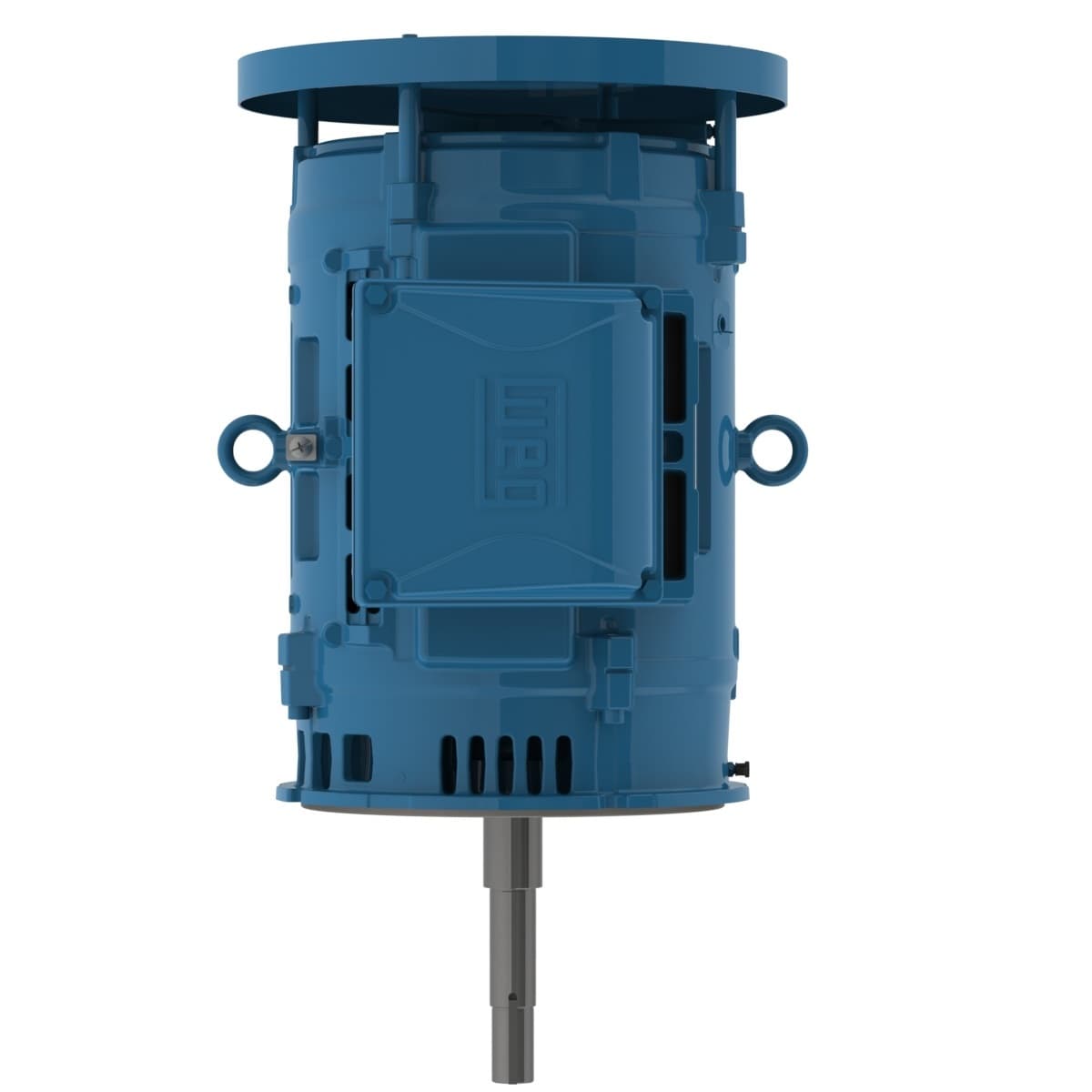

W40 JP Pump NEMA Premium Efficiency 40 HP 2P 284/6JP 3Ph 200/400 V 60 Hz IC01 - ODP - Footless
Check out the 04036OT3V286JPV-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3540 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- Rated voltage 200/400 V
- Moment of inertia (J) 2.02 sq.ft.lb
- Locked rotor time 14s (cold) 8s (hot)
- Enclosure IC01 - ODP
- Voltage 200/400 V
- Rated speed 3540 rpm
- Rated torque 59.3 ft.lb
- Terminal box¹ Left position
- Frame 284/6JP
- No load current 35.4/17.7 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Synchronous speed 3600 rpm
- Rated current 108/53.9 A
- Ambient temperature -20°C to +40°C
- Output rating 40 HP
- Frequency 60 Hz
- Service factor 1.25
- Duty Cycle Cont.(S1)
- Noise level² 73.0 dB(A)
- L. R. Amperes 700/350 A
- Temperature rise 80 K
- Approx. weight³ 362 lb
- Slip 1.67 %
- Locked rotor torque 190 %
- Breakdown torque 240 %
- Number of poles 2
- LRC 6.5x(Code G)
- Starting Method Direct On Line
- Standard NEMA MG-1
- Output 40 HP (30 kW)
- Degree of Protection IP23
- Flange C
- Number of Poles 2
- Design B
- Altitude 1000 m.a.s.l.
- Mounting W-6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 04036OT3V286JPV-W40 Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of WEG
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
WEG Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many WEG Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from WEG, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
