04036OT3H286JP-W40 WEG AC Motors
Part#:04036OT3H286JP-W40
Manufacturer:WEG
Alt. Part#:7909492237211
Product Lifecycle:Active
Get a quick Quote!

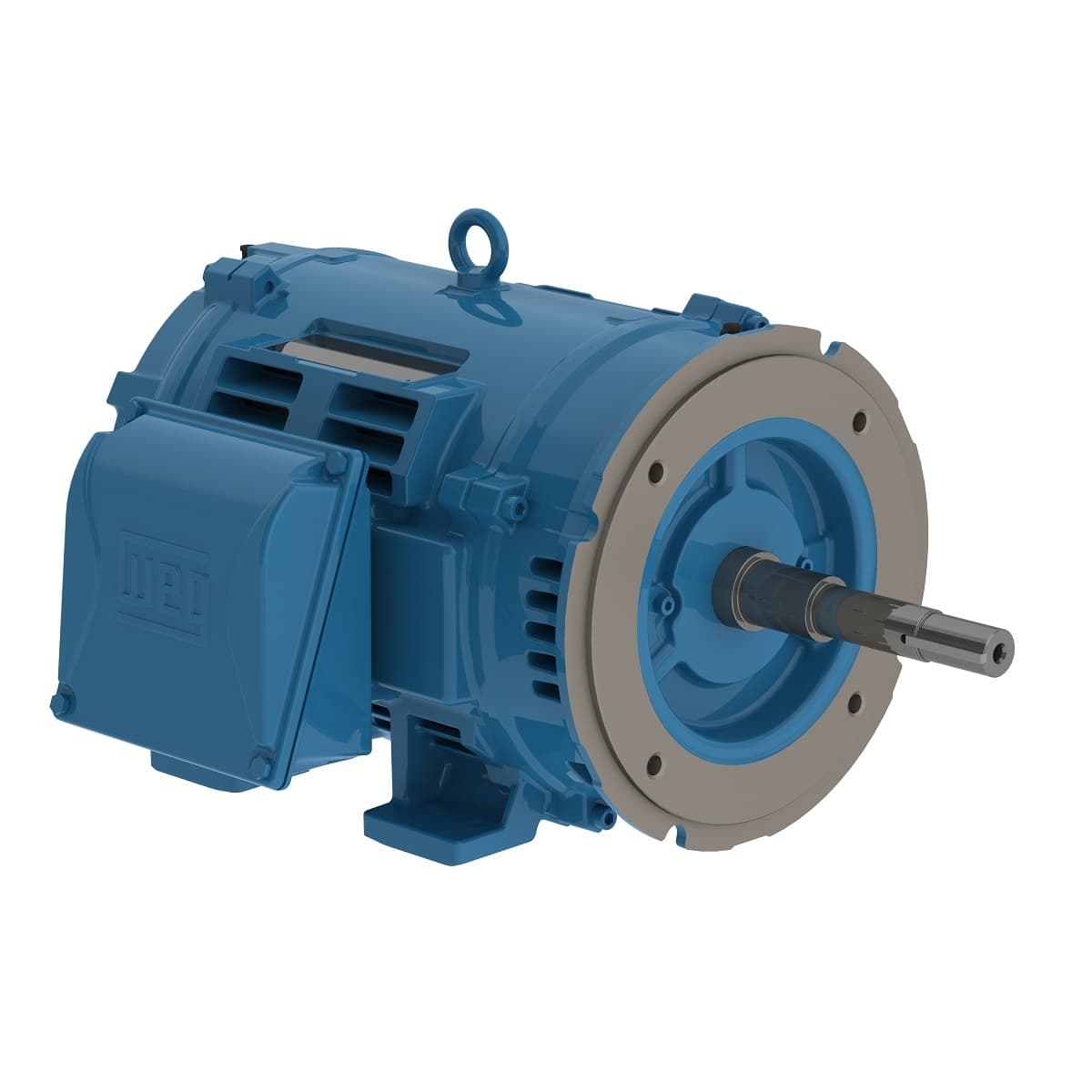

W40 JP Pump NEMA Premium Efficiency 40 HP 2P 284/6JP 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 04036OT3H286JP-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3540 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Noise level² 73.0 dB(A)
- Voltage 575 V
- Mounting F-1
- Approx. weight³ 359 lb
- LRC 6.5x(Code G)
- Rated current 37.5 A
- Starting Method Direct On Line
- L. R. Amperes 244 A
- Temperature rise 80 K
- Locked rotor time 14s (cold) 8s (hot)
- Design B
- Duty Cycle Cont.(S1)
- Frequency 60 Hz
- Moment of inertia (J) 2.02 sq.ft.lb
- Enclosure IC01 - ODP
- Rated voltage 575 V
- Slip 1.67 %
- Number of Poles 2
- Insulation Class F
- Rated torque 59.3 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Standard NEMA MG-1
- Output rating 40 HP
- Rated speed 3540 rpm
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Terminal box¹ Left position
- Output 40 HP (30 kW)
- Locked rotor torque 190 %
- Degree of Protection IP23
- Frame 284/6JP
- No load current 12.3 A
- Breakdown torque 240 %
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
