04036OT3H286JP WEG AC Motors
Part#:04036OT3H286JP
Manufacturer:WEG
Alt. Part#:7909158615674
Product Lifecycle:Active
Get a quick Quote!

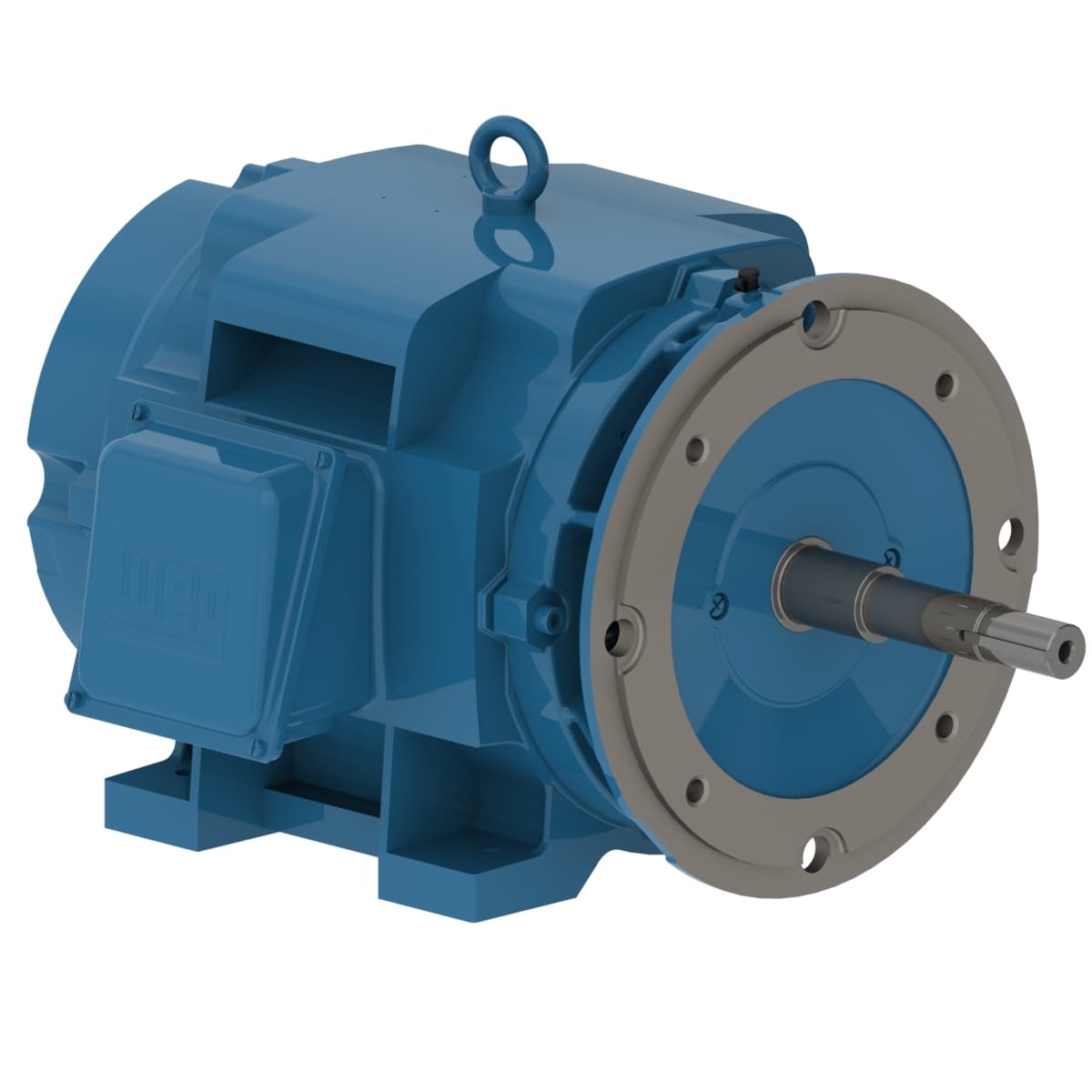

Close Coupled Pump NEMA Premium Efficiency 40 HP 2P 286JP 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 04036OT3H286JP WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Number of Poles 2
- Service factor 1.15
- Approx. weight³ 379 lb
- Flange C
- LRC 6.4x(Code G)
- Temperature rise 80 K
- Terminal box¹ Left position
- Slip 1.39 %
- Insulation Class F
- Enclosure IC01 - ODP
- Frequency 60 Hz
- Locked rotor time 41s (cold) 23s (hot)
- Degree of Protection IP23
- Rotation¹ Both (CW and CCW)
- Rated current 37.7 A
- Moment of inertia (J) 2.36 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Rated voltage 575 V
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- L. R. Amperes 241 A
- Rated torque 59.2 ft.lb
- Starting Method Direct On Line
- Output rating 40 HP
- Frame 286JP
- No load current 12.8 A
- Locked rotor torque 250 %
- Mounting F-1
- Number of poles 2
- Output 40 HP (30 kW)
- Breakdown torque 260 %
- Design B
- Voltage 575 V
- Rated speed 3550 rpm
- Duty Cycle Cont.(S1)
- Noise level² 73.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
