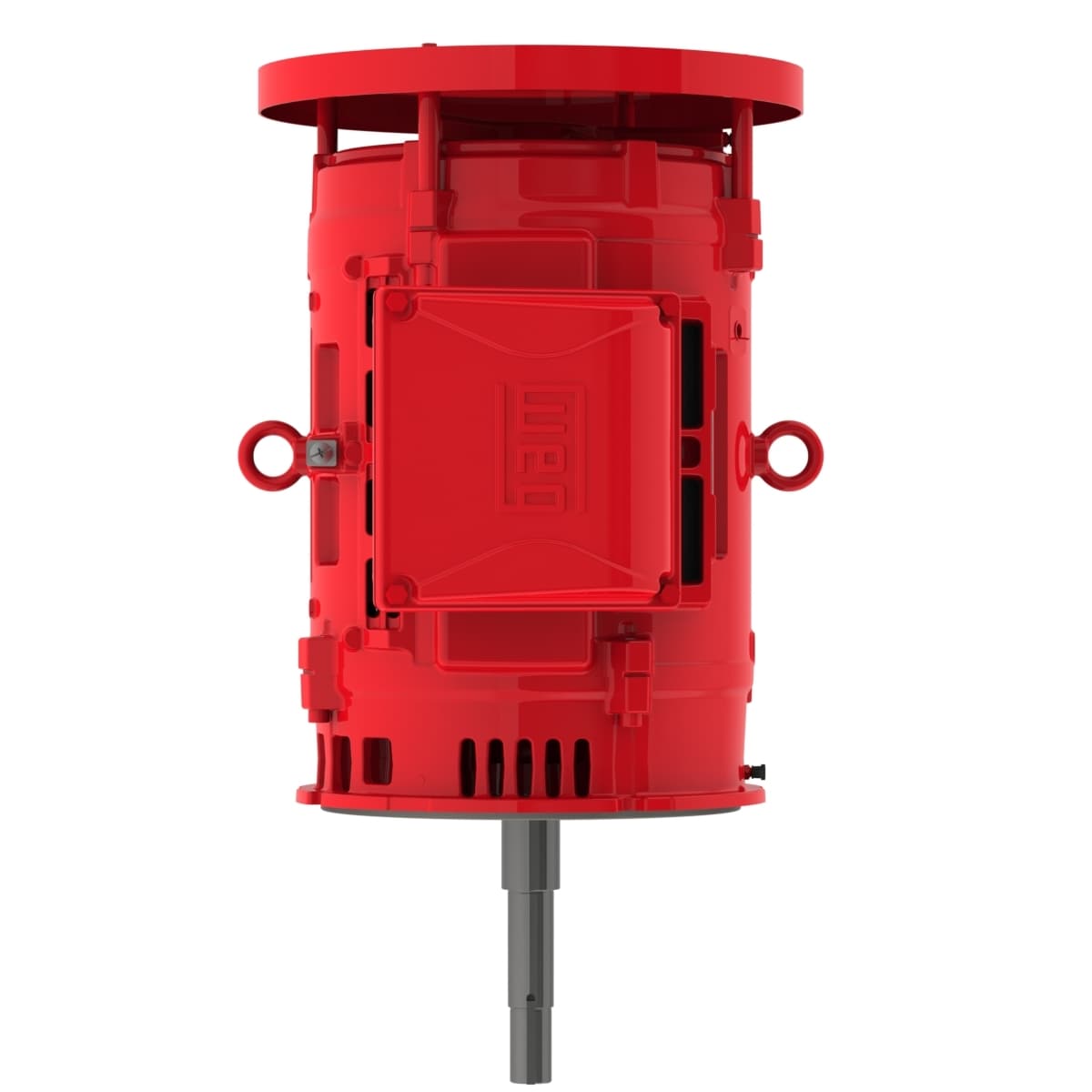

04036OP3EFP286JPV-W4 WEG AC Motors
Part#:04036OP3EFP286JPV-W4
Manufacturer:WEG
Alt. Part#:7909522269045
Product Lifecycle:Active
Get a quick Quote!
W40 JP Pump High Efficiency 40 HP 2P 284/6JP 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Footless
Check out the 04036OP3EFP286JPV-W4 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3540 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Number of Poles 2
- Moment of inertia (J) 1.91 sq.ft.lb
- Approx. weight³ 373 lb
- LRC 6.1x(Code G)
- Temperature rise 80 K
- Degree of Protection IP23
- Frame 284/6JP
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Slip 1.67 %
- Locked rotor time 18s (cold) 10s (hot)
- Enclosure IC01 - ODP
- L. R. Amperes 576/288 A
- No load current 26.0/13.0 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Flange C
- Rated speed 3540 rpm
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Frequency 60 Hz
- Insulation Class F
- Mounting W-6
- Terminal box¹ Left position
- Rated current 94.4/47.2 A
- Rated torque 59.3 ft.lb
- Design B
- Output rating 40 HP
- Rated voltage 230/460 V
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Output 40 HP (30 kW)
- Breakdown torque 220 %
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
