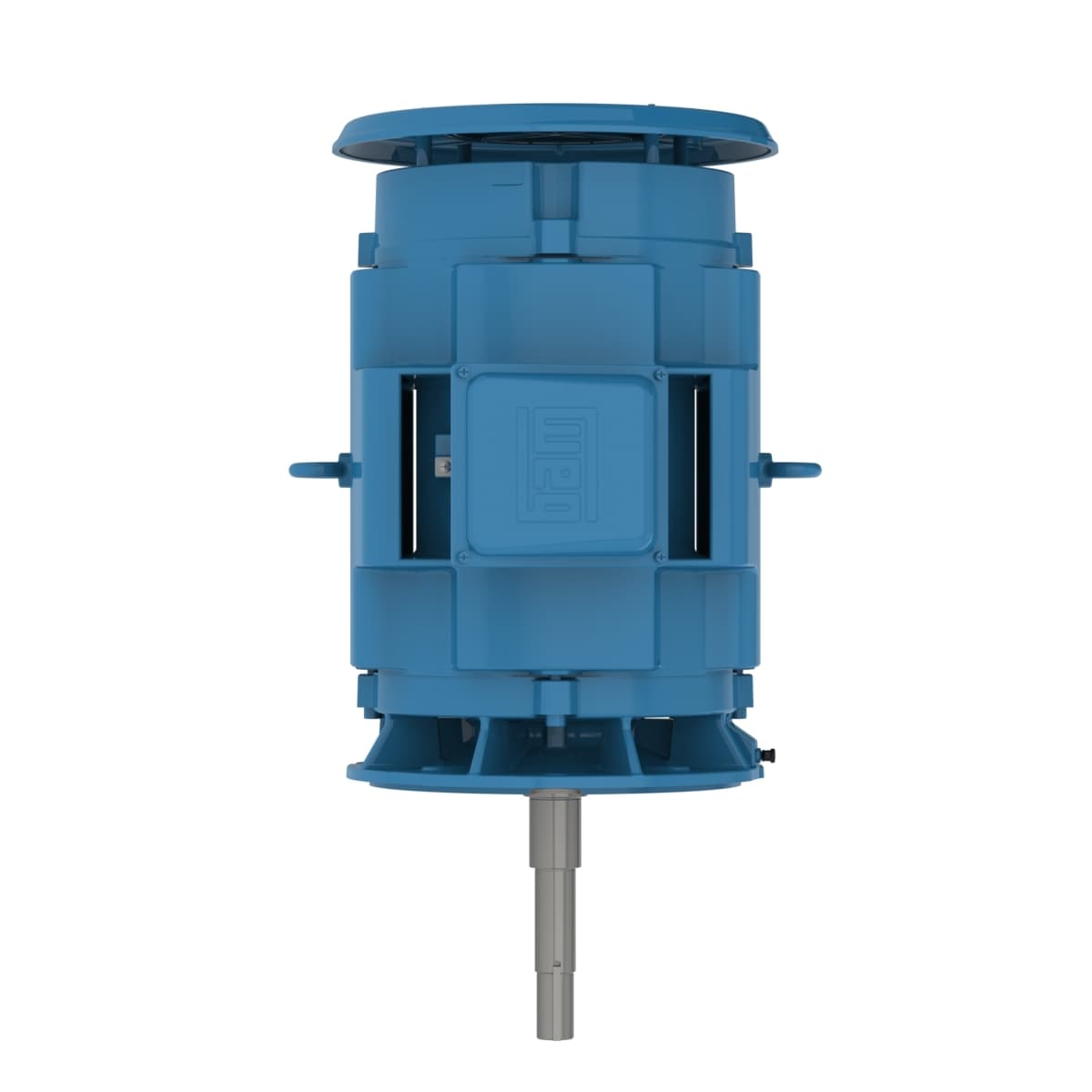

04036OT3E286JPV WEG AC Motors
Part#:04036OT3E286JPV
Manufacturer:WEG
Alt. Part#:7909322204888
Product Lifecycle:Active
Get a quick Quote!
Close Coupled Pump NEMA Premium Efficiency 40 HP 2P 286JP 3Ph 230/460 V 60 Hz IC01 - ODP - Footless
Check out the 04036OT3E286JPV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Output 40 HP (30 kW)
- LRC 6.4x(Code G)
- Ambient temperature -20°C to +40°C
- Number of poles 2
- L. R. Amperes 603/301 A
- Rated torque 59.2 ft.lb
- Service factor 1.15
- Standard NEMA MG-1
- Breakdown torque 260 %
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Rated current 94.2/47.1 A
- Insulation Class F
- Enclosure IC01 - ODP
- Approx. weight³ 394 lb
- Frame 286JP
- Design B
- Voltage 230/460 V
- Frequency 60 Hz
- Locked rotor time 41s (cold) 23s (hot)
- Starting Method Direct On Line
- Output rating 40 HP
- Slip 1.39 %
- Locked rotor torque 250 %
- Noise level² 73.0 dB(A)
- Rated speed 3550 rpm
- No load current 32.0/16.0 A
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Number of Poles 2
- Moment of inertia (J) 2.36 sq.ft.lb
- Mounting W-6
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
