04036OP3HFP286TS WEG AC Motors
Part#:04036OP3HFP286TS
Manufacturer:WEG
Alt. Part#:7890705906942
Product Lifecycle:Active
Get a quick Quote!

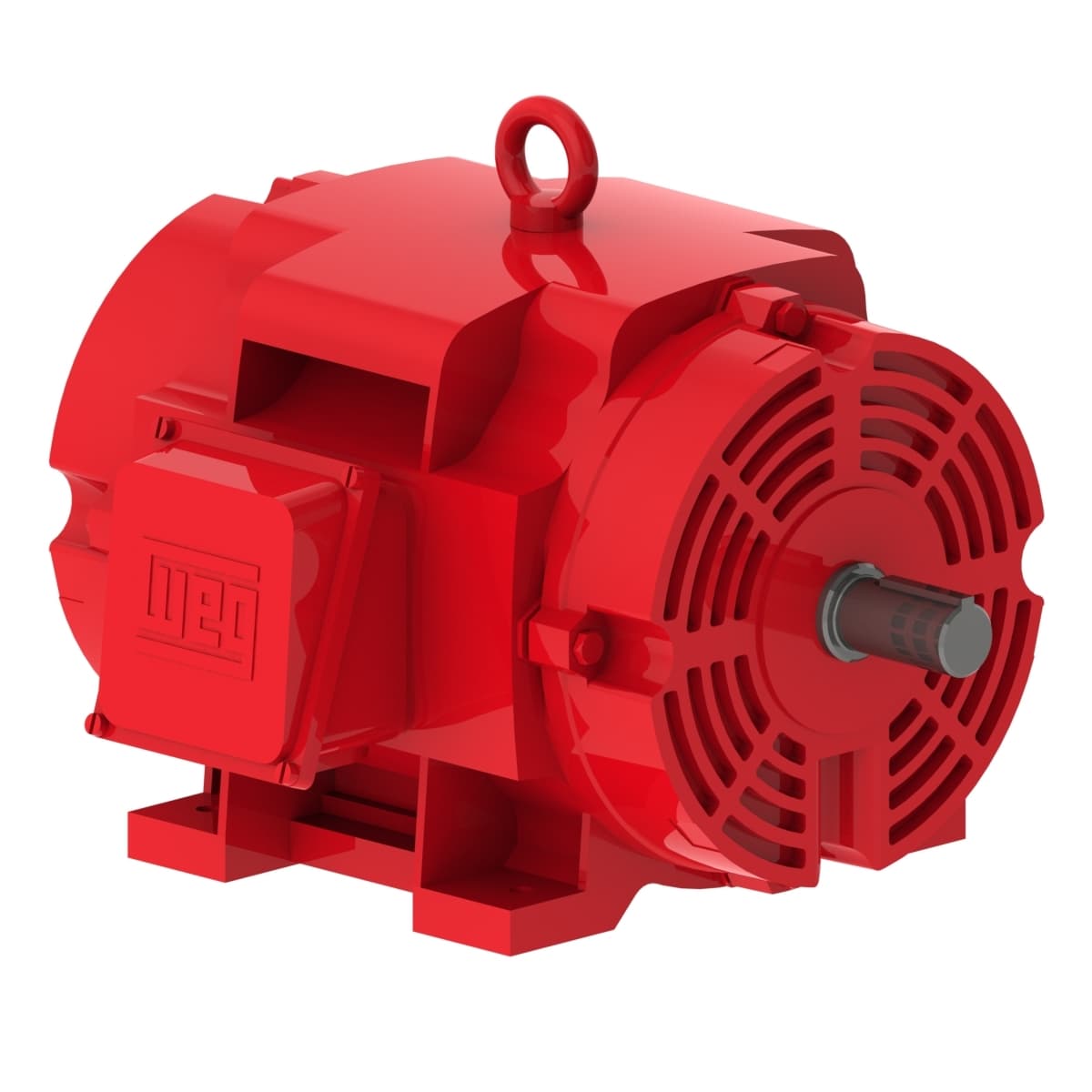

ODP High Efficiency 40 HP 2P 286TS 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 04036OP3HFP286TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Locked rotor torque 229 %
- Service factor 1.15
- Flange Without
- L. R. Amperes 232 A
- Insulation Class F
- Rated voltage 575 V
- Breakdown torque 210 %
- Degree of Protection IP23
- Voltage 575 V
- Output 40 HP (30 kW)
- Moment of inertia (J) 2.16 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Approx. weight³ 353 lb
- Frame 286TS
- Design B
- Noise level² 73.0 dB(A)
- Slip 1.53 %
- Locked rotor time 48s (cold) 27s (hot)
- Mounting F-1
- Number of poles 2
- Number of Poles 2
- LRC 6.2x(Code G)
- Starting Method Direct On Line
- Rated current 37.4 A
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- No load current 10.4 A
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Rated speed 3545 rpm
- Rated torque 59.3 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rotation¹ Both (CW and CCW)
- Output rating 40 HP
- Enclosure IC01 - ODP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 04036OP3HFP286TS Specs
