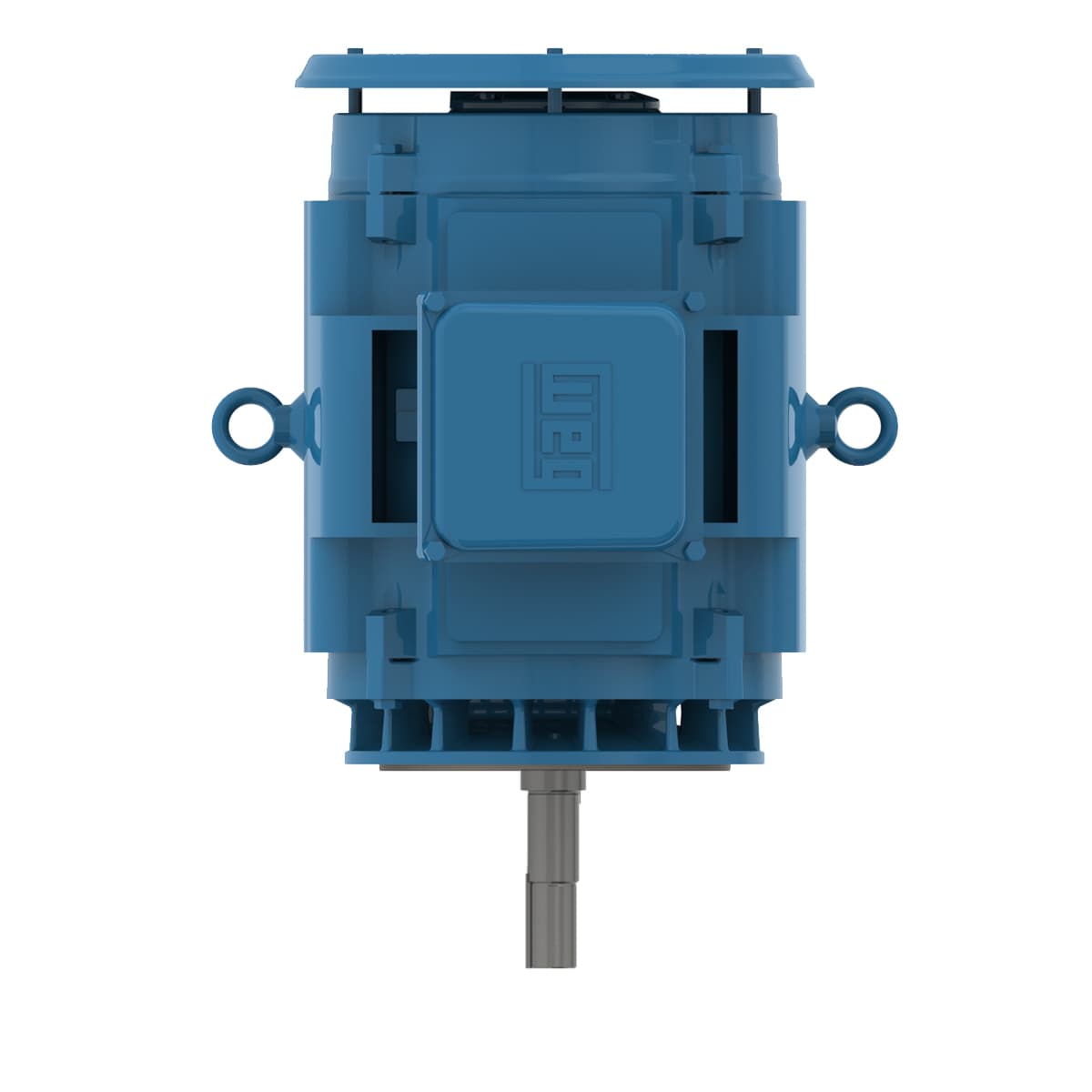

04036OP3E286JMV WEG AC Motors
Part#:04036OP3E286JMV
Manufacturer:WEG
Alt. Part#:7892304281598
Product Lifecycle:Active
Get a quick Quote!
Close Coupled Pump High Efficiency 40 HP 2P 286JM 3Ph 230/460 V 60 Hz IC01 - ODP - Footless
Check out the 04036OP3E286JMV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating40 HP
- Rated Speed3545 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Output 40 HP (30 kW)
- LRC 6.2x(Code G)
- Service factor 1.15
- Approx. weight³ 373 lb
- Rated voltage 230/460 V
- Locked rotor torque 229 %
- Breakdown torque 210 %
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Flange C
- Frame 286JM
- Slip 1.53 %
- Rated torque 59.3 ft.lb
- Design B
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Voltage 230/460 V
- Number of poles 2
- Number of Poles 2
- L. R. Amperes 579/290 A
- No load current 26.0/13.0 A
- Insulation Class F
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Standard NEMA MG-1
- Output rating 40 HP
- Rated current 93.4/46.7 A
- Temperature rise 80 K
- Noise level² 73.0 dB(A)
- Rated speed 3545 rpm
- Moment of inertia (J) 2.16 sq.ft.lb
- Degree of Protection IP23
- Frequency 60 Hz
- Locked rotor time 48s (cold) 27s (hot)
- Mounting W-6
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 04036OP3E286JMV Specs
