03018ST3QAP286T-W22 WEG AC Motors
Part#:03018ST3QAP286T-W22
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

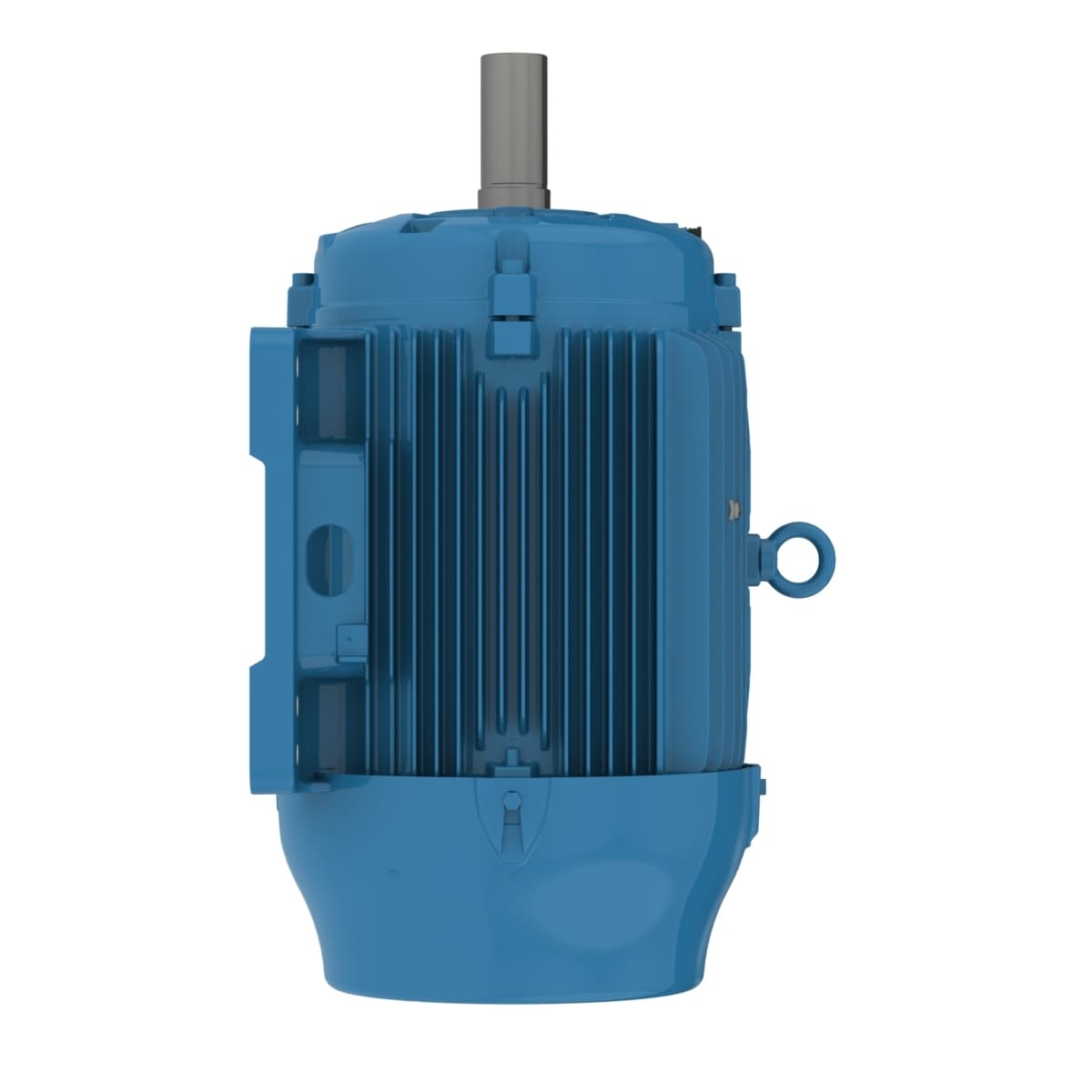

W22 IEEE 841 NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 03018ST3QAP286T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated current 35.1 A
- Locked rotor time 36s (cold) 20s (hot)
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Voltage 460 V
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated speed 1770 rpm
- Locked rotor torque 240 %
- Rotation¹ Both (CW and CCW)
- Noise level² 63.0 dB(A)
- Output 30 HP (22 kW)
- No load current 12.3 A
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Frame 284/6T
- Degree of Protection IP56
- Approx. weight³ 450 lb
- L. R. Amperes 214 A
- Rated torque 89.0 ft.lb
- Mounting W-8
- Terminal box¹ Left position
- Number of Poles 4
- Breakdown torque 240 %
- Moment of inertia (J) 5.85 sq.ft.lb
- Temperature rise 80 K
- Flange Without
- Slip 1.67 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Design B
- Output rating 30 HP
- Rated voltage 460 V
- LRC 6.1x(Code G)
- Insulation Class F
- Service factor 1.15
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
