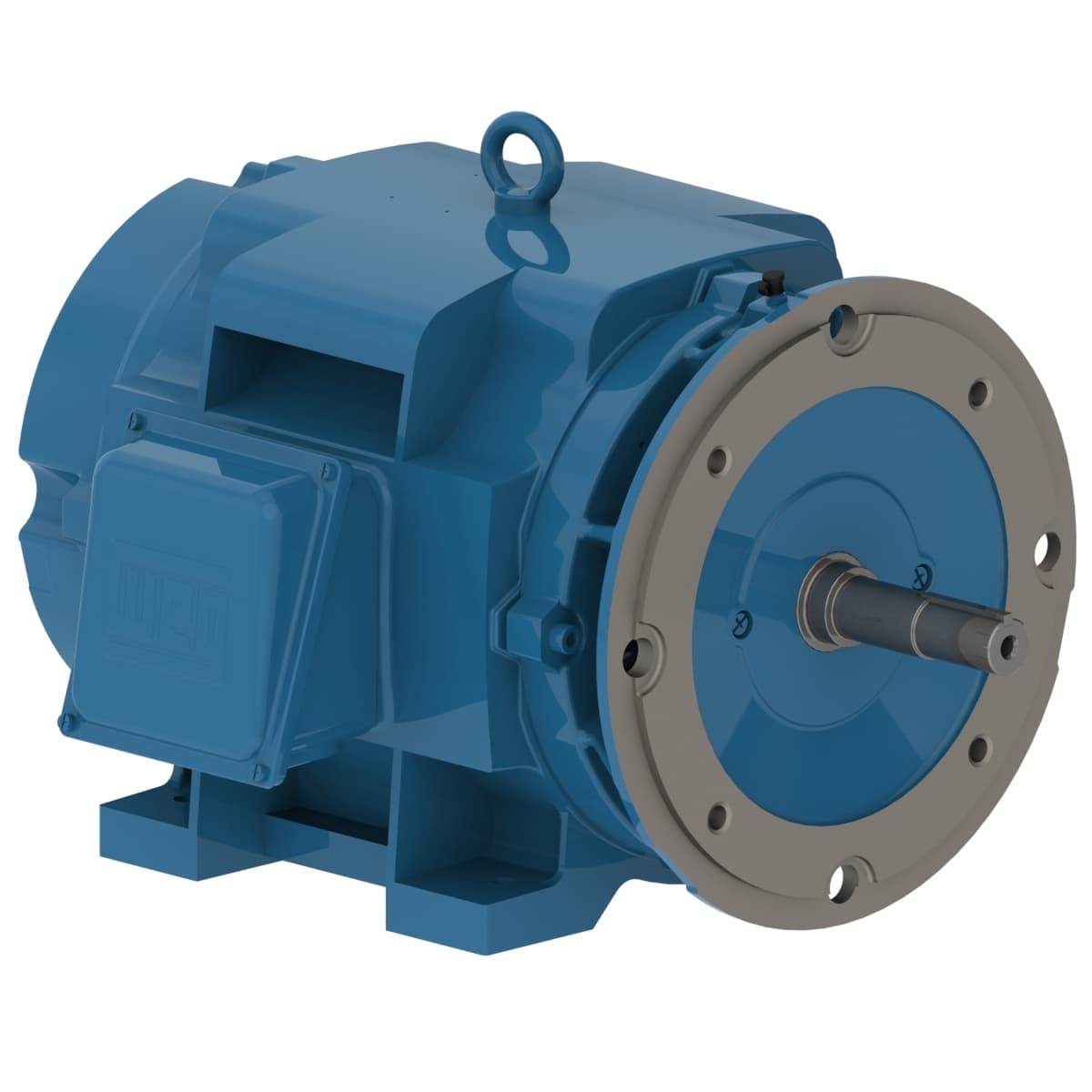

03012OT3E326JM WEG AC Motors
Part#:03012OT3E326JM
Manufacturer:WEG
Alt. Part#:7909322244341
Product Lifecycle:Active
Get a quick Quote!
Close Coupled Pump NEMA Premium Efficiency 30 HP 6P 326JM 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03012OT3E326JM WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1180 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 1.67 %
- No load current 30.0/15.0 A
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Rated current 72.0/36.0 A
- Locked rotor torque 220 %
- Noise level² 60.0 dB(A)
- Frame 326JM
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Terminal box¹ Left position
- LRC 6.2x(Code G)
- Service factor 1.15
- Degree of Protection IP23
- Frequency 60 Hz
- Moment of inertia (J) 9.79 sq.ft.lb
- Enclosure IC01 - ODP
- Number of poles 6
- Rated speed 1180 rpm
- Breakdown torque 270 %
- Altitude 1000 m.a.s.l.
- Approx. weight³ 545 lb
- Number of Poles 6
- Design B
- Ambient temperature -20°C to +40°C
- Flange C
- Rated voltage 230/460 V
- Rated torque 134 ft.lb
- Temperature rise 80 K
- Synchronous speed 1200 rpm
- Output 30 HP (22 kW)
- Locked rotor time 30s (cold) 17s (hot)
- Mounting F-1
- Output rating 30 HP
- L. R. Amperes 446/223 A
- Insulation Class F
- Voltage 230/460 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03012OT3E326JM Specs
1-year warranty
