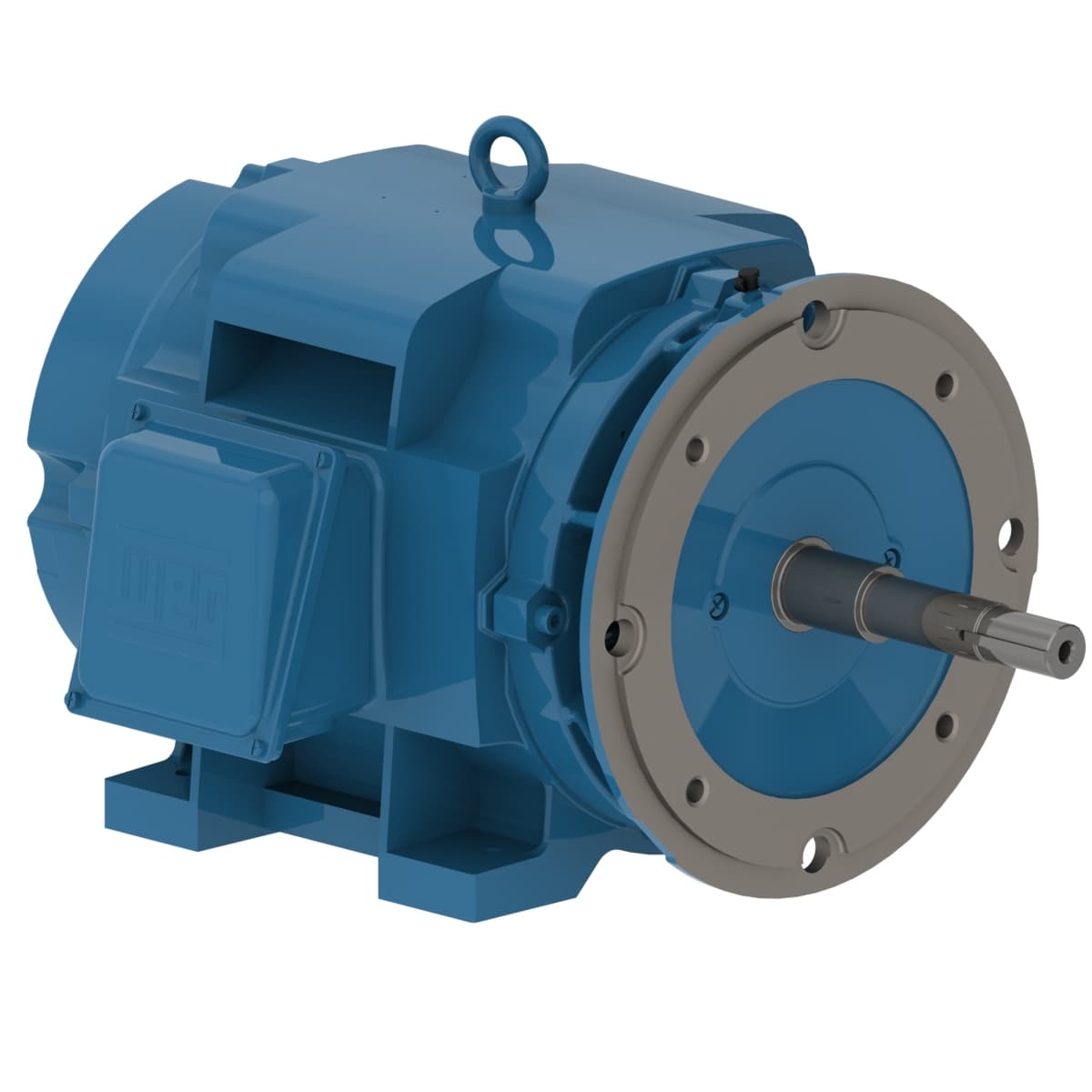

03018OT3E286JP WEG AC Motors
Part#:03018OT3E286JP
Manufacturer:WEG
Alt. Part#:7890355499412
Product Lifecycle:Active
Get a quick Quote!
Close Coupled Pump NEMA Premium Efficiency 30 HP 4P 286JP 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 03018OT3E286JP WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Output 30 HP (22 kW)
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Flange C
- Slip 1.67 %
- Breakdown torque 270 %
- Degree of Protection IP23
- Output rating 30 HP
- Number of Poles 4
- Rated torque 89.0 ft.lb
- Starting Method Direct On Line
- Voltage 230/460 V
- L. R. Amperes 461/230 A
- Moment of inertia (J) 4.90 sq.ft.lb
- Insulation Class F
- Synchronous speed 1800 rpm
- Rated voltage 230/460 V
- Design B
- Approx. weight³ 429 lb
- LRC 6.6x(Code G)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Frame 286JP
- Locked rotor torque 240 %
- Altitude 1000 m.a.s.l.
- Rated current 69.8/34.9 A
- Locked rotor time 25s (cold) 14s (hot)
- Noise level² 63.0 dB(A)
- Rated speed 1770 rpm
- No load current 24.2/12.1 A
- Temperature rise 80 K
- Number of poles 4
- Terminal box¹ Left position
- Frequency 60 Hz
- Service factor 1.15
- Enclosure IC01 - ODP
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03018OT3E286JP Specs
