03018ET3E286T-W22 WEG AC Motors
Part#:03018ET3E286T-W22
Manufacturer:WEG
Alt. Part#:7891327165069
Product Lifecycle:Active
Get a quick Quote!

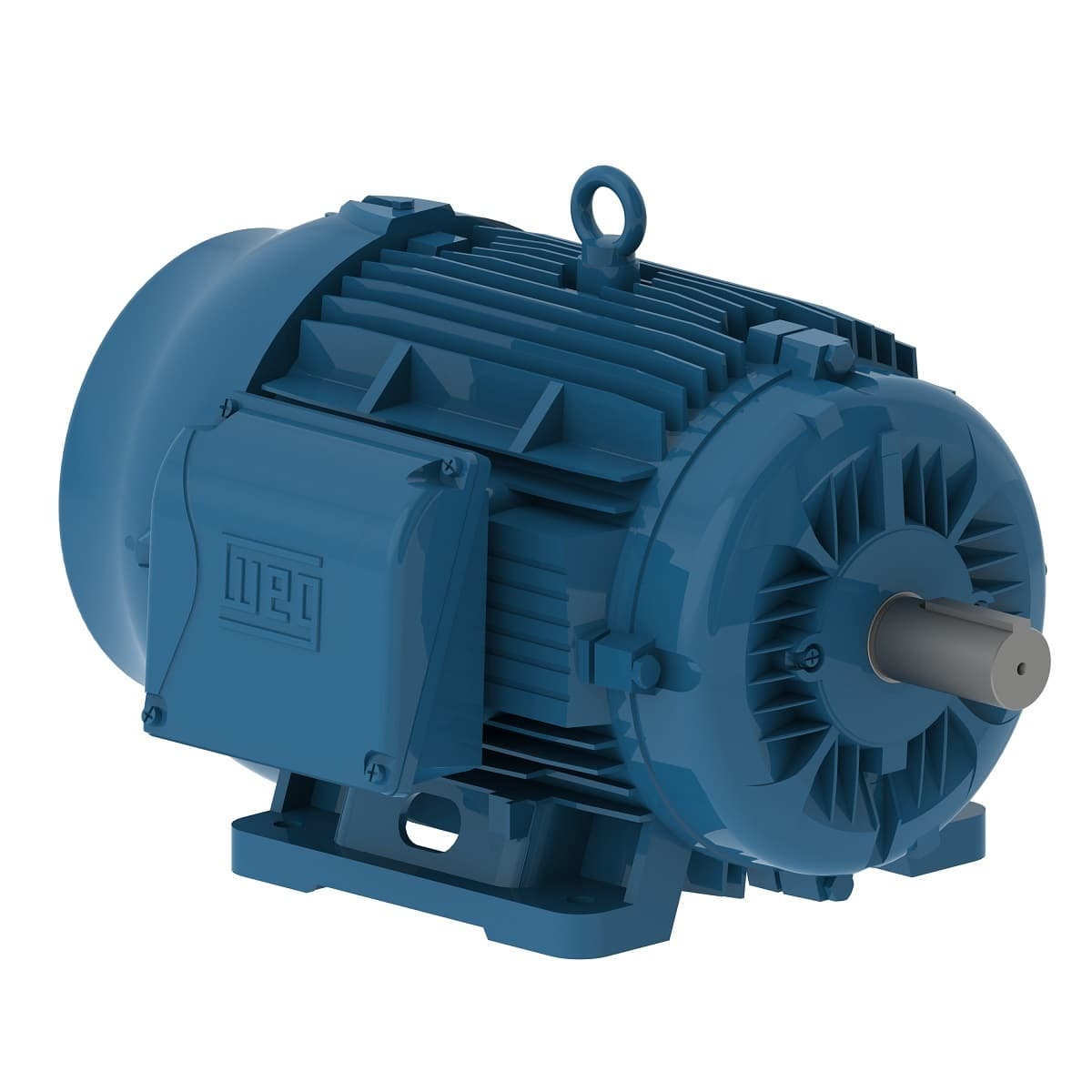

W22 NEMA Premium Efficiency 30 HP 4P 284/6T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 03018ET3E286T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frequency 60 Hz
- Rated current 70.2/35.1 A
- Locked rotor time 36s (cold) 20s (hot)
- Moment of inertia (J) 5.85 sq.ft.lb
- Approx. weight³ 438 lb
- Output 30 HP (22 kW)
- Locked rotor torque 240 %
- Temperature rise 80 K
- Standard NEMA MG-1
- Number of Poles 4
- No load current 24.6/12.3 A
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Terminal box¹ Left position
- Frame 284/6T
- Design B
- Noise level² 63.0 dB(A)
- Slip 1.67 %
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Flange Without
- LRC 6.1x(Code G)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Synchronous speed 1800 rpm
- Breakdown torque 240 %
- Service factor 1.25
- Starting Method Direct On Line
- L. R. Amperes 428/214 A
- Rated speed 1770 rpm
- Duty Cycle Cont.(S1)
- Number of poles 4
- Rated voltage 230/460 V
- Enclosure IC411 - TEFC
- Output rating 30 HP
- Rated torque 89.0 ft.lb
- Degree of Protection IP55
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03018ET3E286T-W22 Specs
1-year warranty
