03018OP3EFP286JPV WEG AC Motors
Part#:03018OP3EFP286JPV
Manufacturer:WEG
Alt. Part#:7909322397900
Product Lifecycle:Active
Get a quick Quote!

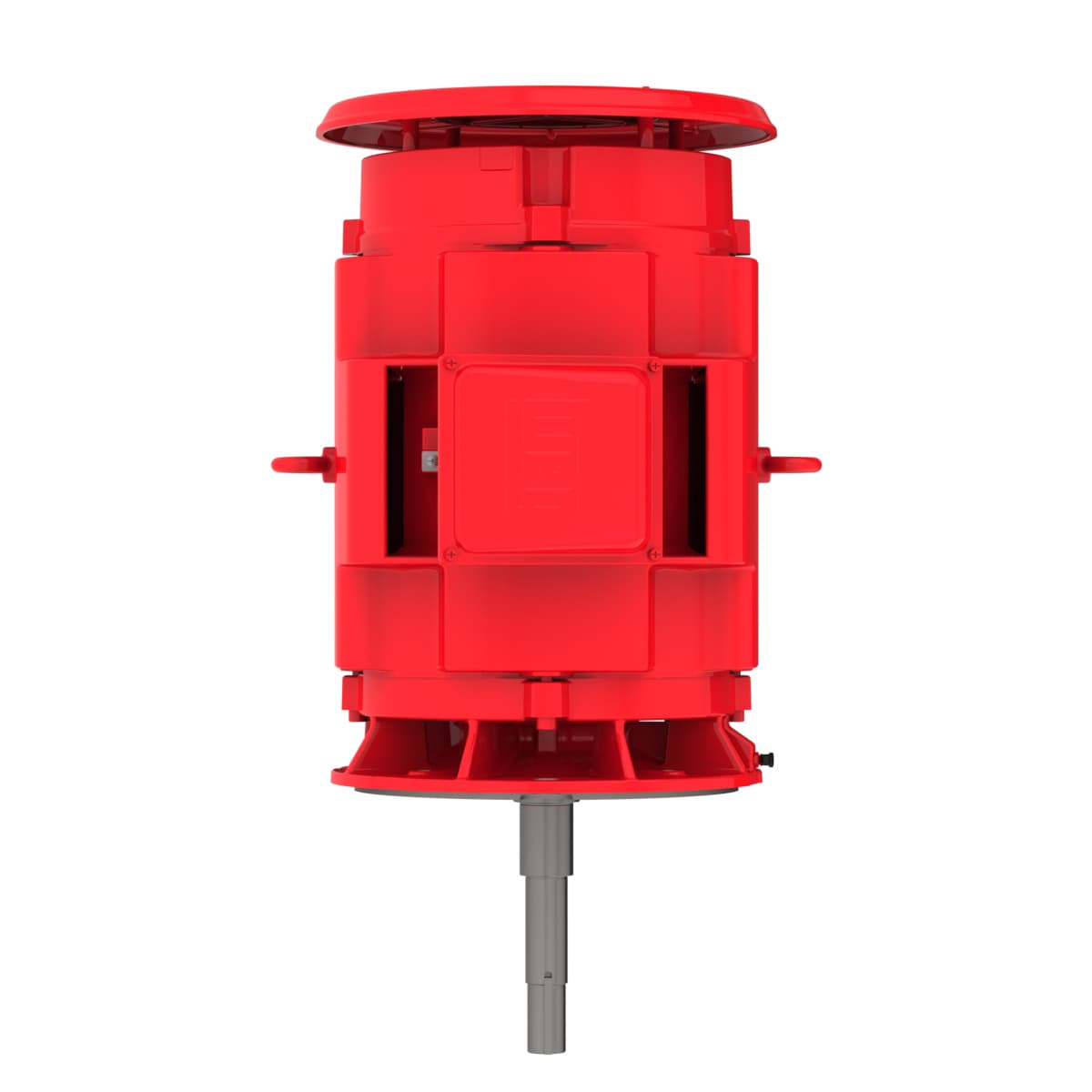

Close Coupled Pump High Efficiency 30 HP 4P 286JP 3Ph 230/460 V 60 Hz IC01 - ODP - Footless
Check out the 03018OP3EFP286JPV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1770 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Breakdown torque 270 %
- Degree of Protection IP23
- Standard NEMA MG-1
- L. R. Amperes 434/217 A
- Insulation Class F
- Mounting W-6
- Number of Poles 4
- Rated torque 89.0 ft.lb
- Starting Method Direct On Line
- Number of poles 4
- Rated voltage 230/460 V
- Locked rotor time 23s (cold) 13s (hot)
- Altitude 1000 m.a.s.l.
- Flange C
- Rated speed 1770 rpm
- Moment of inertia (J) 3.41 sq.ft.lb
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Slip 1.67 %
- Design B
- Noise level² 63.0 dB(A)
- Output rating 30 HP
- Rated current 71.2/35.6 A
- LRC 6.1x(Code G)
- Service factor 1.15
- Approx. weight³ 374 lb
- Frame 286JP
- Locked rotor torque 250 %
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output 30 HP (22 kW)
- No load current 28.0/14.0 A
- Ambient temperature -20°C to +40°C
- Voltage 230/460 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03018OP3EFP286JPV Specs
