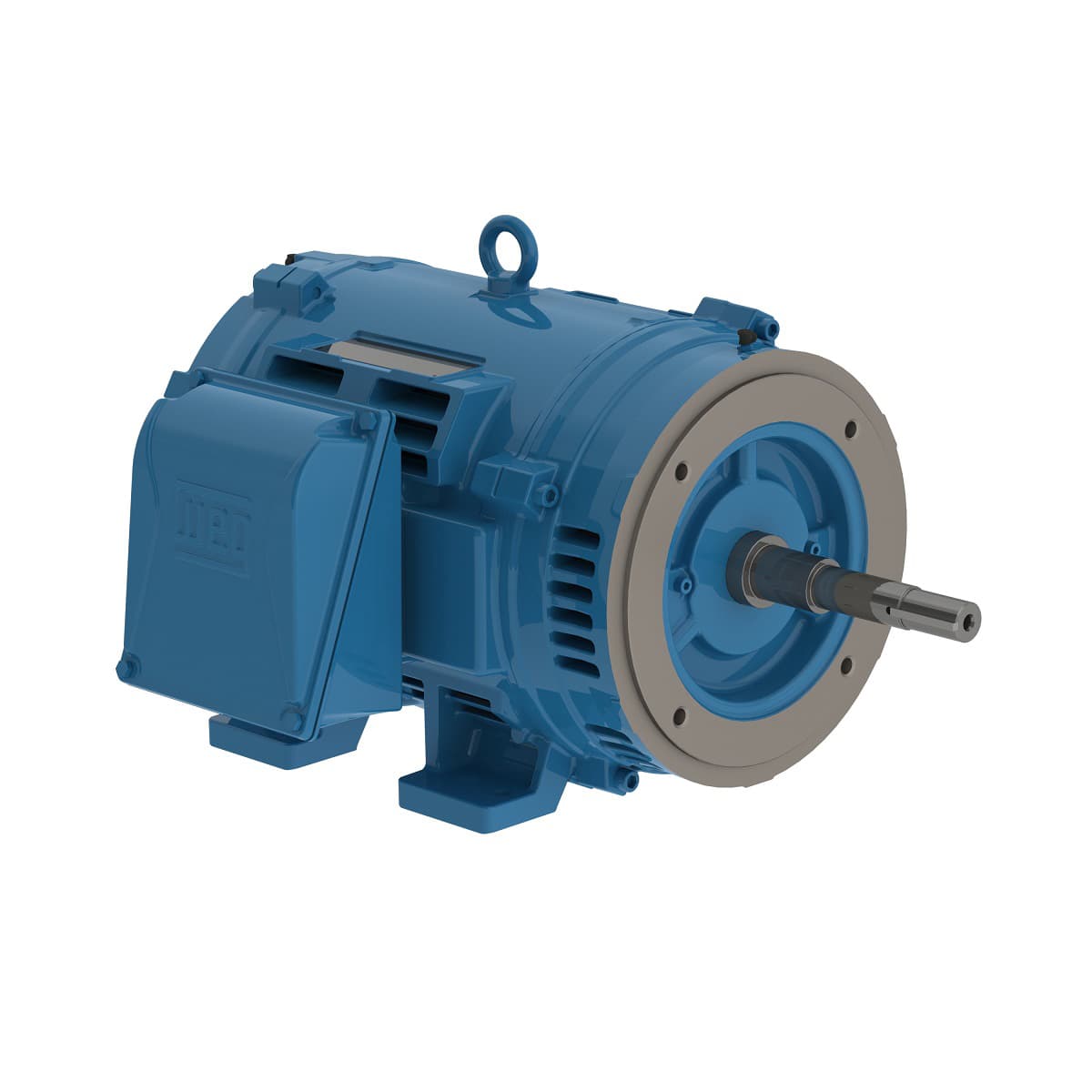

03012OT3E326JP-W40 WEG AC Motors
Part#:03012OT3E326JP-W40
Manufacturer:WEG
Alt. Part#:7909492232421
Product Lifecycle:Active
Get a quick Quote!
W40 JP Pump NEMA Premium Efficiency 30 HP 6P 324/6JP 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 03012OT3E326JP-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1182 rpm
- Number of Poles6 Pole
- Voltage230/460 V
- Flange TypeC
- L. R. Amperes 453/227 A
- Rated torque 133 ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Frequency 60 Hz
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 531 lb
- Frame 324/6JP
- Output 30 HP (22 kW)
- Insulation Class F
- Locked rotor time 30s (cold) 17s (hot)
- Rotation¹ Both (CW and CCW)
- Starting Method Direct On Line
- Output rating 30 HP
- Rated speed 1182 rpm
- No load current 30.2/15.1 A
- Degree of Protection IP23
- Synchronous speed 1200 rpm
- Rated voltage 230/460 V
- Moment of inertia (J) 9.56 sq.ft.lb
- Mounting F-1
- Flange C
- Slip 1.50 %
- Temperature rise 80 K
- Noise level² 62.0 dB(A)
- Breakdown torque 240 %
- Service factor 1.25
- Standard NEMA MG-1
- Rated current 72.0/36.0 A
- Design B
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Number of Poles 6
- LRC 6.3x(Code G)
- Altitude 1000 m.a.s.l.
- Number of poles 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03012OT3E326JP-W40 Specs
