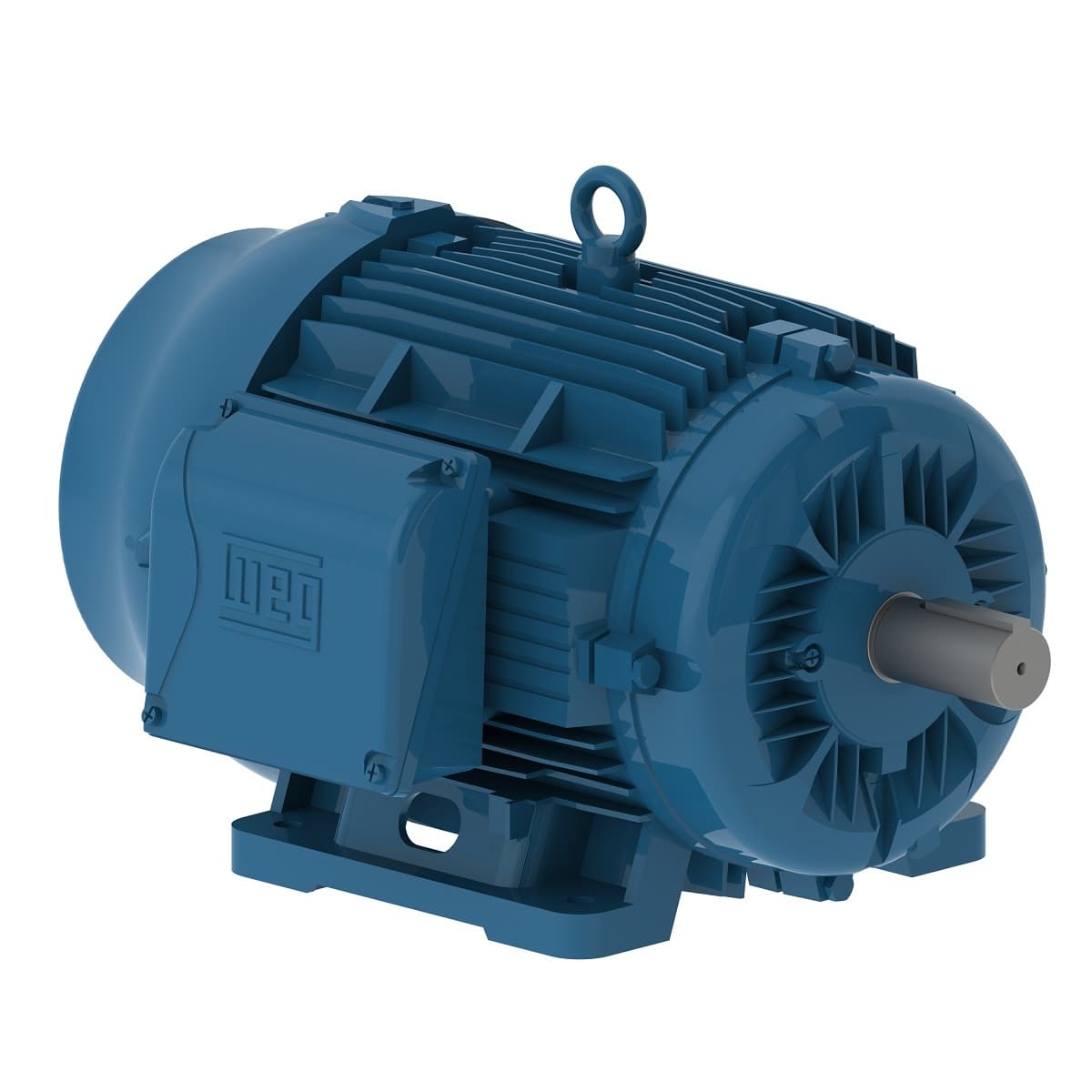

03012ET3H326T-W22 WEG AC Motors
Part#:03012ET3H326T-W22
Manufacturer:WEG
Alt. Part#:7891327156548
Product Lifecycle:Active
Get a quick Quote!
W22 NEMA Premium Efficiency 30 HP 6P 324/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 03012ET3H326T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating30 HP
- Rated Speed1180 rpm
- Number of Poles6 Pole
- Voltage575 V
- Flange TypeWithout
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Service factor 1.25
- Approx. weight³ 544 lb
- Mounting F-1
- Degree of Protection IP55
- L. R. Amperes 180 A
- Moment of inertia (J) 13.2 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output 30 HP (22 kW)
- Breakdown torque 240 %
- Design B
- Noise level² 62.0 dB(A)
- Rated voltage 575 V
- Rated torque 134 ft.lb
- Voltage 575 V
- LRC 6.2x(Code G)
- Number of poles 6
- Rated current 29.0 A
- Insulation Class F
- Frame 324/6T
- Starting Method Direct On Line
- Standard NEMA MG-1
- Output rating 30 HP
- Slip 1.67 %
- Locked rotor torque 220 %
- Enclosure IC411 - TEFC
- Flange Without
- Frequency 60 Hz
- Locked rotor time 37s (cold) 21s (hot)
- Rated speed 1180 rpm
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Number of Poles 6
- No load current 13.1 A
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 03012ET3H326T-W22 Specs
