01536OT3H215JPV-S WEG AC Motors
Part#:01536OT3H215JPV-S
Manufacturer:WEG
Alt. Part#:7909322282886
Product Lifecycle:Active
Get a quick Quote!

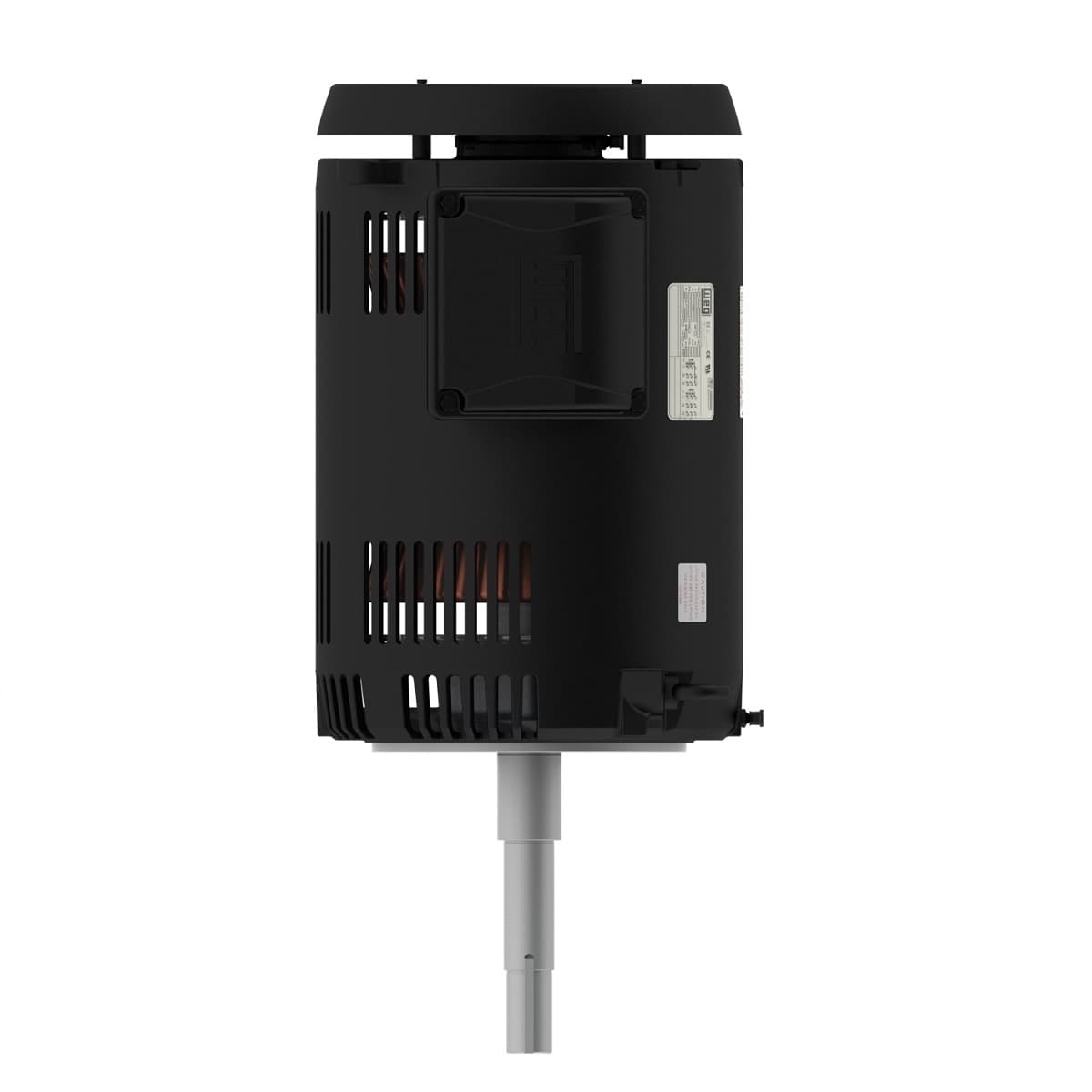

Rolled Steel JP Pump NEMA Premium Efficiency 15 HP 2P 213/5JP 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 01536OT3H215JPV-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- L. R. Amperes 93.6 A
- Insulation Class F
- Number of poles 2
- Rated speed 3535 rpm
- Locked rotor torque 210 %
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Moment of inertia (J) 0.5512 sq.ft.lb
- Breakdown torque 280 %
- Rated current 13.8 A
- Locked rotor time 14s (cold) 8s (hot)
- Mounting W-6
- Approx. weight³ 140 lb
- Frame 213/5JP
- Rated torque 22.3 ft.lb
- Enclosure IC01 - ODP
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Slip 1.81 %
- No load current 4.93 A
- Service factor 1.15
- Noise level² 66.0 dB(A)
- Number of Poles 2
- Rated voltage 575 V
- Design B
- Starting Method Direct On Line
- Temperature rise 80 K
- Voltage 575 V
- Flange C
- Terminal box¹ Left position
- LRC 6.8x(Code G)
- Standard NEMA MG-1
- Output 15 HP (11 kW)
- Duty Cycle Cont.(S1)
- Output rating 15 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01536OT3H215JPV-S Specs
1-year warranty
