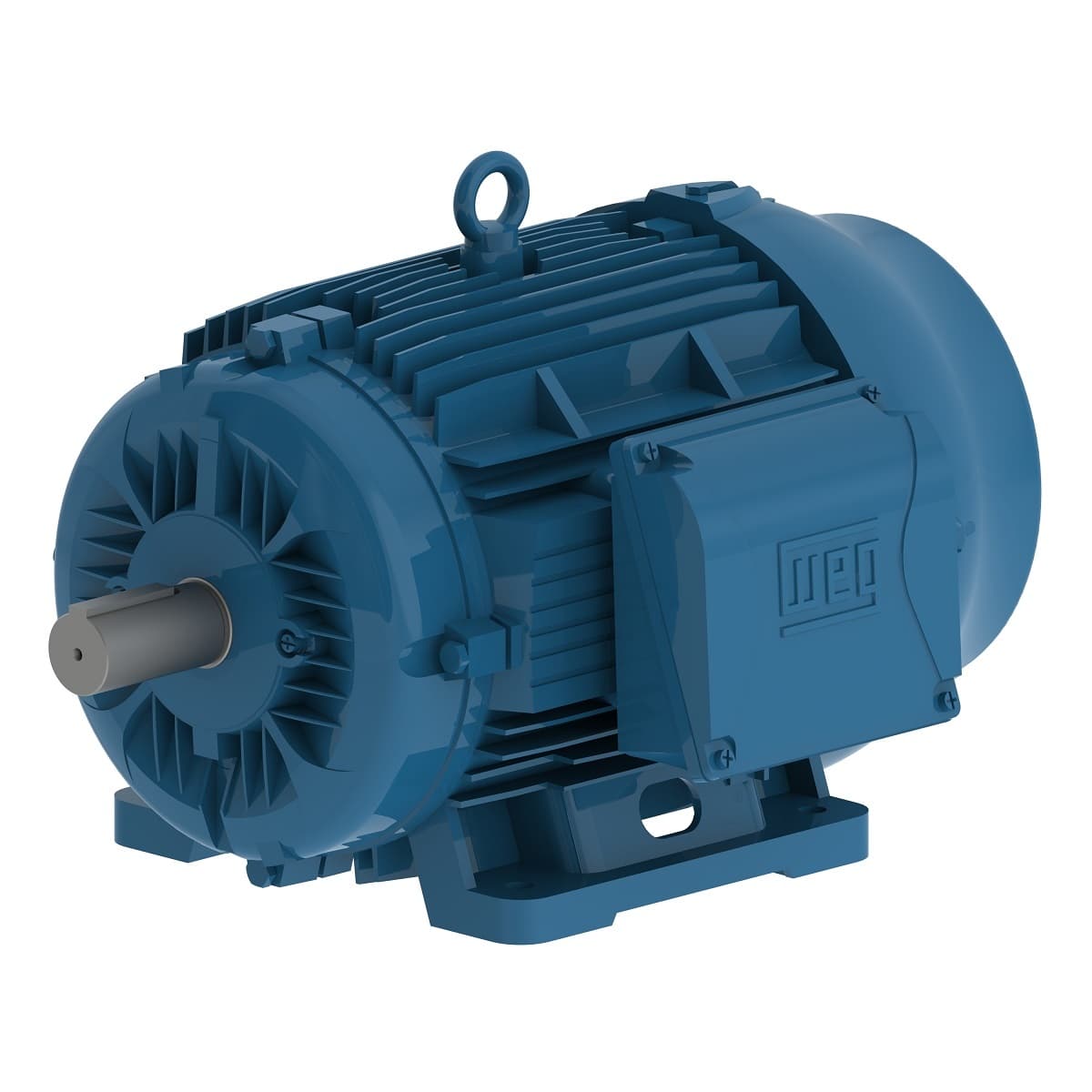

01536ET3Y160M-W22 WEG AC Motors
Part#:01536ET3Y160M-W22
Manufacturer:WEG
Alt. Part#:7891327437067
Product Lifecycle:Active
Get a quick Quote!
W22 Tru-Metric IE3 20 HP 2P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 01536ET3Y160M-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed2935 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Temperature rise 80 K
- Noise level² 67.0 dB(A)
- Output rating 20 HP
- Frequency 50 Hz
- Locked rotor torque 250 %
- Breakdown torque 310 %
- Mounting B3L(E)
- L. R. Amperes 197 A
- Rated torque 35.8 ft.lb
- Moment of inertia (J) 1.12 sq.ft.lb
- Rated speed 2935 rpm
- Number of Poles 2
- Frame 160M
- Slip 2.17 %
- LRC 7.0
- Insulation Class F
- Duty Cycle S1
- Degree of Protection IP55
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 301 lb
- Number of poles 2
- Output 20 HP (15 kW)
- Rated current 28.2 A
- No load current 9.10 A
- Locked rotor time 14s (cold) 8s (hot)
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Standard NEMA MG-1
- Synchronous speed 3600 rpm
- Terminal box¹ Right position
- Rated voltage 380 V
- Design N
- Enclosure IC411 - TEFC
- Voltage 460//380-415 V
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01536ET3Y160M-W22 Specs
1-year warranty
