01536OT3E215JP-S WEG AC Motors
Part#:01536OT3E215JP-S
Manufacturer:WEG
Alt. Part#:7909158551538
Product Lifecycle:Active
Get a quick Quote!

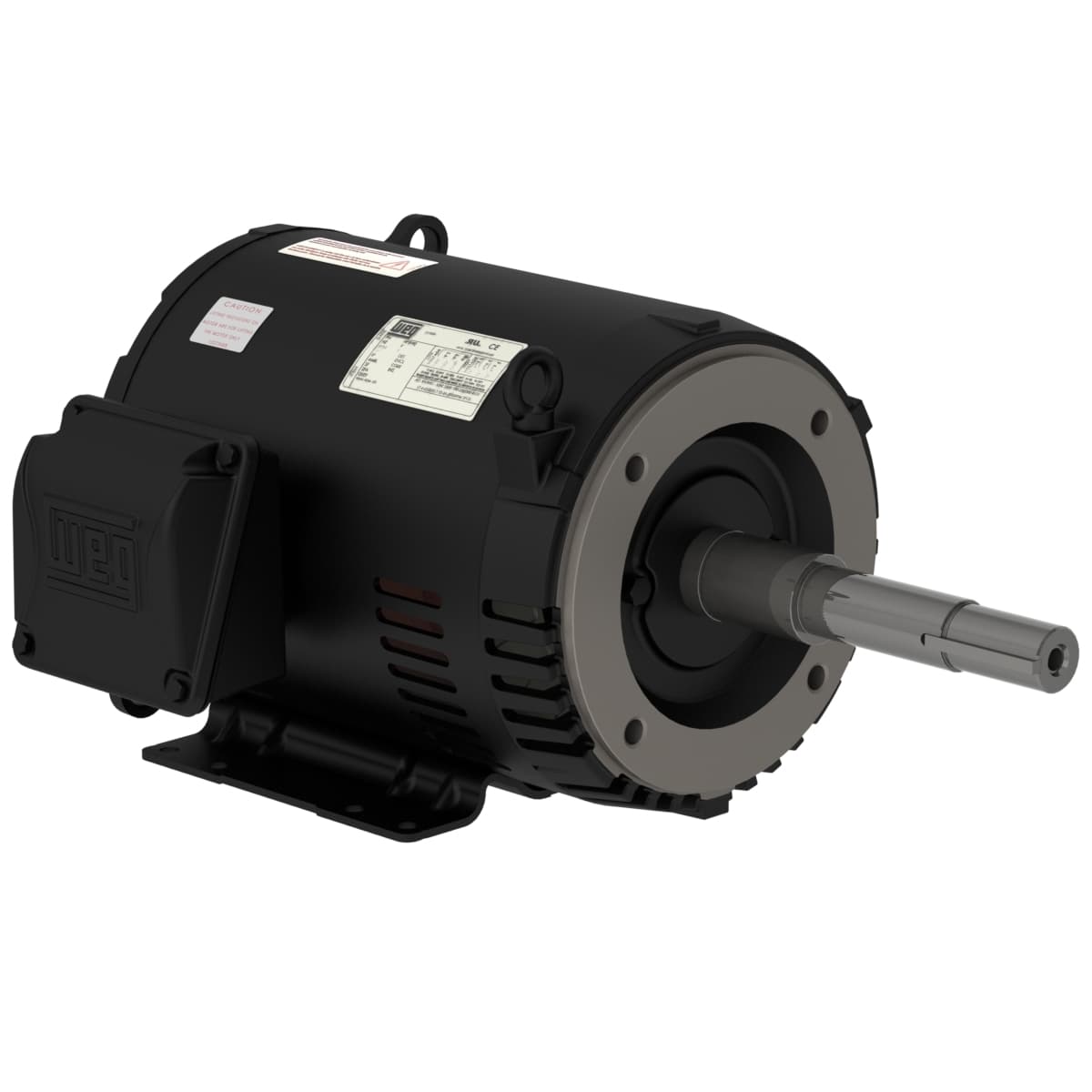

Rolled Steel JP Pump NEMA Premium Efficiency 15 HP 2P 213/5JP 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01536OT3E215JP-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 1.81 %
- Service factor 1.15
- Duty Cycle Cont.(S1)
- Number of poles 2
- Frame 213/5JP
- Insulation Class F
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Rated torque 22.3 ft.lb
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Rated speed 3535 rpm
- Moment of inertia (J) 0.5512 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Output rating 15 HP
- LRC 6.8x(Code G)
- Enclosure IC01 - ODP
- Approx. weight³ 144 lb
- Rated voltage 230/460 V
- No load current 12.3/6.17 A
- Temperature rise 80 K
- Flange C
- Number of Poles 2
- Breakdown torque 280 %
- Mounting F-1
- Output 15 HP (11 kW)
- Locked rotor time 14s (cold) 8s (hot)
- Terminal box¹ Left position
- Rated current 34.4/17.2 A
- Design B
- Starting Method Direct On Line
- Voltage 230/460//190-220/380-415 V
- L. R. Amperes 234/117 A
- Locked rotor torque 210 %
- Standard NEMA MG-1
- Noise level² 66.0 dB(A)
