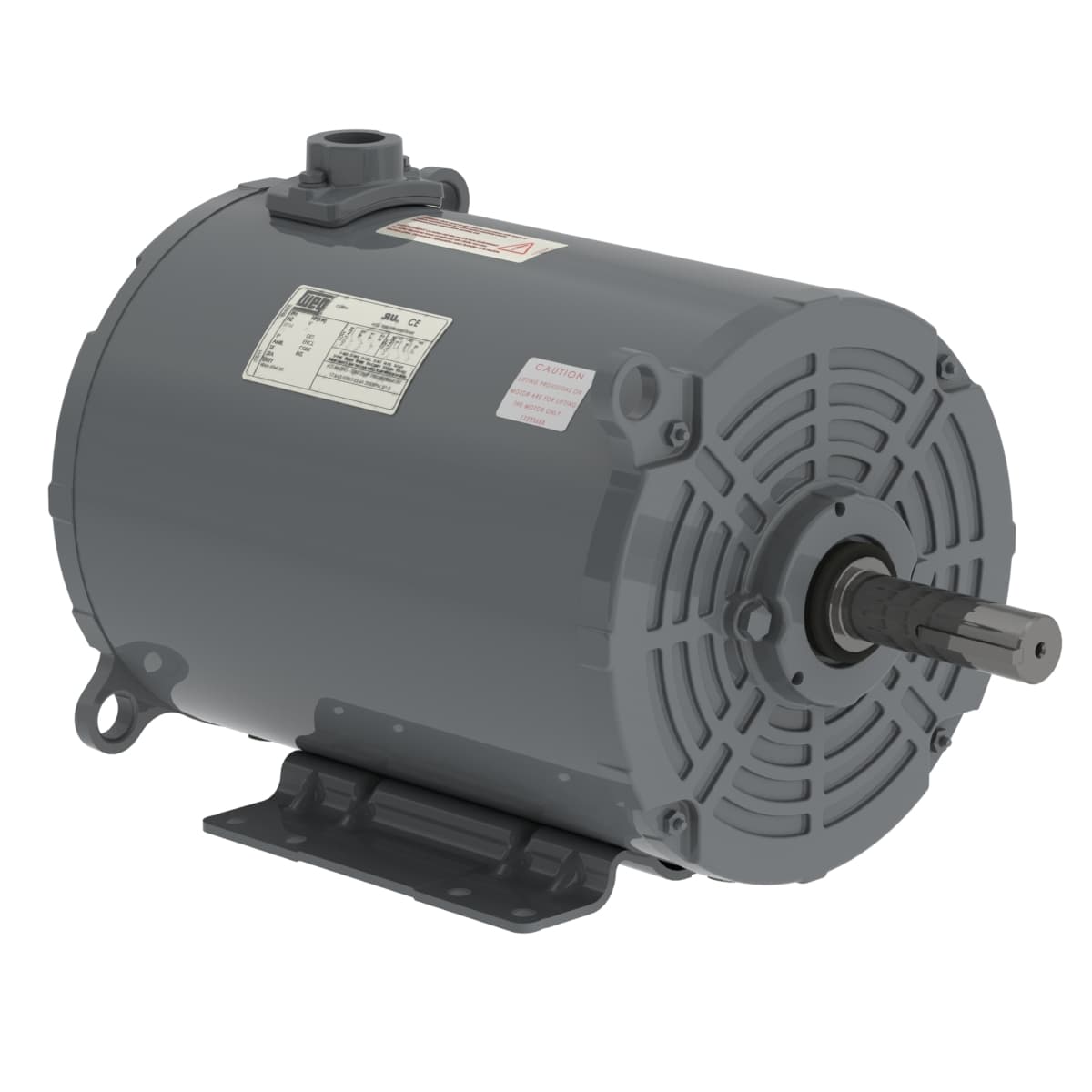

01536AP3EGD215TZ-S WEG AC Motors
Part#:01536AP3EGD215TZ-S
Manufacturer:WEG
Alt. Part#:7909322653884
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel Grain Dryer Standard Efficiency 10-15 HP 2P 213/5TZ 3Ph 208-230/460 V 60 Hz IC418 - TEAO - Foot-mounted
Check out the 01536AP3EGD215TZ-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating45580 HP
- Rated Speed3550 rpm
- Number of Poles2 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Rated speed 3550 rpm
- Temperature rise 105 K
- Approx. weight³ 139 lb
- Number of Poles 2
- Rated torque 14.8 ft.lb
- Enclosure IC418 - TEAO
- Output rating 10-15 HP
- Rated current 27.0-24.4/12.2 A
- Insulation Class F
- Mounting F-3
- Output 10 HP (7.5 kW)
- Locked rotor torque 350 %
- Duty Cycle Cont.(S1)
- Noise level² 70.0 dB(A)
- Frequency 60 Hz
- Breakdown torque 459 %
- Starting Method Direct On Line
- Voltage 208-230/460 V
- Flange Without
- Slip 1.39 %
- LRC 7.3x(Code H)
- Rotation¹ CCW
- No load current 13.7-12.4/6.20 A
- Locked rotor time 12s (cold) 7s (hot)
- Altitude 1000 m.a.s.l.
- Frame 213/5TZ
- Moment of inertia (J) 0.6787 sq.ft.lb
- Degree of Protection IP55
- Number of poles 2
- Rated voltage 208-230/460 V
- Service factor 1.00
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- L. R. Amperes 197-178/89.1 A
- Design B
- Standard NEMA MG-1
- Terminal box¹ Top
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 01536AP3EGD215TZ-S Specs
