01536OT3H215JM-SG WEG AC Motors
Part#:01536OT3H215JM-SG
Manufacturer:WEG
Alt. Part#:7899058014618
Product Lifecycle:Active
Get a quick Quote!

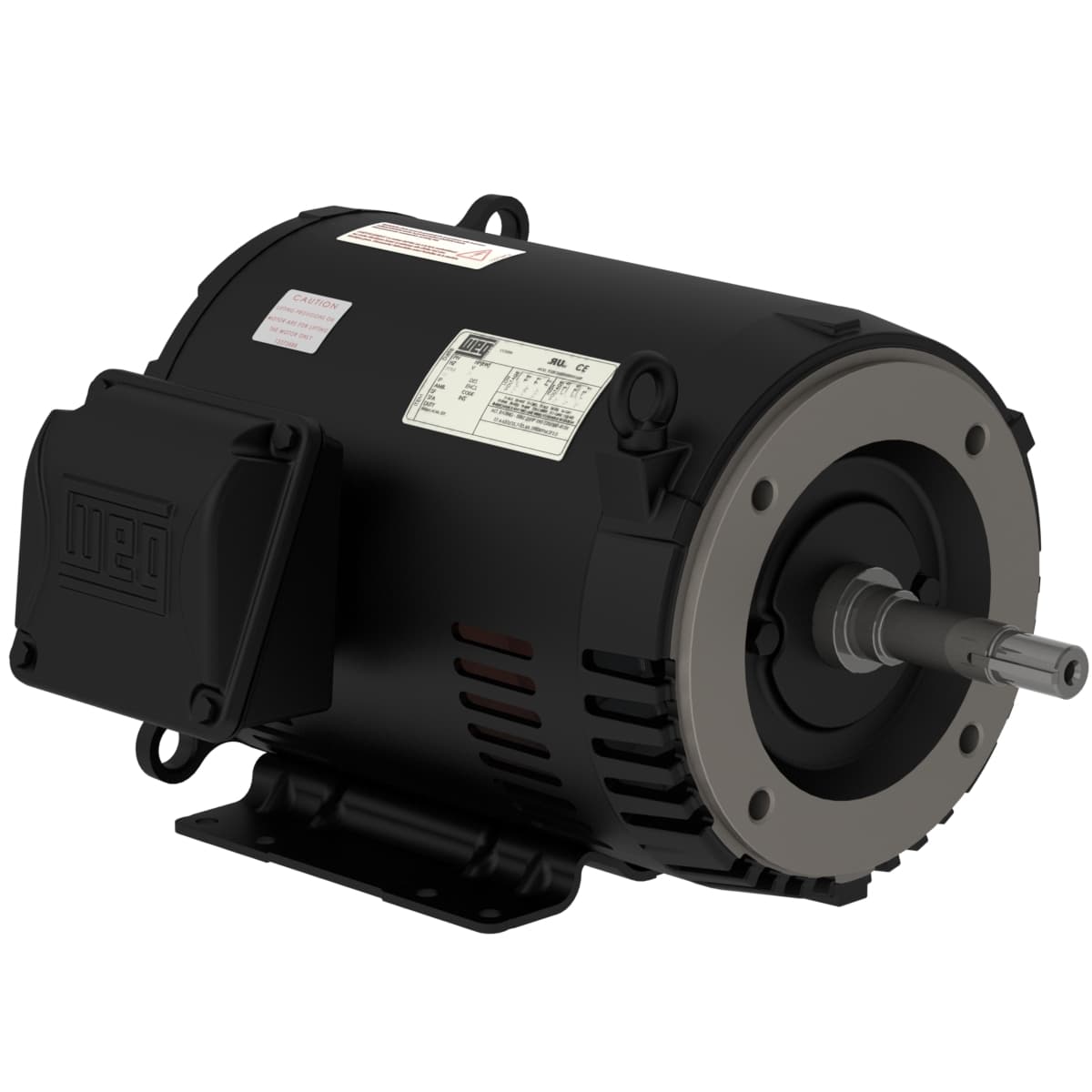

Rolled Steel JM Pump NEMA Premium Efficiency 15 HP 2P 213/5JM 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 01536OT3H215JM-SG WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Output 15 HP (11 kW)
- Service factor 1.15
- Noise level² 66.0 dB(A)
- Rated current 13.8 A
- Rated torque 22.3 ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 15 HP
- L. R. Amperes 93.6 A
- Moment of inertia (J) 0.5512 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated voltage 575 V
- Design B
- Rotation¹ Both (CW and CCW)
- Rated speed 3535 rpm
- Locked rotor time 14s (cold) 8s (hot)
- Mounting F-1
- Flange C
- Frequency 60 Hz
- Insulation Class F
- Enclosure IC01 - ODP
- Number of poles 2
- Breakdown torque 280 %
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Frame 213/5JM
- LRC 6.8x(Code G)
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Slip 1.81 %
- No load current 4.93 A
- Starting Method Direct On Line
- Terminal box¹ Left position
- Number of Poles 2
- Locked rotor torque 210 %
- Approx. weight³ 131 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
