01536ET3EHWR215TC-S WEG AC Motors
Part#:01536ET3EHWR215TC-S
Manufacturer:WEG
Alt. Part#:7909712021705
Product Lifecycle:Active
Get a quick Quote!

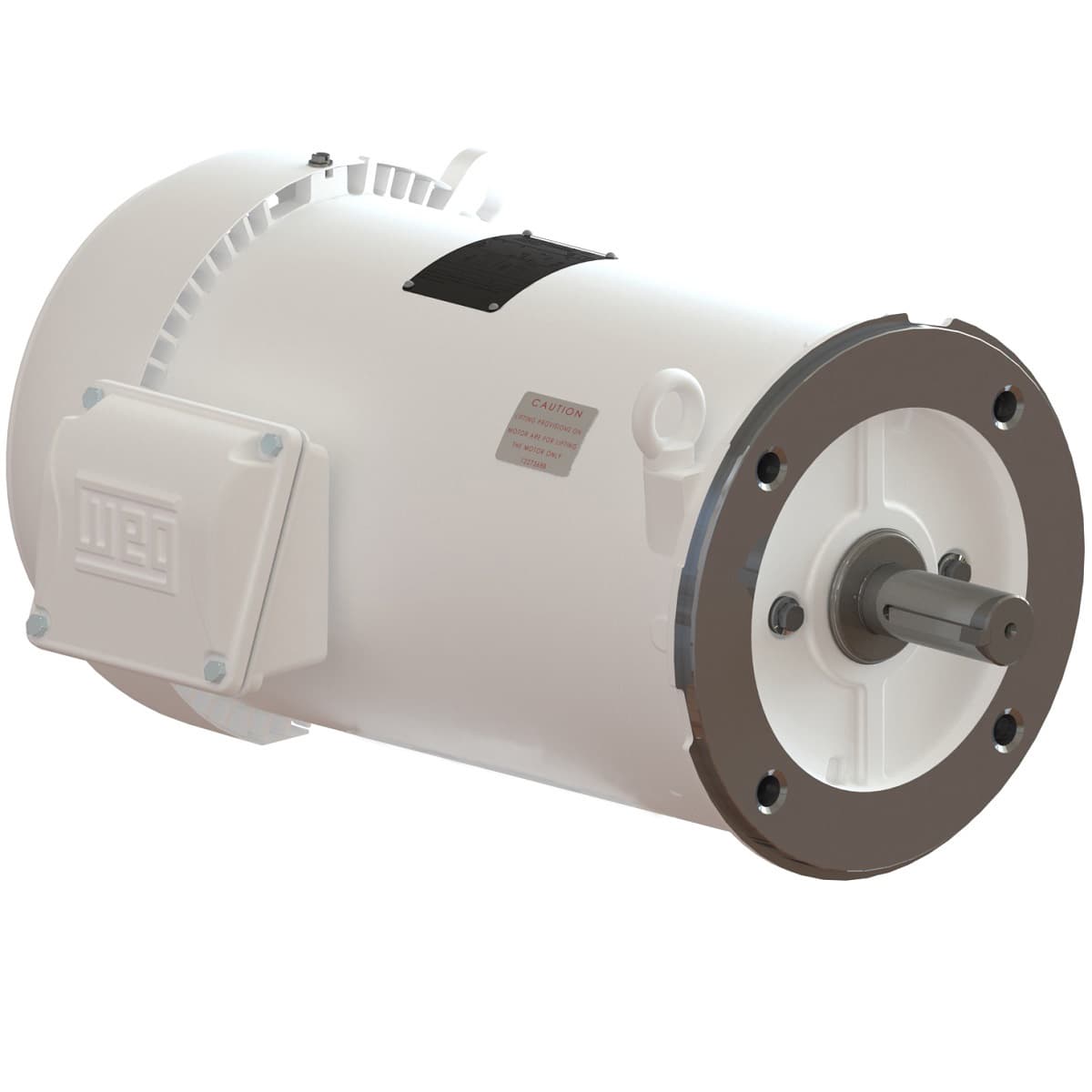

Rolled Steel Wash Down NEMA Premium Efficiency 15 HP 2P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 01536ET3EHWR215TC-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating15 HP
- Rated Speed3535 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Rated voltage 230/460 V
- Temperature rise 80 K
- Output rating 15 HP
- Output 15 HP (11 kW)
- Locked rotor time 12s (cold) 7s (hot)
- Ambient temperature -20°C to +40°C
- Voltage 230/460//190-220/380-415 V
- Frequency 60 Hz
- No load current 12.4/6.20 A
- Moment of inertia (J) 0.6341 sq.ft.lb
- Approx. weight³ 172 lb
- Rated current 34.0/17.0 A
- Breakdown torque 330 %
- Noise level² 70.0 dB(A)
- Flange C
- Slip 1.81 %
- Design A
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated speed 3535 rpm
- Rated torque 22.3 ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Frame 213/5TC
- LRC 8.2x(Code J)
- Locked rotor torque 280 %
- Duty Cycle Cont.(S1)
- Mounting F-1
- Degree of Protection IP56
- Number of poles 2
- Number of Poles 2
- L. R. Amperes 279/139 A
- Insulation Class F
- Starting Method Direct On Line
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
