00158OT1B56CFL-S WEG AC Motors
Part#:00158OT1B56CFL-S
Manufacturer:WEG
Alt. Part#:7909265269951
Product Lifecycle:Active
Get a quick Quote!

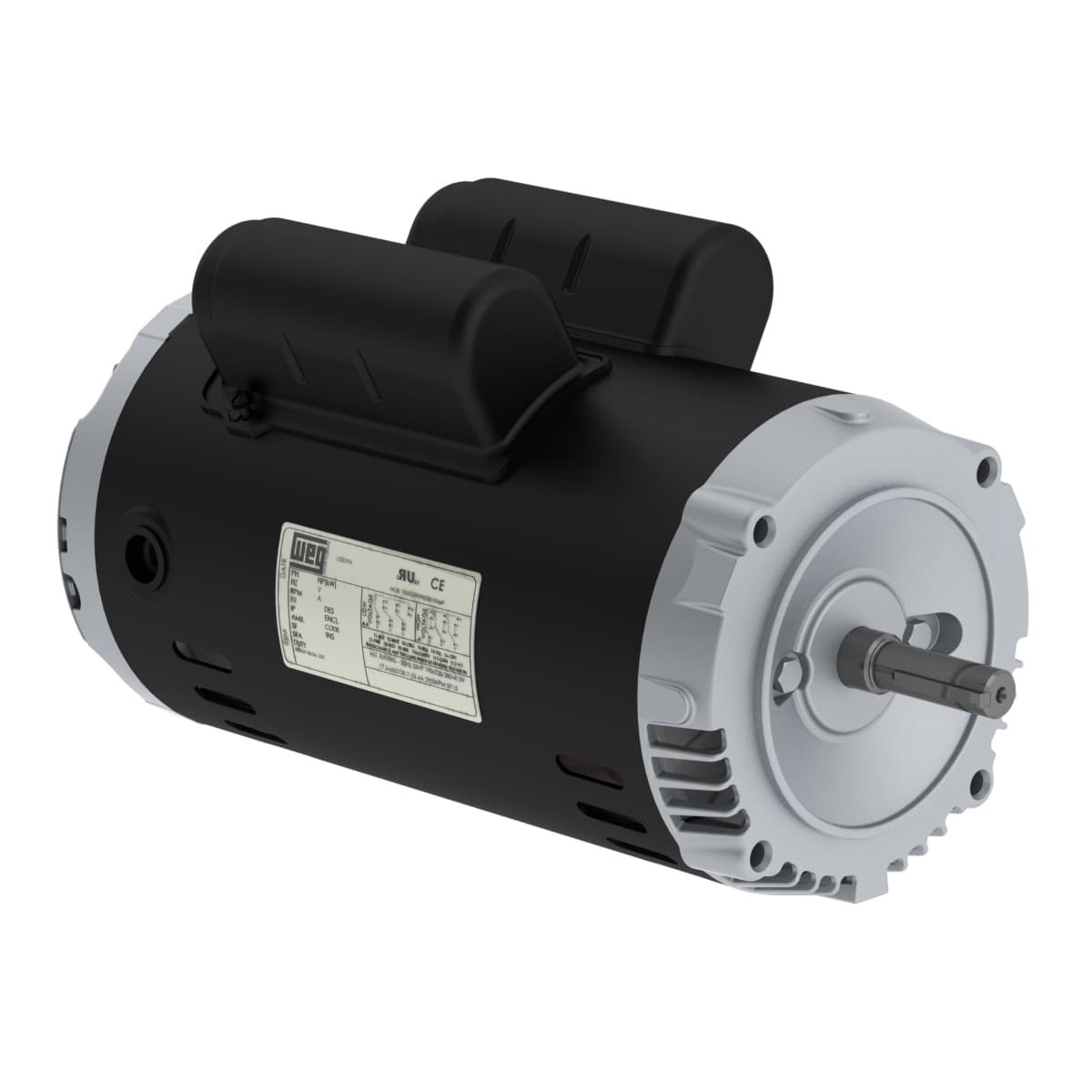

Rolled Steel 1.5 HP 4P 56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless
Check out the 00158OT1B56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed1740 rpm
- Number of Poles4 Pole
- Voltage115/208-230 V
- Flange TypeC
- Rated speed 1740 rpm
- Moment of inertia (J) 0.1362 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Without Terminal Box
- Frame 56C
- Rated torque 4.53 ft.lb
- Enclosure IC01 - ODP
- Flange C
- Rated voltage 115/208-230 V
- Locked rotor time 39s (cold) 22s (hot)
- Altitude 1000 m.a.s.l.
- Output rating 1.5 HP
- Number of Poles 4
- Locked rotor torque 320 %
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Breakdown torque 229 %
- Ambient temperature -20°C to +40°C
- Voltage 115/208-230 V
- Output 1.5 HP (1.1 kW)
- Rated current 13.0/7.52-6.49 A
- Service factor 1.15 (1.00 @ 208V)
- Approx. weight³ 44.9 lb
- L. R. Amperes 105/60.9-52.6 A
- Starting Method Direct On Line
- Noise level² 52.0 dB(A)
- Slip 3.33 %
- Design L
- Number of poles 4
- LRC 8.1x(Code K)
- Insulation Class F
- Mounting F-1
- No load current 4.90/2.11-2.45 A
- Temperature rise 80 K
- Synchronous speed 1800 rpm
