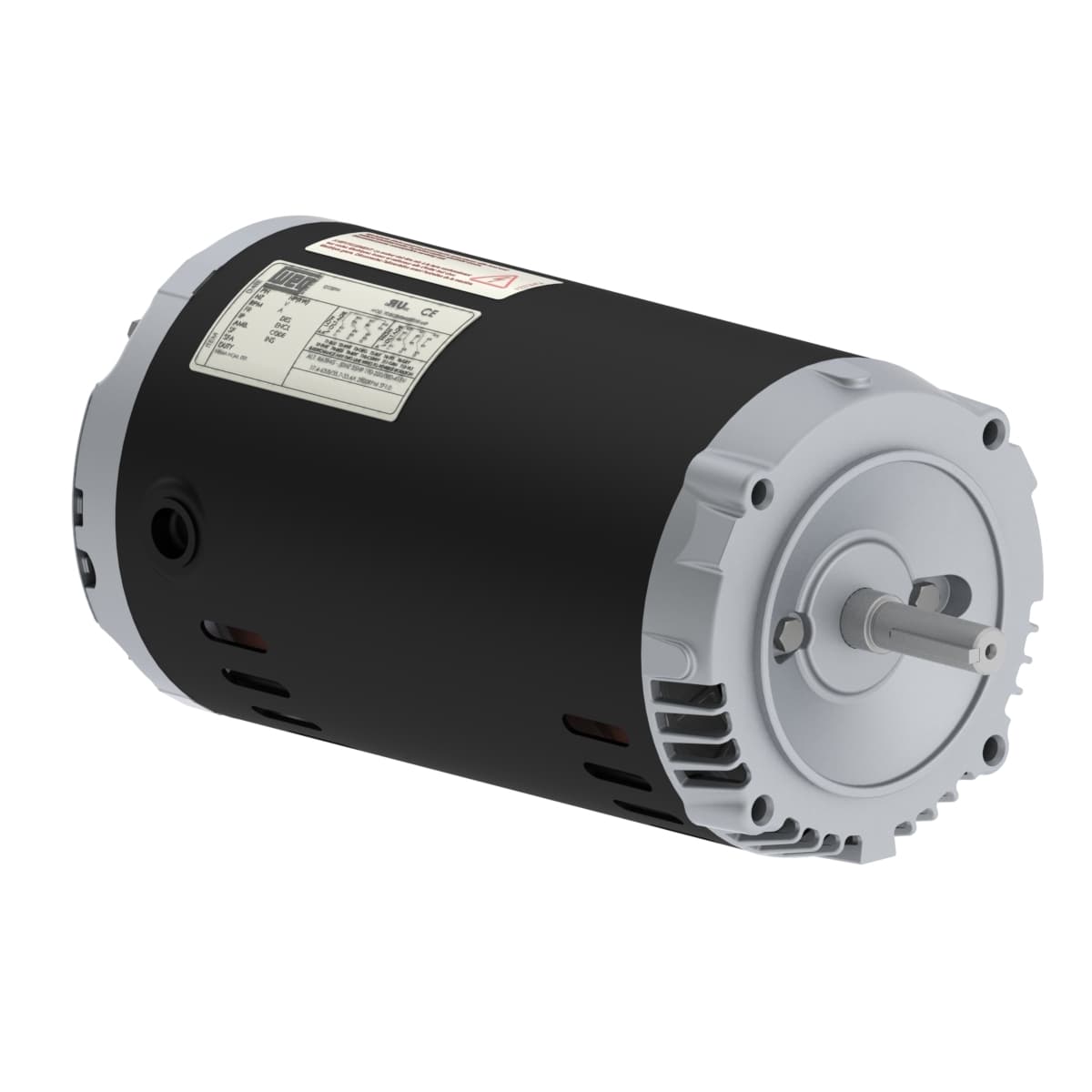

00156OT3E56CFL-S WEG AC Motors
Part#:00156OT3E56CFL-S
Manufacturer:WEG
Alt. Part#:7909158821884
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel Premium Efficiency 1.5 HP 2P 56C 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless
Check out the 00156OT3E56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed3510 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Slip 2.50 %
- Duty Cycle Cont.(S1)
- Design A
- Frame 56C
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Noise level² 62.0 dB(A)
- Rated current 3.70/1.85 A
- Rated torque 2.24 ft.lb
- Moment of inertia (J) 0.0835 sq.ft.lb
- Voltage 230/460//190-220/380-415 V
- LRC 8.6x(Code K)
- Approx. weight³ 27.2 lb
- L. R. Amperes 31.8/15.9 A
- Starting Method Direct On Line
- Standard NEMA MG-1
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Breakdown torque 330 %
- Mounting F-1
- Number of poles 2
- Rated speed 3510 rpm
- Locked rotor time 36s (cold) 20s (hot)
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Insulation Class F
- Output rating 1.5 HP
- Rated voltage 230/460 V
- Locked rotor torque 210 %
- Service factor 1.15 (1.00 @ 208V)
- Temperature rise 80 K
- Flange C
- Output 1.5 HP (1.1 kW)
- No load current 1.62/0.809 A
- Enclosure IC01 - ODP
- Terminal box¹ Without Terminal Box
