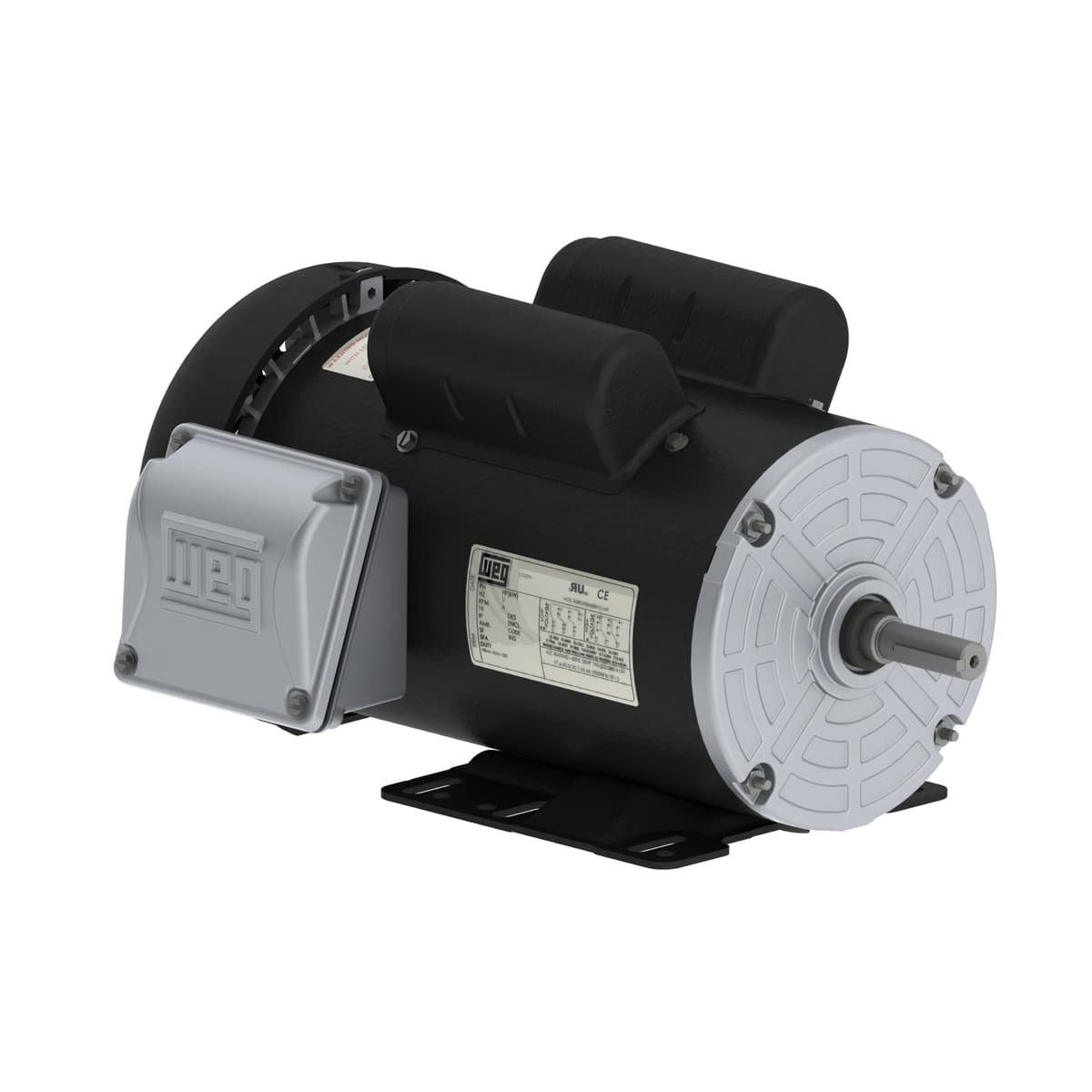

00158ES1B56-S WEG AC Motors
Part#:00158ES1B56-S
Manufacturer:WEG
Alt. Part#:7909522525899
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel 1.5 HP 4P 56H 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00158ES1B56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed1745 rpm
- Number of Poles4 Pole
- Voltage115/208-230 V
- Flange TypeWithout
- Number of Poles 4
- Temperature rise 80 K
- Standard NEMA MG-1
- Terminal box¹ Left position
- L. R. Amperes 120/66.2-59.8 A
- Moment of inertia (J) 0.1426 sq.ft.lb
- Noise level² 54.0 dB(A)
- Output rating 1.5 HP
- LRC 8.0x(Code L)
- Service factor 1.15 (1.00 @ 208V)
- Synchronous speed 1800 rpm
- Rated speed 1745 rpm
- No load current 8.60/3.71-4.30 A
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Slip 3.06 %
- Locked rotor time 14s (cold) 8s (hot)
- Altitude 1000 m.a.s.l.
- Insulation Class F
- Rated voltage 115/208-230 V
- Duty Cycle Cont.(S1)
- Approx. weight³ 47.8 lb
- Frequency 60 Hz
- Locked rotor torque 250 %
- Ambient temperature -20°C to +40°C
- Frame 56H
- Breakdown torque 270 %
- Starting Method Direct On Line
- Voltage 115/208-230 V
- Rated current 15.0/8.27-7.48 A
- Design L
- Enclosure IC411 - TEFC
- Flange Without
- Output 1.5 HP (1.1 kW)
- Rated torque 4.51 ft.lb
- Degree of Protection IP55
- Number of poles 4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
