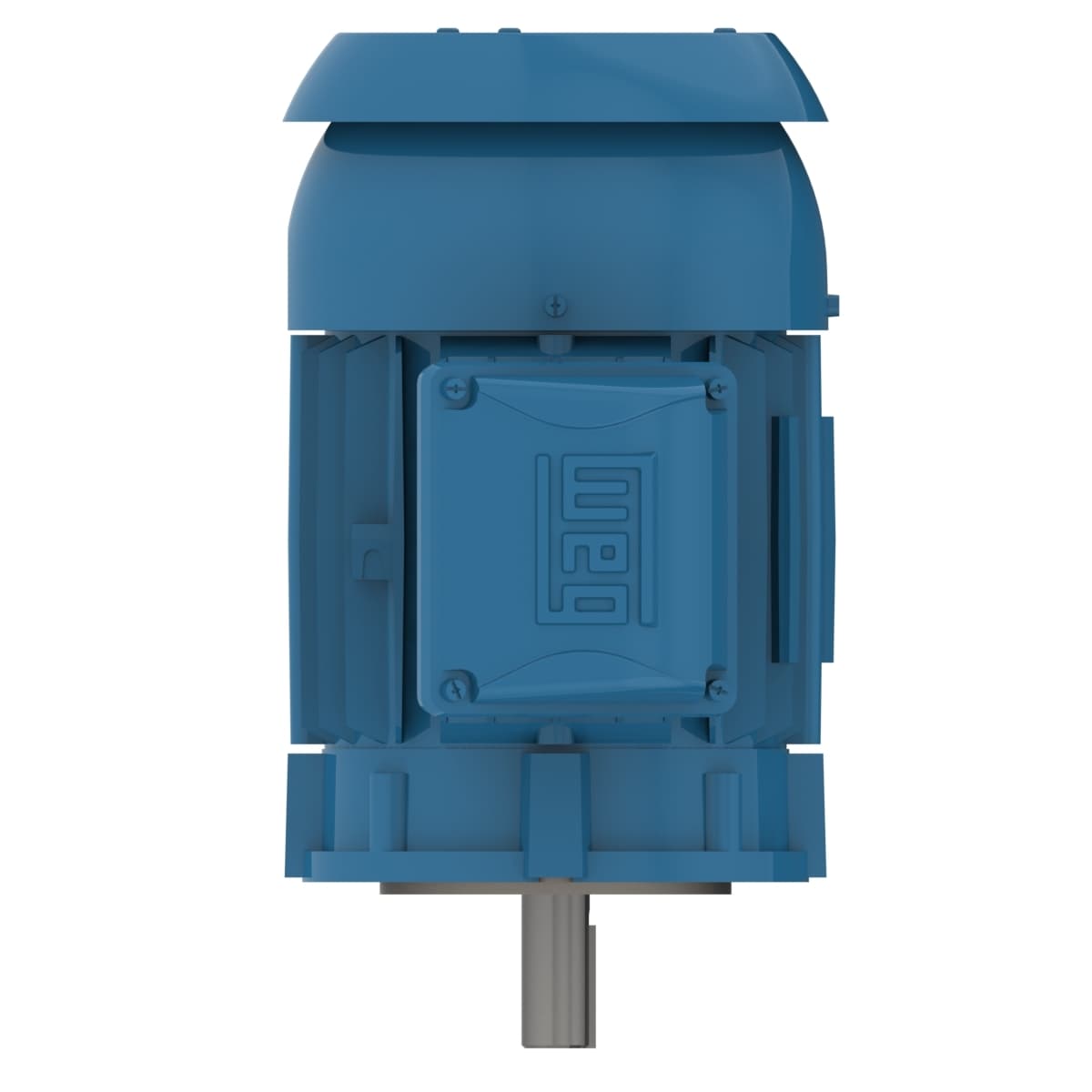

00158ET3ER145TC-W22 WEG AC Motors
Part#:00158ET3ER145TC-W22
Manufacturer:WEG
Alt. Part#:7909018759807
Product Lifecycle:Active
In-stock parts: 3
Jun 19, 2025
W22 NEMA Premium Efficiency 1.5 HP 4P 145TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Check out the 00158ET3ER145TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed1755 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- Moment of inertia (J) 0.1431 sq.ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 50.9 lb
- Rated voltage 230/460 V
- Insulation Class F
- Mounting W-6
- L. R. Amperes 33.9/17.0 A
- Rated speed 1755 rpm
- LRC 8.4x(Code L)
- Starting Method Direct On Line
- Number of Poles 4
- Output 1.5 HP (1.1 kW)
- Rated current 4.04/2.02 A
- Frequency 60 Hz
- Locked rotor torque 290 %
- Ambient temperature -20°C to +40°C
- Terminal box¹ Left position
- Slip 2.50 %
- Breakdown torque 350 %
- Temperature rise 80 K
- Standard NEMA MG-1
- No load current 2.20/1.10 A
- Degree of Protection IP55
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Flange C
- Design B
- Synchronous speed 1800 rpm
- Output rating 1.5 HP
- Service factor 1.25
- Number of poles 4
- Rated torque 4.49 ft.lb
- Locked rotor time 25s (cold) 14s (hot)
- Frame 145TC
- Enclosure IC411 - TEFC
- Noise level² 51.0 dB(A)
- Voltage 230/460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00158ET3ER145TC-W22 Specs
1-year warranty
