00158ET3E145T-S WEG AC Motors
Part#:00158ET3E145T-S
Manufacturer:WEG
Alt. Part#:7909522795933
Product Lifecycle:Active
In-stock parts: 2
Jun 19, 2025

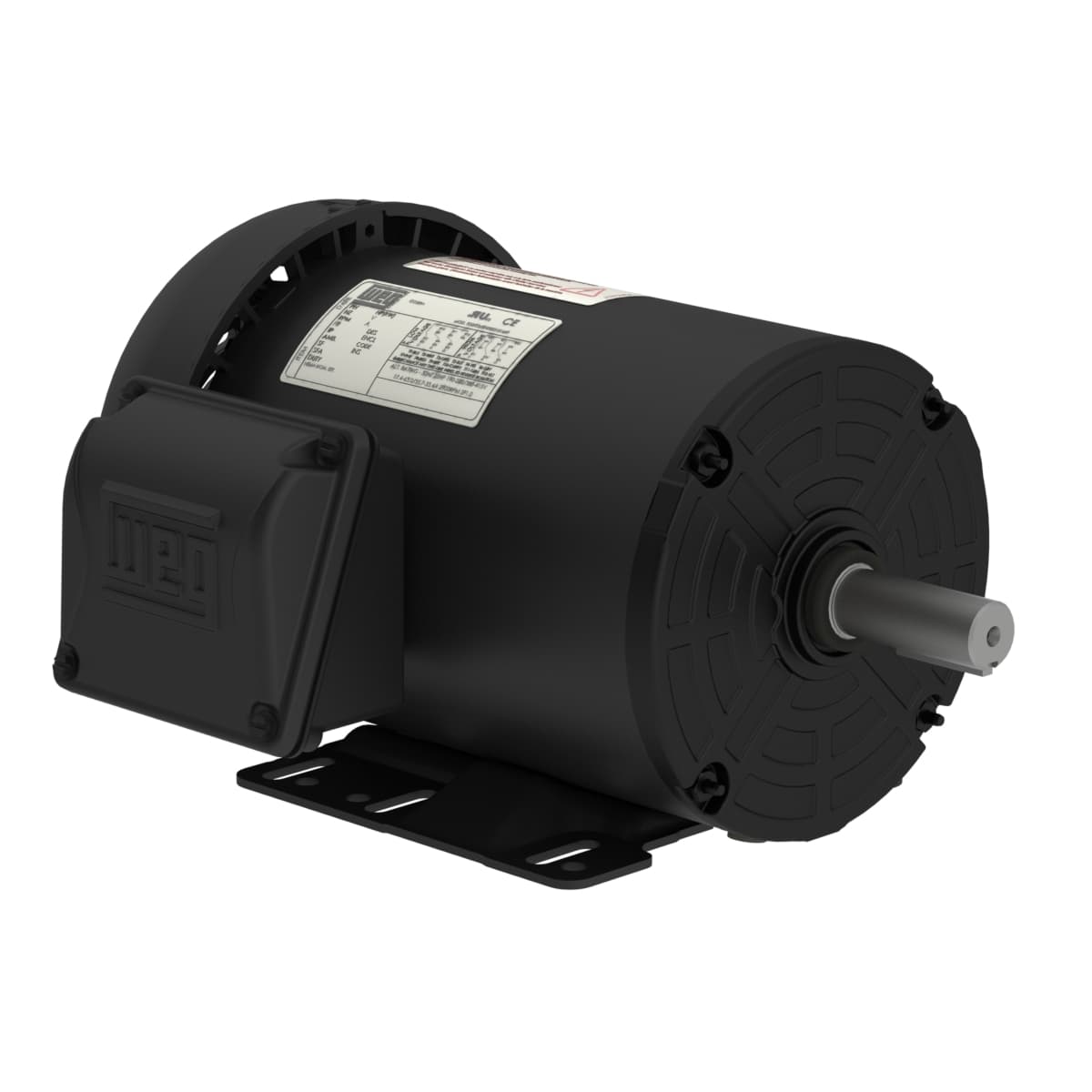

Rolled Steel NEMA Premium Efficiency 1.5 HP 4P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00158ET3E145T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed1750 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Rated current 4.04/2.02 A
- LRC 8.2x(Code K)
- Service factor 1.15 (1.00 @ 208V)
- Approx. weight³ 38.6 lb
- Slip 2.78 %
- Locked rotor time 37s (cold) 21s (hot)
- Starting Method Direct On Line
- Frame 143/5T
- Rated torque 4.50 ft.lb
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Breakdown torque 300 %
- Altitude 1000 m.a.s.l.
- Flange Without
- Number of Poles 4
- Rated voltage 230/460 V
- Locked rotor torque 270 %
- Design B
- Duty Cycle Cont.(S1)
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- Standard NEMA MG-1
- Frequency 60 Hz
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Voltage 230/460//190-220/380-415 V
- Rated speed 1750 rpm
- No load current 2.17/1.08 A
- Mounting F-1
- Output 1.5 HP (1.1 kW)
- Moment of inertia (J) 0.1101 sq.ft.lb
- Noise level² 52.0 dB(A)
- Number of poles 4
- L. R. Amperes 33.1/16.6 A
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Output rating 1.5 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00158ET3E145T-S Specs
This item can ship within 24h!
1-year warranty
$185.26
Stock:
2
Select Qty:
$185.26
$185.26 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of WEG
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
WEG Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many WEG Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from WEG, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
