00158ET3V145JM-W22 WEG AC Motors
Part#:00158ET3V145JM-W22
Manufacturer:WEG
Alt. Part#:7909158115495
Product Lifecycle:Active
Get a quick Quote!

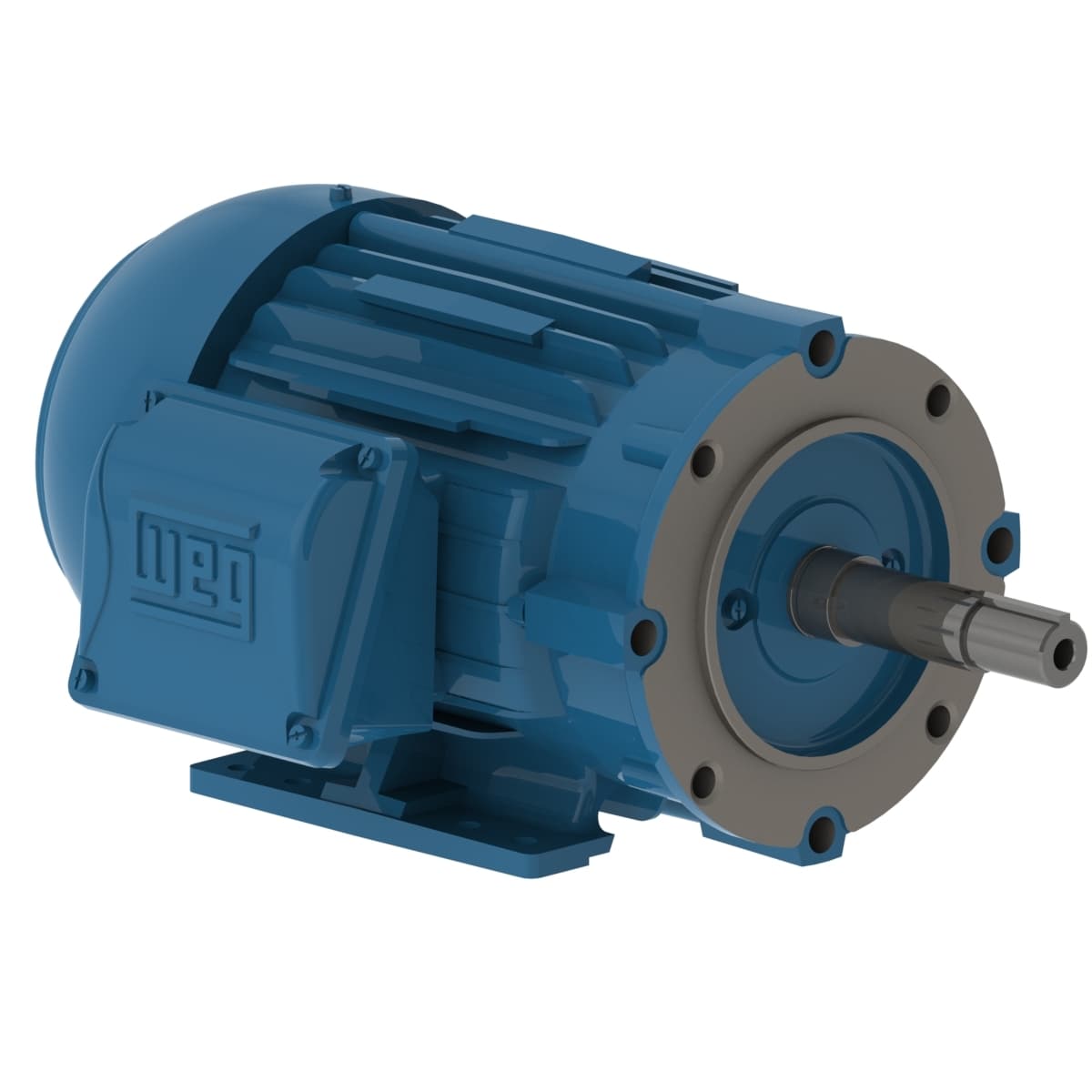

W22 Close Coupled Pump JM NEMA Premium Efficiency 1.5 HP 4P 143/5JM 3Ph 200/400 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00158ET3V145JM-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed1755 rpm
- Number of Poles4 Pole
- Voltage200/400 V
- Flange TypeC
- Rated voltage 200/400 V
- Rated torque 4.49 ft.lb
- Degree of Protection IP55
- Terminal box¹ Left position
- Number of Poles 4
- Locked rotor torque 290 %
- Altitude 1000 m.a.s.l.
- Output rating 1.5 HP
- Rated current 4.65/2.32 A
- Breakdown torque 350 %
- Ambient temperature -20°C to +40°C
- Voltage 200/400 V
- Rated speed 1755 rpm
- Insulation Class F
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- LRC 8.4x(Code L)
- Duty Cycle Cont.(S1)
- Flange C
- Frequency 60 Hz
- No load current 2.53/1.27 A
- Temperature rise 80 K
- Noise level² 51.0 dB(A)
- L. R. Amperes 39.0/19.5 A
- Service factor 1.25
- Mounting F-1
- Frame 143/5JM
- Locked rotor time 25s (cold) 14s (hot)
- Standard NEMA MG-1
- Slip 2.50 %
- Design B
- Rotation¹ Both (CW and CCW)
- Number of poles 4
- Output 1.5 HP (1.1 kW)
- Moment of inertia (J) 0.1431 sq.ft.lb
- Starting Method Direct On Line
- Approx. weight³ 54.2 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00158ET3V145JM-W22 Specs
