00158AS1BPF56-S WEG AC Motors
Part#:00158AS1BPF56-S
Manufacturer:WEG
Alt. Part#:7909522718598
Product Lifecycle:Active
Get a quick Quote!

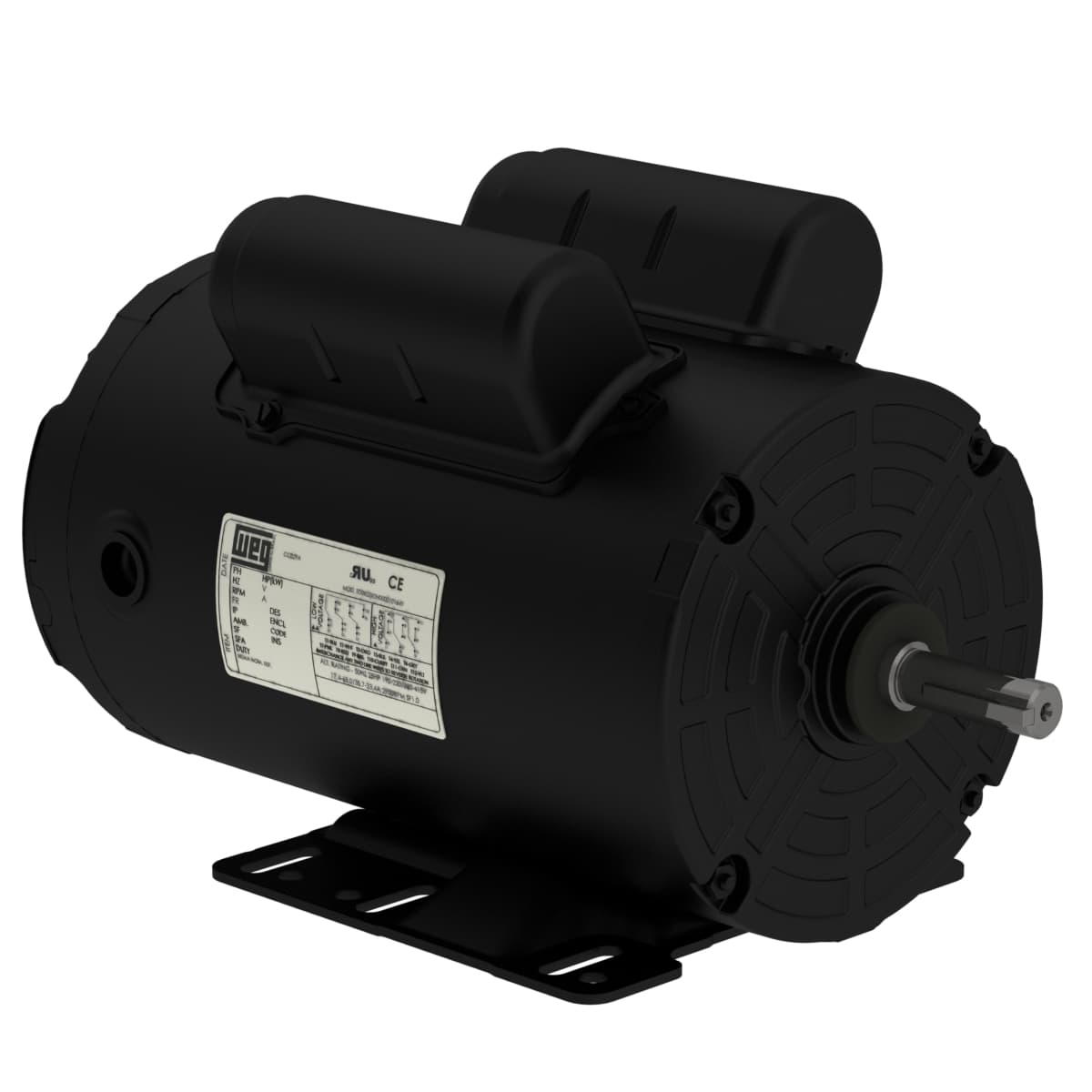

Rolled Steel 1.5 HP 4P 56 1Ph 115/208-230 V 60 Hz IC418 - TEAO - Foot-mounted
Check out the 00158AS1BPF56-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed1730 rpm
- Number of Poles4 Pole
- Voltage115/208-230 V
- Flange TypeWithout
- Frame 56
- Design L
- Degree of Protection IP55
- Rated speed 1730 rpm
- LRC 7.0x(Code J)
- Duty Cycle Cont.(S1)
- Voltage 115/208-230 V
- Flange Without
- Rated current 14.1/7.50-7.03 A
- Breakdown torque 260 %
- Standard NEMA MG-1
- Slip 3.89 %
- Moment of inertia (J) 0.0046 kgm²
- Enclosure IC418 - TEAO
- Output rating 1.5 HP
- Frequency 60 Hz
- Temperature rise 105 K
- Altitude 1000 m.a.s.l.
- Number of Poles 4
- Service factor 1.15
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Output 1.5 HP (1.1 kW)
- Insulation Class F
- Starting Method Direct On Line
- Number of poles 4
- No load current 7.00/2.65-3.50 A
- Locked rotor torque 260 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Without Terminal Box
- L. R. Amperes 98.7/52.5-49.2 A
- Rated torque 0.629 kgfm
- Approx. weight³ 23.7 kg
- Rated voltage 115/208-230 V
- Locked rotor time 21s (cold) 12s (hot)
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00158AS1BPF56-S Specs
