00156ET3H56C-S WEG AC Motors
Part#:00156ET3H56C-S
Manufacturer:WEG
Product Lifecycle:Active
Get a quick Quote!

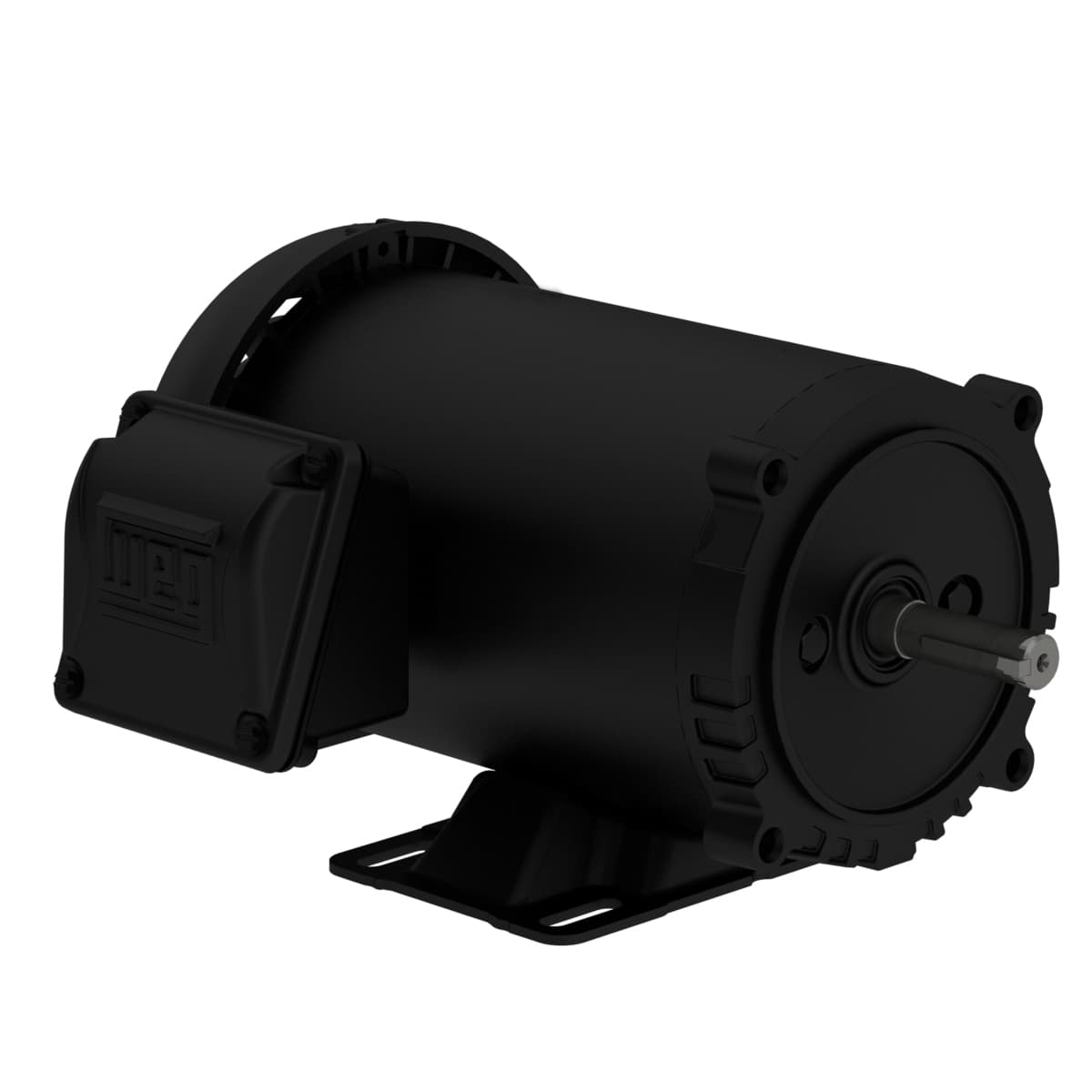

Rolled Steel Premium Efficiency 1.5 HP 2P 56C 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00156ET3H56C-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed3520 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Frequency 60 Hz
- Rated torque 2.24 ft.lb
- Temperature rise 80 K
- Voltage 575 V
- Slip 2.22 %
- Output 1.5 HP (1.1 kW)
- Design B
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Frame 56C
- Insulation Class F
- Enclosure IC411 - TEFC
- Number of poles 2
- Rated voltage 575 V
- LRC 9.1x(Code L)
- Noise level² 68.0 dB(A)
- Standard NEMA MG-1
- L. R. Amperes 13.6 A
- Service factor 1.15
- Mounting F-1
- Terminal box¹ Left position
- Rated speed 3520 rpm
- Locked rotor time 30s (cold) 17s (hot)
- Altitude 1000 m.a.s.l.
- Locked rotor torque 229 %
- Starting Method Direct On Line
- Approx. weight³ 33.4 lb
- Rated current 1.50 A
- No load current 0.687 A
- Ambient temperature -20°C to +40°C
- Output rating 1.5 HP
- Number of Poles 2
- Breakdown torque 300 %
- Rotation¹ Both (CW and CCW)
- Moment of inertia (J) 0.1023 sq.ft.lb
- Duty Cycle Cont.(S1)
- Flange C
