00156ET3H143T-W22G WEG AC Motors
Part#:00156ET3H143T-W22G
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

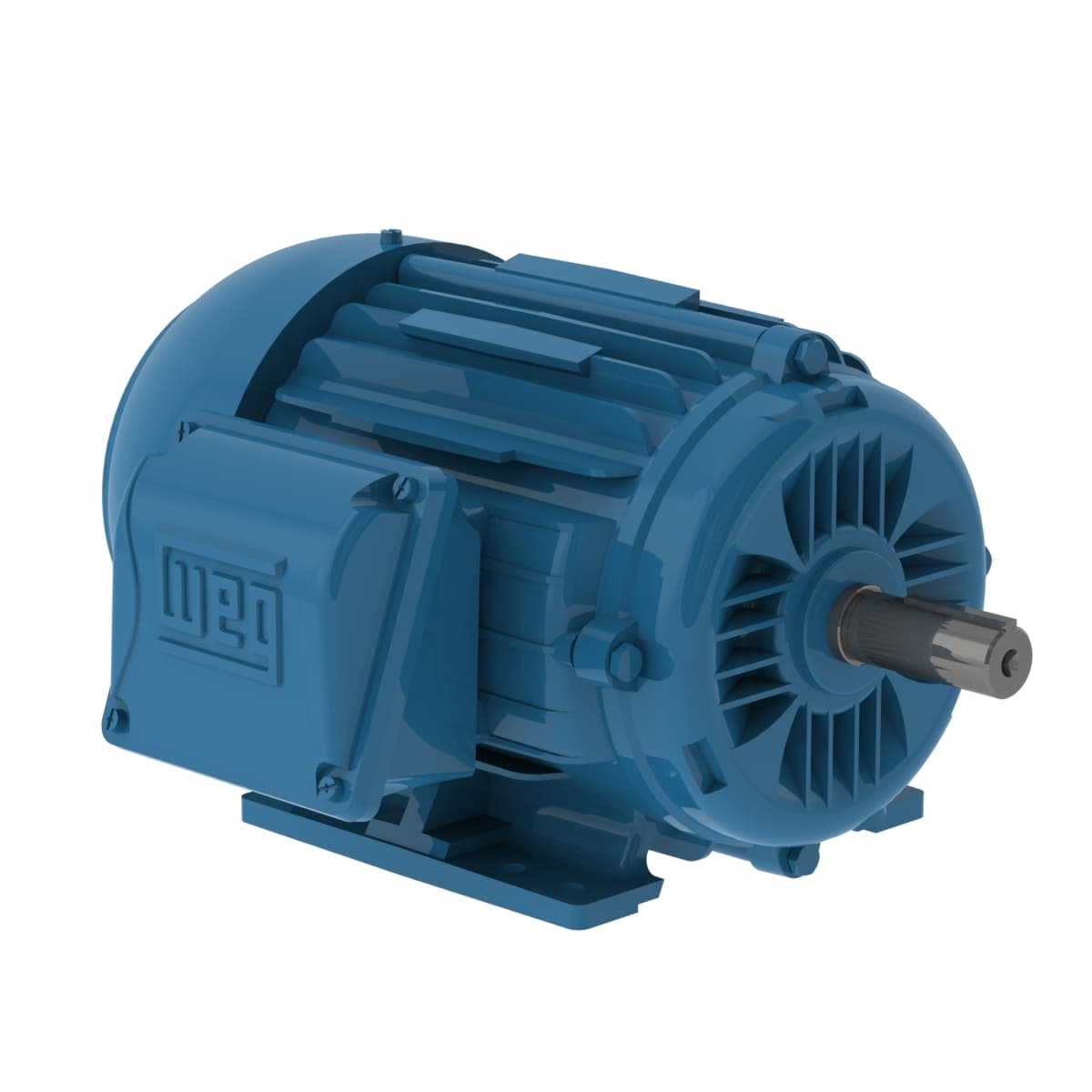

W22 NEMA Premium Efficiency 1.5 HP 2P 143/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00156ET3H143T-W22G WEG price in the box on the right side or send a quick quote.
Product Details
- Output 1.5 HP (1.1 kW)
- Design B
- Enclosure IC411 - TEFC
- Frame 143/5T
- Rated voltage 575 V
- Rated torque 2.26 ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 2
- LRC 8.9x(Code L)
- Rated current 1.57 A
- Mounting F-1
- Terminal box¹ Left position
- Locked rotor torque 310 %
- No load current 0.664 A
- Noise level² 68.0 dB(A)
- Frequency 60 Hz
- Breakdown torque 370 %
- Starting Method Direct On Line
- Approx. weight³ 40.8 lb
- Flange Without
- Service factor 1.25
- Degree of Protection IP55
- Output rating 1.5 HP
- Rated speed 3480 rpm
- Locked rotor time 37s (cold) 21s (hot)
- Standard NEMA MG-1
- Number of Poles 2
- Moment of inertia (J) 0.0470 sq.ft.lb
- L. R. Amperes 14.0 A
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- Slip 3.33 %
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
