00156ES1E143JM-W22 WEG AC Motors
Part#:00156ES1E143JM-W22
Manufacturer:WEG
Alt. Part#:7909323439746
Product Lifecycle:Active
Get a quick Quote!

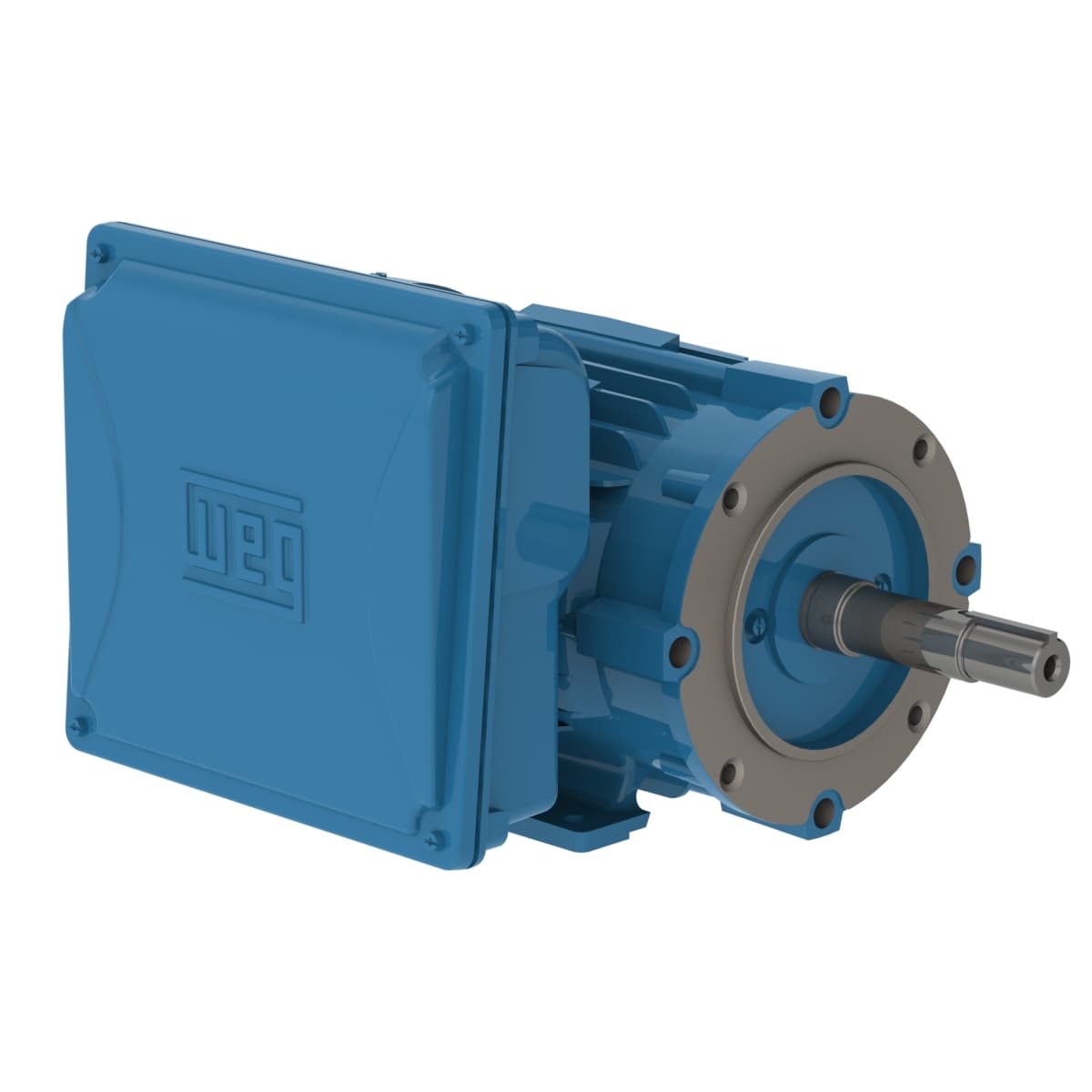

W22 JM Pump 1.5 HP 2P 143/5JM 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00156ES1E143JM-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating1.5 HP
- Rated Speed3520 rpm
- Number of Poles2 Pole
- Voltage208-230/460 V
- Flange TypeC
- Frame 143/5JM
- Duty Cycle Cont.(S1)
- Mounting F-1
- Number of Poles 2
- Locked rotor torque 229 %
- Voltage 208-230/460 V
- Rated voltage 208-230/460 V
- Moment of inertia (J) 0.0470 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Slip 2.22 %
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Number of poles 2
- LRC 7.3x(Code J)
- Service factor 1.15 (1.00 @ 208V)
- Approx. weight³ 61.8 lb
- Flange C
- Frequency 60 Hz
- Breakdown torque 240 %
- Degree of Protection IP55
- Terminal box¹ Left position
- Rated speed 3520 rpm
- Insulation Class F
- Noise level² 69.0 dB(A)
- Output 1.5 HP (1.1 kW)
- Rated torque 2.24 ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- L. R. Amperes 53.3-49.6/24.8 A
- Locked rotor time 19s (cold) 11s (hot)
- Starting Method Direct On Line
- Output rating 1.5 HP
- Rated current 7.30-6.80/3.40 A
- No load current 1.81-2.10/1.05 A
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00156ES1E143JM-W22 Specs
